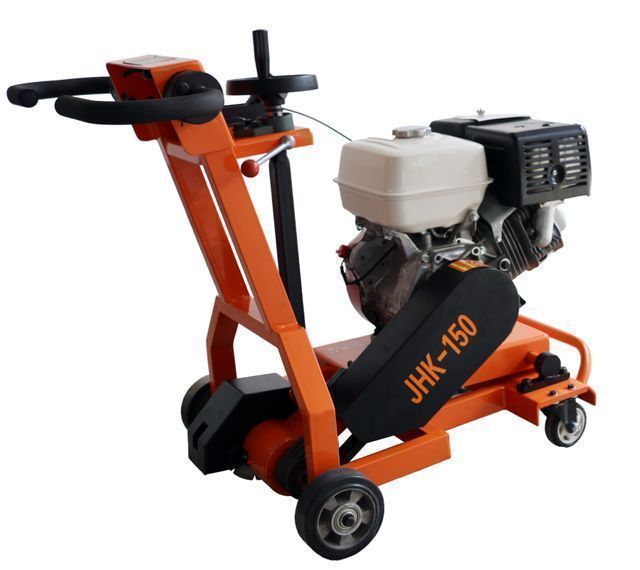

Asphalt Cement Gasoline Saw Road Grooving Concrete Cutting Machine
- 728.00 unit
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| color: | yellow or orange | Warranty: | 1 year and 12 months |
| Key words: | cheap road slotting machine made in china | weight: | 75KGS (165IBS), 75KGS |
| Supply capacity: | 1000pcs per month You can tell me the quantity directly. | After-sales service provided: | Video technical support, online support, overseas engineers come to service machinery |
| brand: | Jiehe | After-sales service: | available engineers |
| Power (watts): | 13 hp | Packaging Details: | Iron frame and carton shipping size (mm): 980 * 660 * 800 For asphalt cement Petrol saw Road surface Grooving Concrete cutting machine |
| strength: | 13 hp | Health status: | new |
| port: | Shanghai/Shandong/Qingdao/Guangdong/Beijing/Ningbo/Shenzhen | Voltage: | 380V,380V |
| Origin: | Jiangsu, China | payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Certification: | CE certification, CE certification | Working depth: | 0-50MM |
| Working width: | 8-10MM | Dimensions (L*W*H): | 980*660*800mm, 980*660*800 |
Product Description
application:
Our products are widely used in:
- Municipal Protection, Made in China Low Price Concrete Floor Grinder for Sale JHK150
- Road construction, made in China low price concrete floor grinder for sale JHK150
- Building construction, made in China low price concrete floor grinder for sale JHK150
- Floor treatment (epoxy floor, wear-resistant floor) made in China at a low price for sale Concrete floor grinder JHK150
- Other areas. (Remove ruts from traffic lines, roads and airports) JHK150 Concrete Floor Grinder for sale at low price made in China
Specification:
- Long service life with diamond blades
- Large-volume fuel tank is used to ensure long-term work
- All operating switches are installed on the armrest
- Figure 1: Shockproot handle design andDepth of cut control with handwheel
- Figure II: Honda GX390 motor
- Figure 3: Front caster design, easy construction
- Figure 4: Using a three-groove belt
- Figure 5: Blade size: 150mm and 180mm
scope:
Model | JHK-150 |
engine model | Honda GX390/Kohler CH440 |
Blade diameter(mm) | 150/180mm |
Blade Thickness(mm) | 8 mm |
Number of blades | 1 |
Rotating speed | 3000 rpm |
Grooving depth(mm) | 0-50mm |
Slot width(mm) | 8-10mm |
cutting speed | 2-4m/min |
Dimensions (mm) | 980*660*800 |
Shipping Dimensions (mm) | 990*670*810 |
Weight (kg) | 75 |
Shipping weight(kg) | 85 |
operation method | Manual/linear cutting or grooving |
