High performance handheld asphalt concrete cutting machine dust collector FND-K25A

Supplier: Suzhou Fanuode Engineering Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms. Ella Lee
Price: $9000.00 / 1 - 4 units
$6900.00 / >=5 units
Min. Order: 1 unit

Click here to contact

Product details

Working width:	10-50mm	Video outbound inspection:	if
Start method:	hand	Packaging details:	Standard export packaging or according to customer requirements
blade:	6 carbide drill bits	Warranty:	unavailable
Voltage:	12V (battery), 220v	Dimensions (lengthwidthheight):	1100×850×1500/1400×850×1500
Supply capacity:	20 units per month	Unique Selling Points:	Imported engine
rated power:	25 HP	Health status:	new
tank:	25 liters	Showroom location:	not any
Core components:	Engines, motors, pumps	Mechanical test report:	if
payment terms:	L/C, T/T, T/T with 30% deposit and balance before shipment.	Place of origin:	Jiangsu, China
port:	Shanghai	Core component warranty:	1 year
After-sales service provided:	Engineers can repair machinery overseas	Marketing type:	normal product
weight:	235kg	Applicable industries:	Construction engineering, road maintenance
Working depth:	10-30mm	Package preview:
Certification:	ISO9001	brand:	Farnold
strength:	18.4kW	engine:	Kohler Gasoline 25 HP
color:	red or customer request	Rotating speed:	3600 rpm

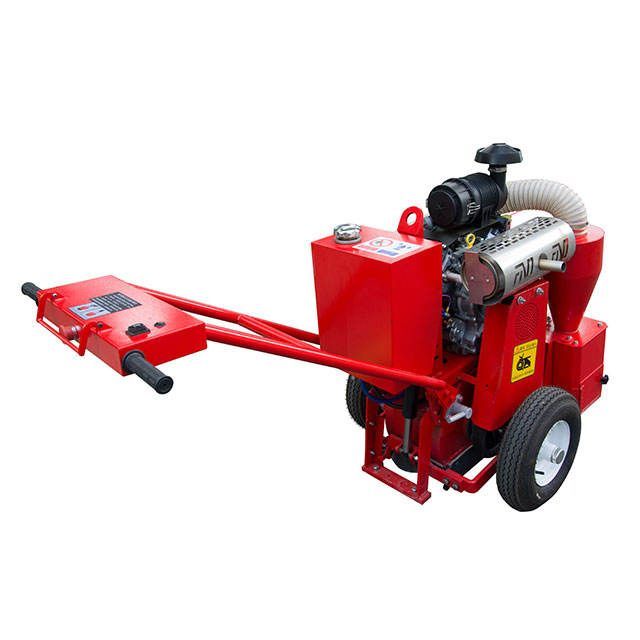

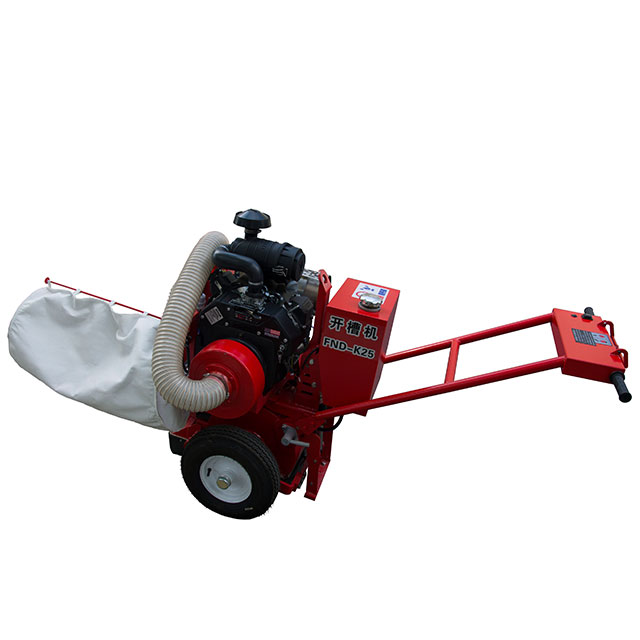

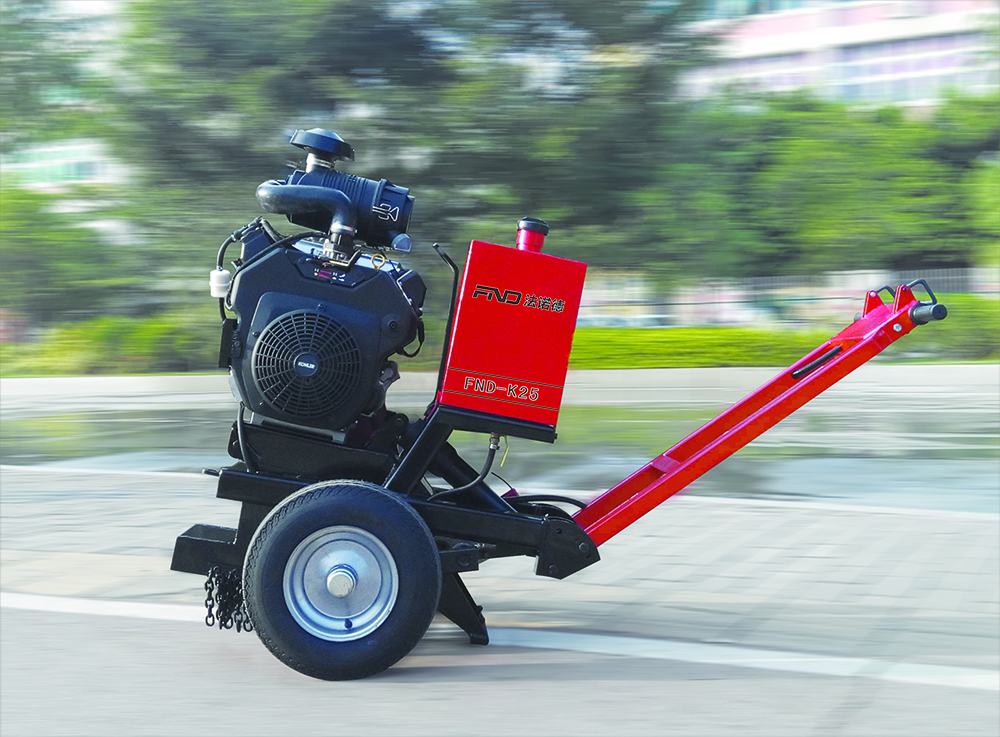

Good Equipment Road Construction Tools Asphalt Concrete 50mm Pavement Crack Grooving Machine FND-K25A

FND K-25 road grooving machine is used forConstruction work, e.g.slotting,cutting,concrete grooving,Asphalt Grooving,Road grooves. it hasPowerful, the operation experience is smooth and safe.

Product Description

The grooving machine can easily, accurately and quickly cut standard grooves with a depth of 0-3CM and a width of 0-5CM along any joints of asphalt and cement pavements.

Our Features

1.Imported Kohler engine, 25 horsepower strong power, three-stage air filtration system, comprehensive response
Reduce the impact of harsh construction environments on the engine, ensure maximum engine performance and extend its service life.
2.Emergency braking system, when the operator cannot control the machine, quickly stops the machine's working state
Through the natural protection of the human body, the device tilted and hit the brake switch within 7 seconds.

Our advantage

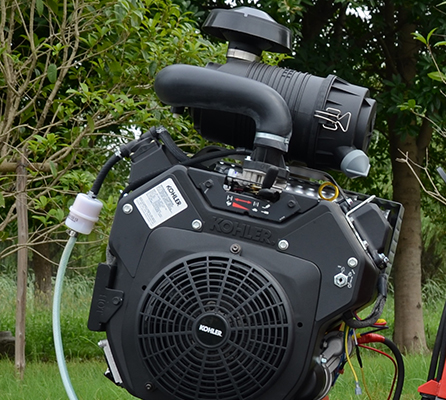

air filter

High quality Kohler generator. It has a three-stage air filter, which can effectively avoid the influence of industrial dust and ensure that the engine

performance and extend engine life.

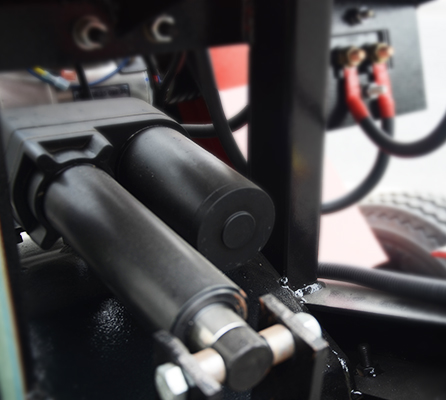

push rod lift

The end limit buffer can improve the stability of the machine and avoid skew caused by friction and high-frequency vibration of the grooving knife.

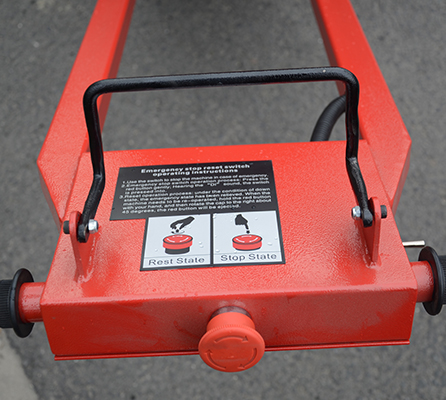

Emergency braking design

When the grooving machine is out of control of the operator, the operator can hit the brake switch with his body without releasing his hands. The machine will then stop after 7 seconds.

Specification

	K-25	K-25A
weight	225kg	245kg
size	1100x850x1500mm	1400x850x1500mm
rated power	18.4kW	18.4kW
tank	3.5 liters	3.5 liters
Groove depth	0-3cm	0-3cm
Groove width	1-5cm	1-5cm
Dust removal ability	-	260 cubic meters/hour
Dust removal power	-	3kW
