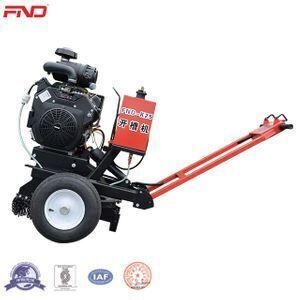

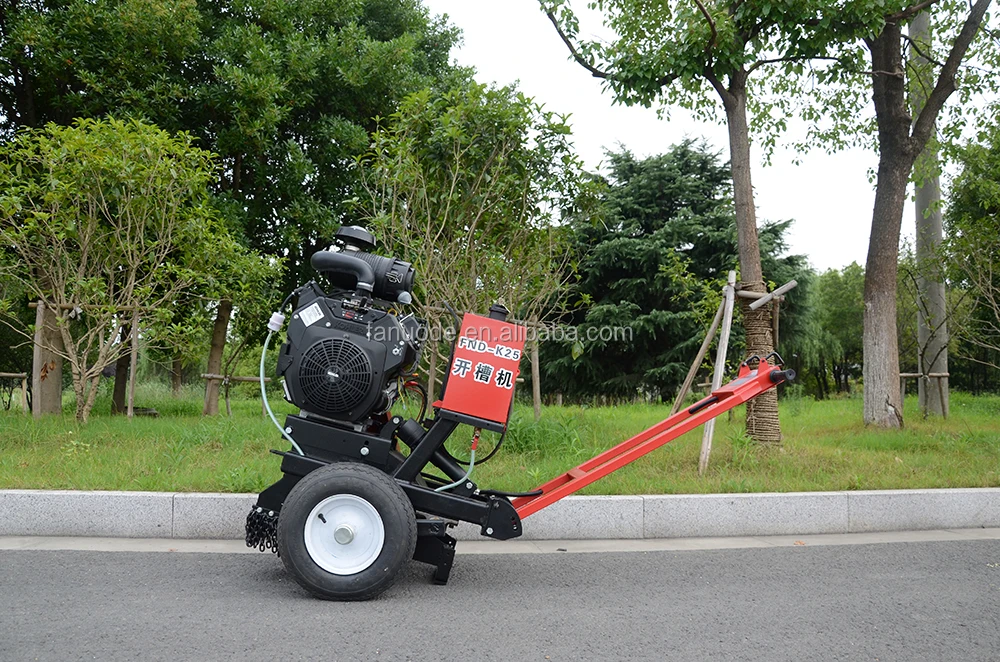

FND-K25 Road Concrete Manual Crack Grooving Machine/Groover Machine For Sale Products from Suzhou Fanuode Engineering Machinery Co., Ltd.

Product Details

Fuel:	Gasoline;	Port:	Shanghai;
Packaging Detail:	Standard export packing or according to customer requirement;	After-sales Service Provided:	Engineers available to service machinery overseas;
Brand Name:	FANUODE;	Condition:	Used;
Engine:	Kohler gasoline 25 HP;	Working Width:	10-50 MM;
Rotary Speed:	3600rpm;	Rated power:	25 HP;
Engine filter:	3 type;	Weight:	225 KG;
Power(W):	18.4 KW;	Voltage:	12 V (accumulator);
Place of Origin:	Jiangsu China (Mainland);	Certification:	ISO9001;
Blades:	6 carbide bit;	Warranty:	1 Year;
Working Depth:	10-30 MM;	Running Speed:	0-4km/h;
Starting mode:	Hand;	Year:	2014;
Color:	Red or customer request;	Payment Terms:	L/C,T/T,T/T with 30% deposit, and balance against before the shipment.;
Fuel tank:	25 L;	Dimension(LWH):	1100 X 850 X 1300;
Supply Ability:	20 Unit/Units per Month;

Product Description

Product Application

The crack router is capable of grooving slots at 10-30 mm by depth, and 120 mm by width along cracks in concrete or asphalt pavement easily, accurately and quickly.

Model	FND-K25	FND-K25A
Dimension ( L X W X H ) mm	1100 X 850 X 1300	1400 X 850 X 1300
Weight	225 KG	245 KG
Engine	Kohler gasoline	Kohler gasoline
Rated Power	18.4 KW	18.4 KW
Fuel Capacity	25 L	25 L
Cutting Depth (mm)	10-30	10-30
Cutting Width (mm)	10-50	10-50
Dust Collection Capacity	-	260 m3/h
Dust Collection Power	-	3 KW

Main Features

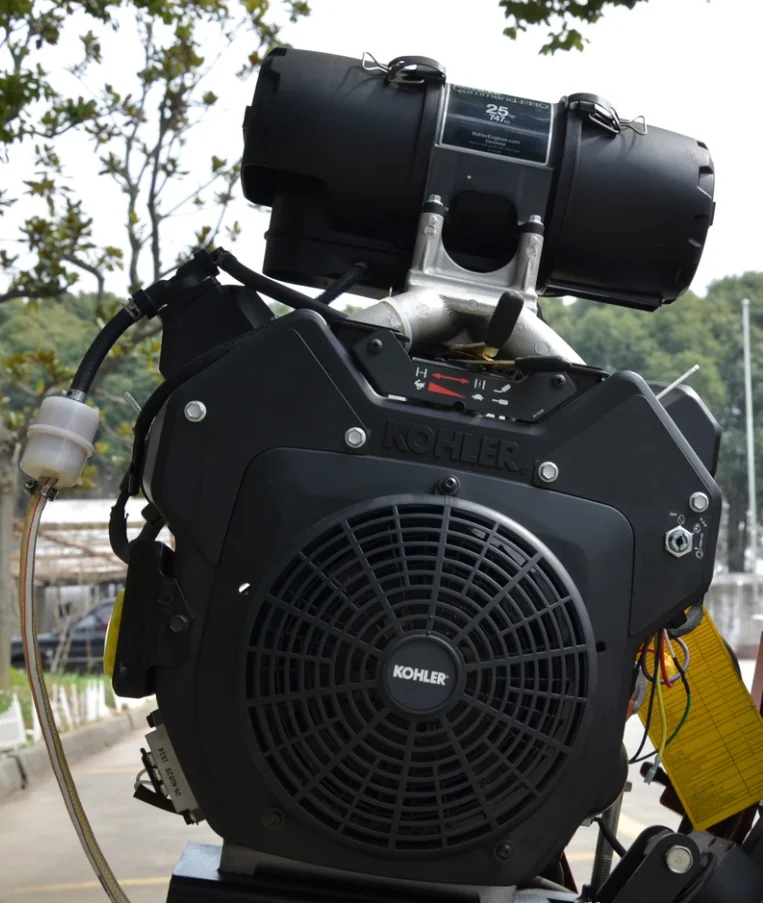

KOHLER GASOLINE ENGINE
Import kohler engine, 25 HP, triple air filters system. The engine can cope the influence under the harsh construction environment, the maximum guarantee of the engine performance and work time.

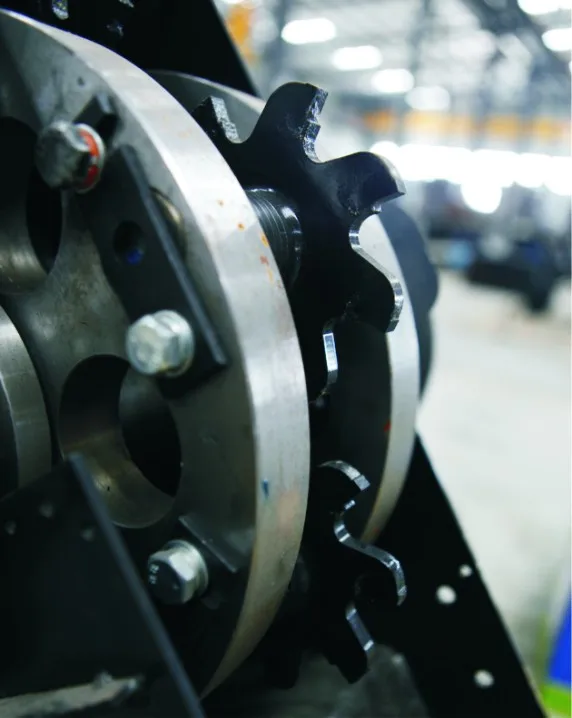

IMPORTED ALLOY MATERIALS
High hardness and toughness by imported alloy material is used for processing, generally the asphalt pavement can groove 1-30000 meters.

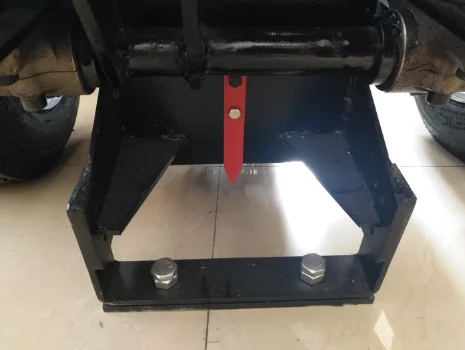

AIMING LOCATOR
The cutting can travel along the crack, it is not running direction, and the support depends on the ground friction to control the traveling speed.

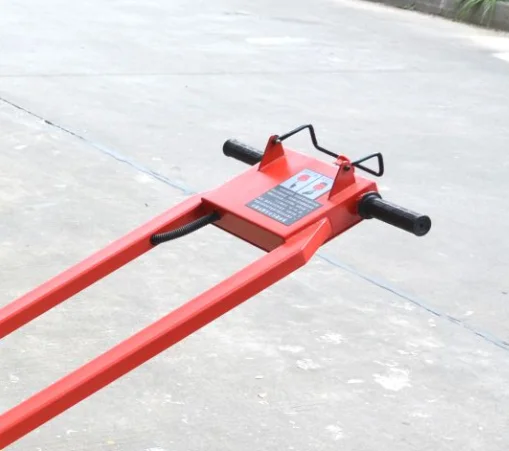

EMERGENCY BRAKING SYSTEM
When the worker is unable to control the machine, it is used to slam the brake switch through the natural protection of the human body, and 7 S stop the working condition of the equipment immediately.

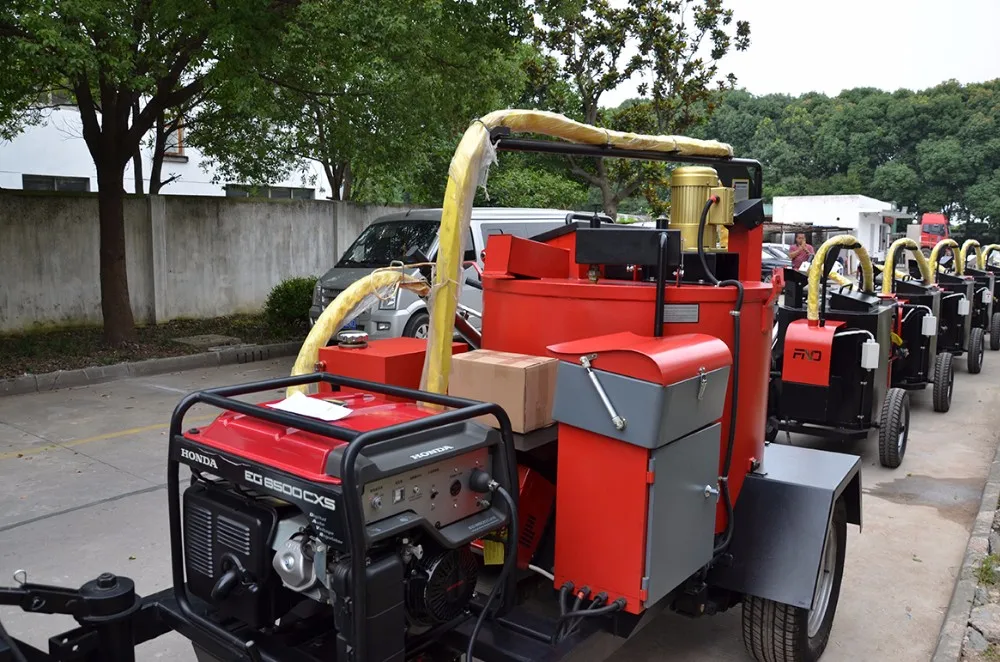

Crack sealing machine

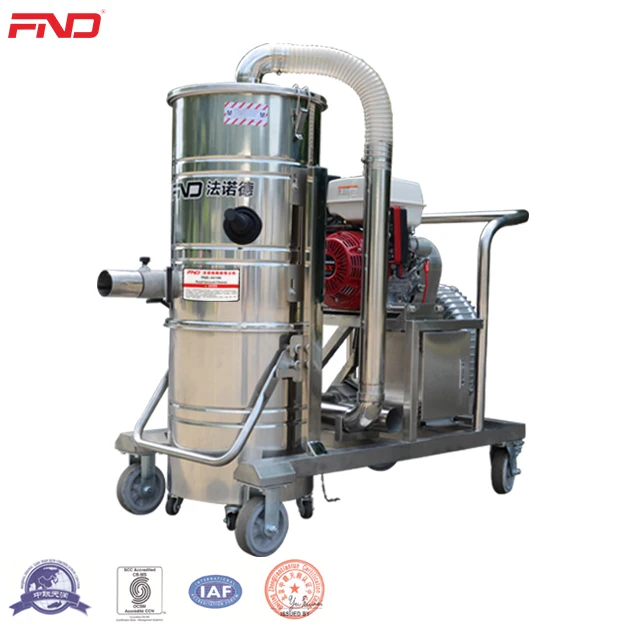

Vacuum cleaner suction machine

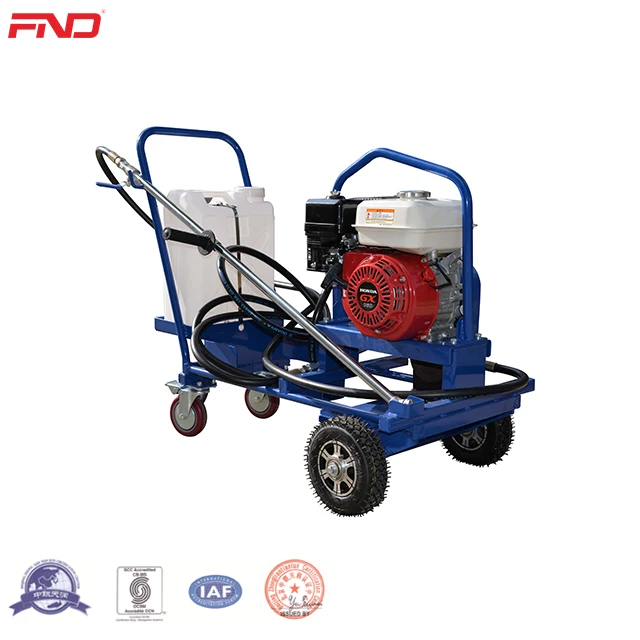

Emulsion spraying machine

Certifications

Working Procedures

Packing & Delivery

Before the packaging

Loading

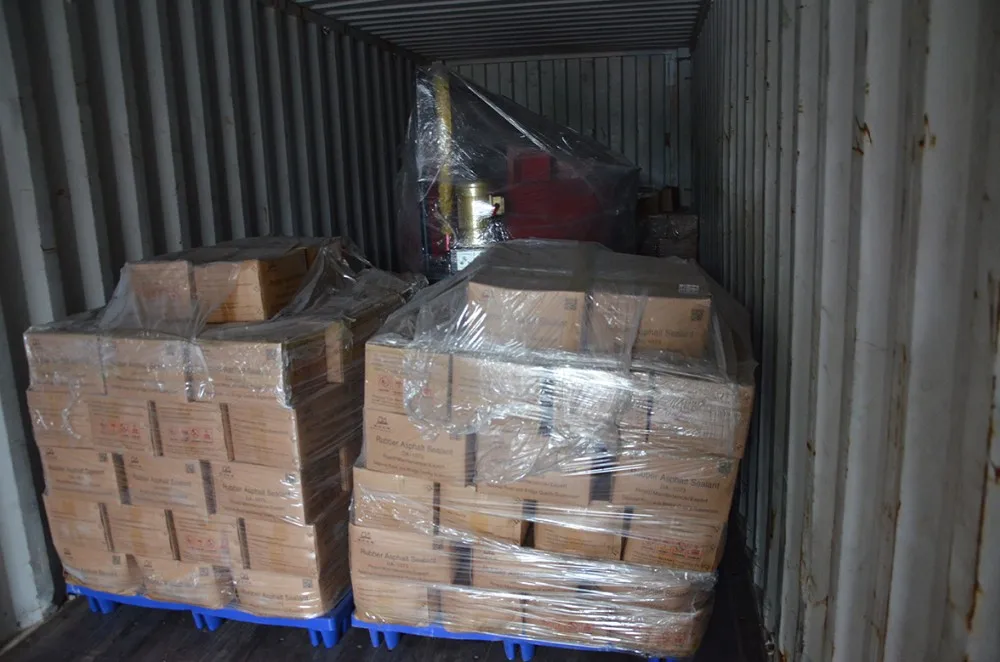

Sealant into the truck

Crack sealing machine to Afghanistan

Our Company

FAQ

Q: What's about the service?
A: We can offer free after-sale service for one year, and always provide technical support guidance.

Q: Can we do the specific design based on our own idea?
A: Yes, we can customize the design according to your personal need.

Q: Could you stick customers brand on the products?
A: sure, we welcome the OEM orders.

Q: May I visit your factory?
A: Welcome to visit our factory where is near the Shanghai.
