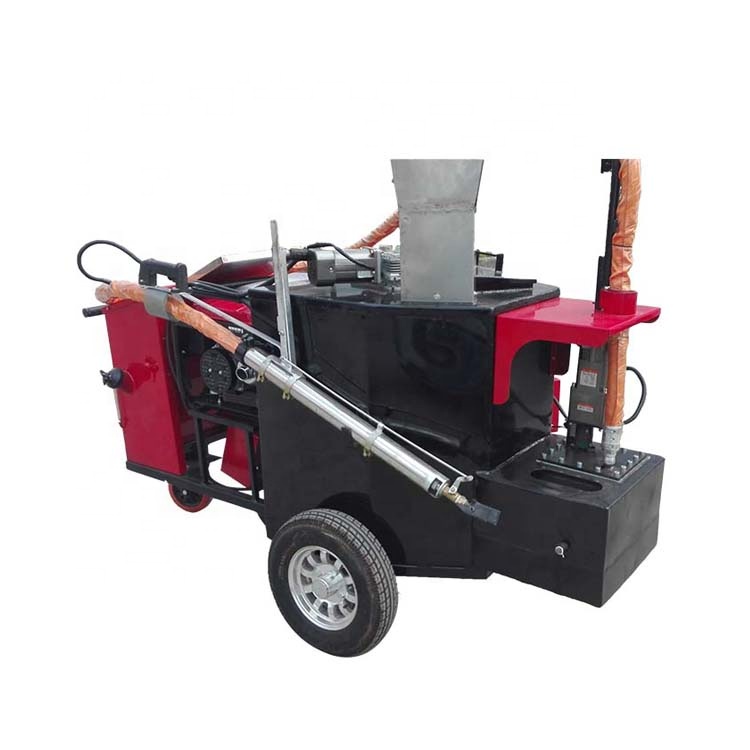

Factory Price Asphalt Pavement Crack Sealing Machine

  • 780.00 set
Min. Order: 1 set FOB PRICE
Registered Supplier Direct Contact Inquiry via Message
Product Details
Core components:PLC, pressure vesselport:Qingdao, Shanghai, Ningbo, Guangzhou
Hopper volume:50L/60L/80L/100L/200L/350LMarketing Type:normal product
Dimensions (L*W*H):1200X700X1200mmUnique selling point:low maintenance cost
Mechanical test report:ifpayment terms:L/C, Western Union, T/T
strength:2KWapplication:Asphalt Pavement Crack Sealing Machine
Driving mode:hand pushTank volume:100L
Core component warranty:1 yearVideo shipment inspection:if
Packaging Details:Asphalt pavement crack sealing machine standard import and export wooden box or carton.Applicable industries:construction project
Stirring method:manualWarranty:1 year
Showroom location:Italy, Brazilproduct name:Sealer
weight:120 kgbrand:Yu Gong
Supply capacity:5000 sets per monthFilling speed:10m/min
Key words:crack asphalt sealerHealth status:new
Origin:Henan, China
Product Description

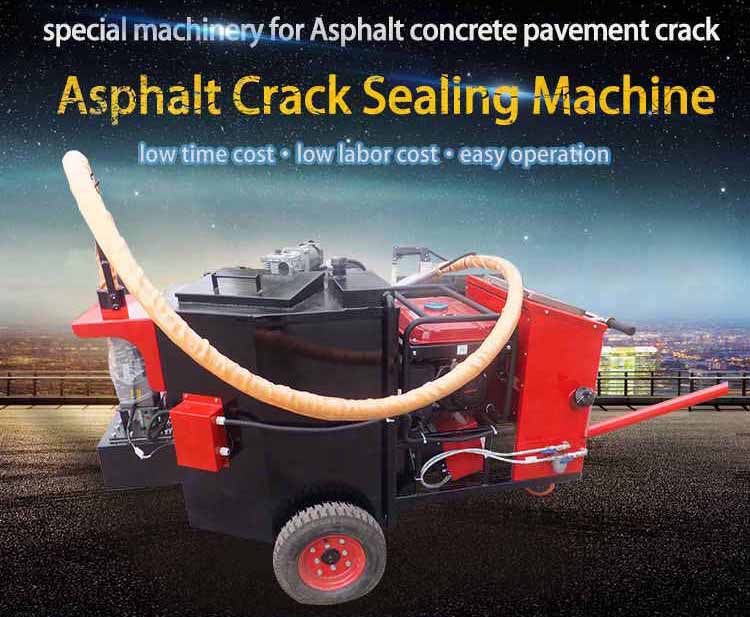

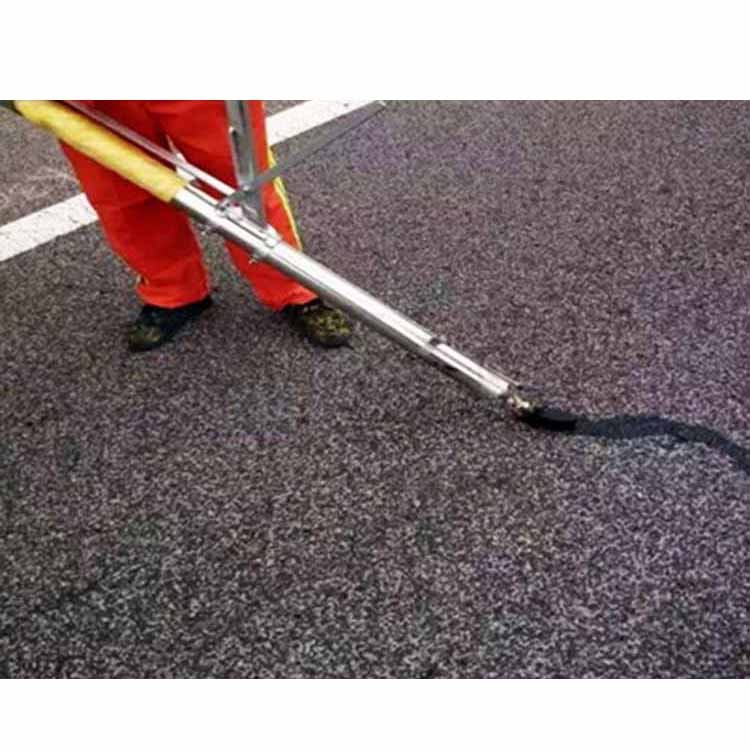

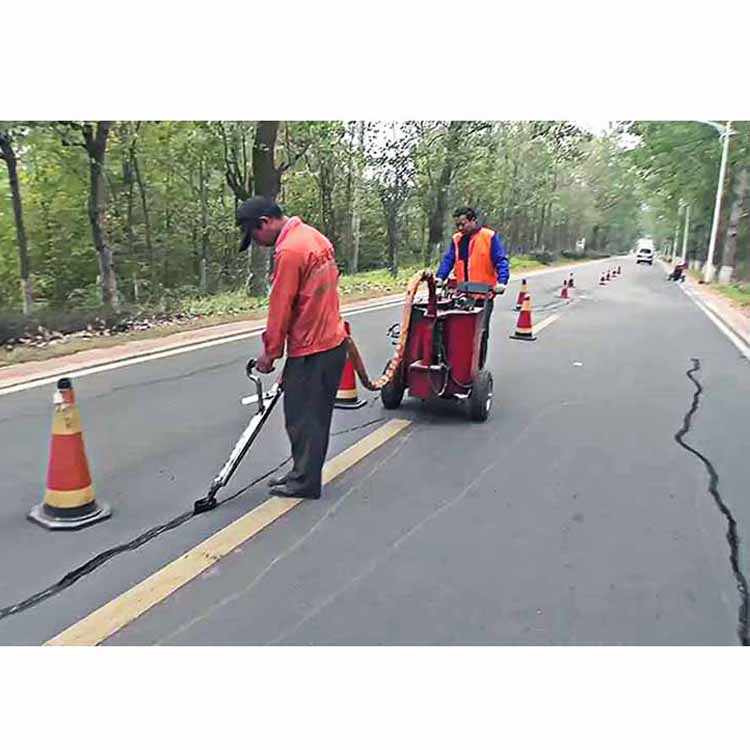

Asphalt pavement caulking machine The hand-push caulking machine is mainly used for irregular cracks in asphalt pavement, concrete pavement expansion joints, water supply and drainage pipes, gas pipeline pre-embedding and road joints. It is a kind of portable asphalt specially designed and produced. Repair and fill specialized machinery.

Technical Parameters

Model

YG-50L

YG-60L

YG-80L

YG-100L

Hopper volume

50L

60L

80L

100L

discharge method

Artesian

Asphalt pump feeding

Asphalt pump feeding

Asphalt pump feed + hand pipe

heating method

liquefied gas

Liquefied petroleum gas + heat transfer oil

Liquefied petroleum gas + heat transfer oil

Italian diesel burner, thermal oil circulation heating

temperature control

Temperature sensor 180° (temperature control call)

Temperature sensor 180° (temperature control call)

Temperature sensor 180° (temperature control call)

Automatic temperature control system

Filling speed

10m/min

15m/min

15m/min

20m/min

Gland length

——

——

——

5 meters

walking mode

Push type + brake device

Push type + brake device

Push type + brake device

push+trailer

Hybrid

manual mixing

manual mixing

manual mixing

electric stirrer

power configuration

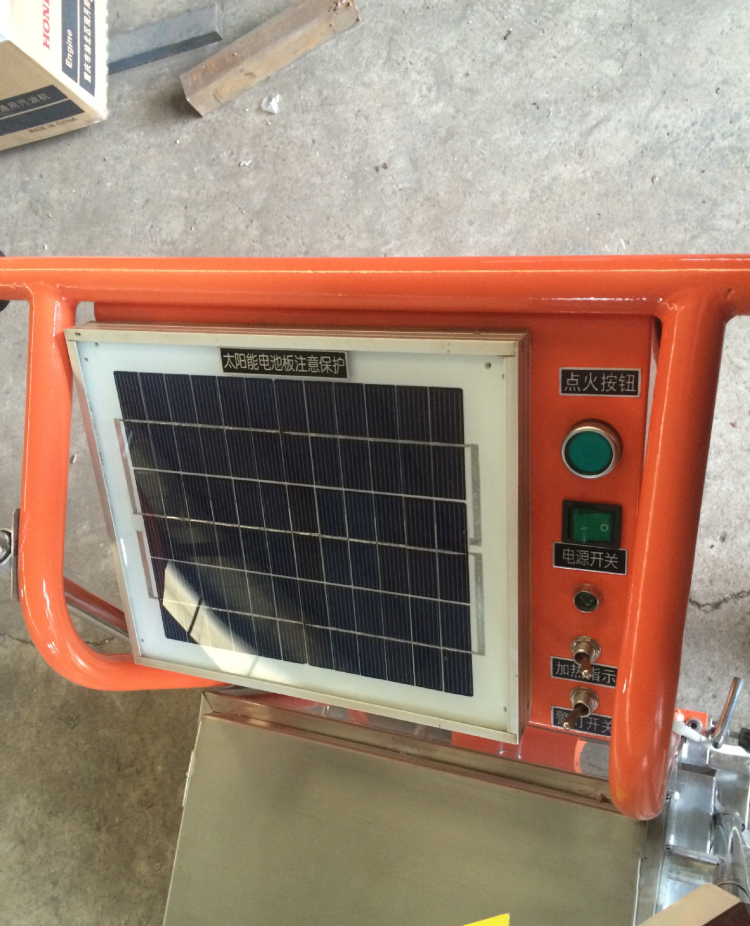

Solar panel + battery

Yamaha gasoline generator + battery

Solar panel + battery

Imported 2KW generator

aspect

1200X700X1200mm

1750X786X1200mm

weight

120 kg

120 kg

150 kg

220 kg

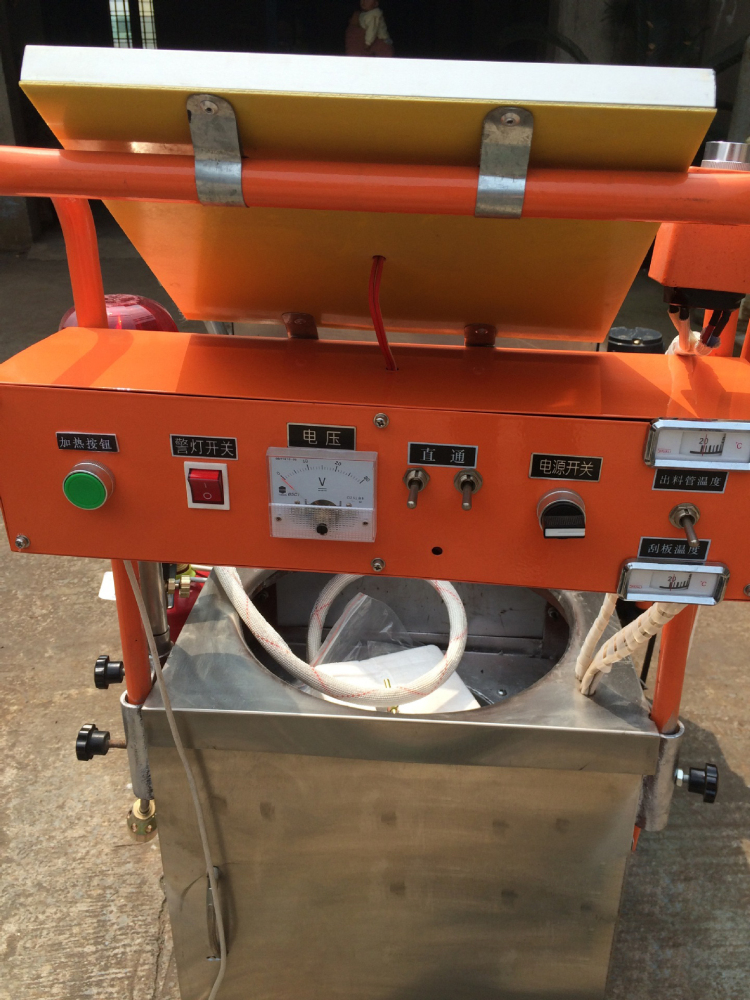

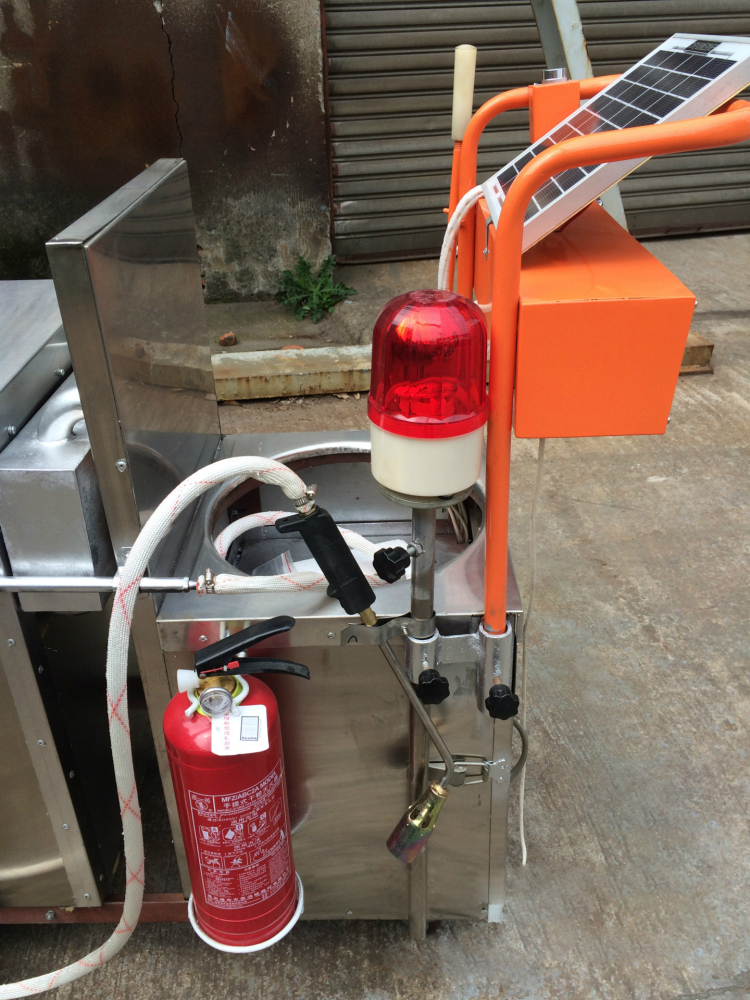

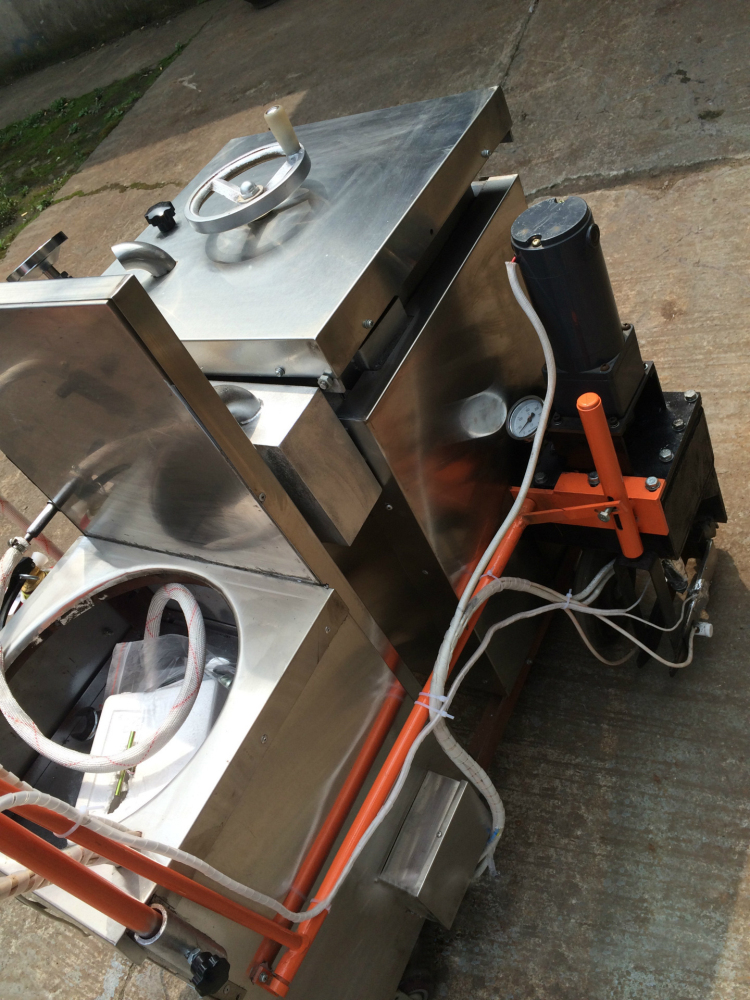

Details and Features



  • Small size, light weight, convenient mobile construction, using liquefied petroleum gas as fuel, economical and environmentally friendly;
  • The temperature rises quickly, the material is heated evenly, the external stainless steel heat preservation device, the heat preservation is sufficient, the heat preservation time of the material is prolonged, and the safety of the construction personnel is taken into account.
  • The upper part of the body adopts a spare manual stirring device to speed up the heat exchange and make the material melt more fully and evenly; the material is convenient and smooth, and the body moves lightly, and the loading operation is completed with the car.



Packaging and Shipping
