Mortar Sprayer Wall Cement Spray Plaster Machine Concrete Spraying Machine For Sale

Supplier: Henan Yugong Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Christina Niu
Price: $1750.00 /set
Min. Order: 1 set

Click here to contact

Product details

Keyword:	Concrete Spraying Machine for sale;	Local Service Location:	None;
Port:	Tianjin,Qingdao,Shanghai;	Packaging Detail:	Packaged by wooden case or as your requirement. Concrete Spraying Machine for sale;
Machinery Test Report:	Provided;	Air compressor:	3 m3/h;
Marketing Type:	Ordinary Product;	Brand Name:	Yugong;
Pressure:	3 Mpa;	Certification:	ISO CE,ISO CE;
Max. vertical conveying distance:	50M;	Condition:	New;
Weight:	320kg Spray Machine,320kg Spray Machine;	After-sales Service Provided:	Video technical support,Online support;
Showroom Location:	None;	Applicable Industries:	Building Material Shops,Manufacturing Plant,Retail,Printing Shops,Construction works ,Energy & Mining;
Max. horizontal conveying distance:	100-200m;	Name:	Concrete Spraying Machine for sale;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Application:	Spray Machine,Spray Machine;
After Warranty Service:	Video technical support,Online support;	Hopper Capacity:	50L;
Transfer Horizontal Distance:	100-200m;	Place of Origin:	Henan China;
Transfer Vertical Distance:	50m;	Warranty of core components:	1 Year;
UNIQUE SELLING POINT:	High power engine;	Video outgoing-inspection:	Provided;
Supply Ability:	1000 Set/Sets per Month Concrete Spraying Machine for sale;	Warranty:	1 Year;
Dimension(LWH):	16507501100mm,16507501100mm;	Power:	7.5kw;
Core Components:	Pressure vessel,Motor,Pump,Engine;

Mortar Sprayer Wall Cement Spray Plaster Machine Concrete Spraying Machine for sale

Product Description

• Adjust the flow size for the best spray effect.

• Besides the swich in electronic control box, equipped with remote control switch.

• The connection between the gun and the feed tube can be rotated.

• High efficiency, good quality.

• Small size, low cost of accessories and simple maintenance.

• A machine with only three people, 150 square feet / hour (thickness 2cm).

• Material ratio (cement) 0.7: 3 mortar.

Parameters of Product

Model	YGMP-3
Production Capacity	3m3/h
Pressure	3MPa
Applicable Material Ratio(Water,Ash,Sand)	0.7-1:1:3
Voltage	380V
Main Motor Power	5.5kw
Particle Size	Below 4mm
Transmission Distance	Horizontal 30m Vertical 15m
Bucket Volume	5L
Air Compressor Exhaust	0.3m3/min
Pipe diameter	32mm
Max Aggregate Size	Below 4mm
Weight	320kg

Sprayable Materials

•Putty powder, paint, latex paint, real stone paint, cement mortar, dry mortar, insulation mortar, waterproof materials, fireproof materials, insulation materials, sound-absorbing materials and so on ,which are water-soluble materials.

Characteristics

• Reasonable design, easy to move.

• Feeding continuous, no pulse phenomenon.

• Can spray dry powder, mortar and ordinary mortar.

• Uniform spraying, strong adhesion.

• Complete function, can spray and gunit.

• Direction is optional,which makes operation easy.

•Machine, spray gun, a Φ32 tube (10m), Φ8 trachea (10m)

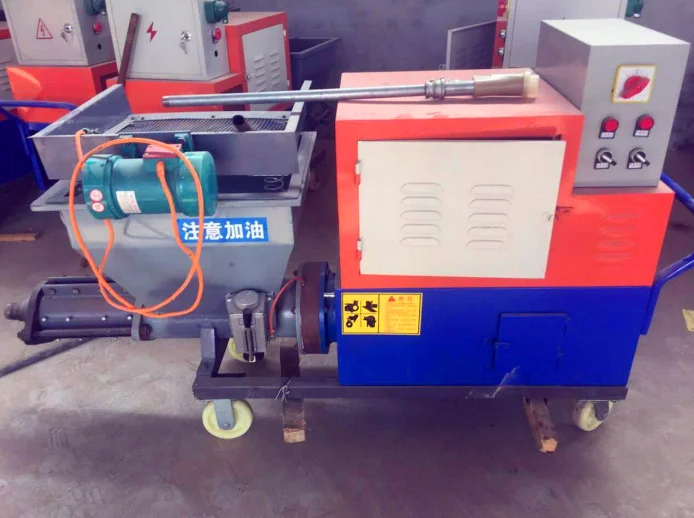

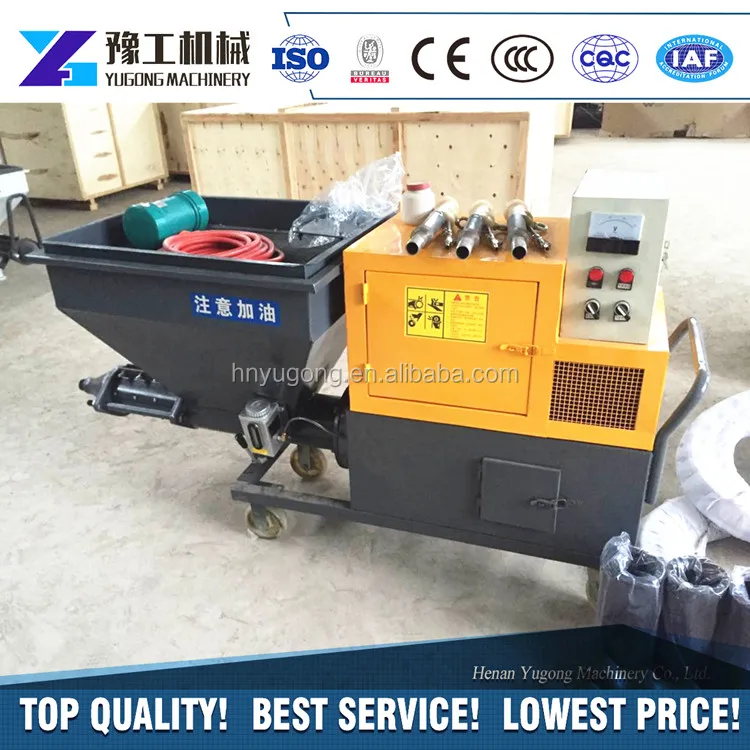

Product Display

Company

Henan Yugong Machinery Co.,Ltd. is specialized in machinery in China over 20 years. We are committed to researching and developing all kinds of mineral equipment, construction machinery, prestressed machinery, metallurgy machinery etc.

Our company has more than 500 employees,including more than 30 senior technical staff and 30 international sales persons.We can supply high quality and professional services.

Henan Yugong Machinery Co., Ltd aims to have top quality, top reputation and top service. "Quality First, Reputation First, Be Innovative, Be Excellent" has always been our purpose. We warmly welcome your corporation from all fields and build great future for us all.
