China supply good quality pet plastic bottle crushing washing drying recycling line

Product details
Condition:New;Color:Customized;
Temperature controller:Omron brand;Brand Name:Faygo Union;
Packaging Detail:Plastic recycling line :Electrics in wooden case;Weight:20-70 MT;
Main Motor:Siemens;Power(W):55-350KW;
Packing:Fumigation free wood case packed;Dimension(L*W*H):Customized;
After-sales Service Provided:Engineers available to service machinery overseas;Place of Origin:Jiangsu China (Mainland);
Control:PLC Automatic of cost of plastic recycling machine;Delivery Detail:75days after payment;
Model Number:FP;Automatic Grade:Automatic;
Certification:CE,ISO9001-2000;Inverter:ABB;
Approved:ISO,CE,SGS;Production Capacity:80 lines/year;
Screw and barrel material:38CrMoAlA;Keywords:pet plastic bottle crushing washing drying recycling line;
Output:300-2000 kg/h;Port:Shanghai port;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Application:Plastic Recycling Line;
Supply Ability:30 Set/Sets per Year pet plastic bottle crushing washing drying recycling line;Warranty:1 year;
Voltage:220V,380V,480V;

China supply good quality pet plastic bottle crushing washing drying recycling line

Product introduction

It is mainly used in recycling PET bottles like pure water bottle, soft drink bottle, oil bottle and so on. With complete pet bottle washing recycling line, clients can make dry,clean PET flake from wasted PET bottles. This pet bottle washing recycling line could be "L" or "U" shape according clients' workshop.

Technical parameters



Technical Parameter
Product capacity
300kg/h
500kg/h
1000kg/h
1500kg/h
Workshop(L*W*H)
40m*7.5m*6m
42m*10m*6m
70m*12m*6m
75m*15m*6m
Needed worker
3-4 persons
5-6persons
7-8persons
10-12persons
Water supply
(recycle use)
2-3ton/h
3-5ton/h
7-10ton/h
10-15ton/h
Final product quality
Moisture: max 1%
Bulk density: 0.3G/CM3
Particle size: 10-18mm
Metal content: max.20ppm
Floatable contamination: less than 200ppm
Total impurity: 100-320ppm

Main Features

1. cost of plastic recycling machine is applied in PET waste bottle or sheet recycling field.
2.Through crushing, washing and dry process, the waste bottle or sheet will become to be bottle flakes. The flakes are widely used in plastic industry, like sheet, and profile production.
3.The clean flakes can be used to produce the polyester staple fiber, PET strap band, granules, PET transparent film and sheets, etc. The top class flakes can be used to blow bottles again.
4. cost of plastic recycling machine can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products are very clean.
5. cost of plastic recycling machine output we can supply is from 300kg/h to 2000kg/h
6.We can also produce the plastic pipe extrusion line,plastic profile extrusion line,wood plast composite extruion line,plastic recycling productio line.

Welcome to visit us at any time and please feel free to contact us for more details.
China supply good quality pet plastic bottle crushing washing drying recycling line

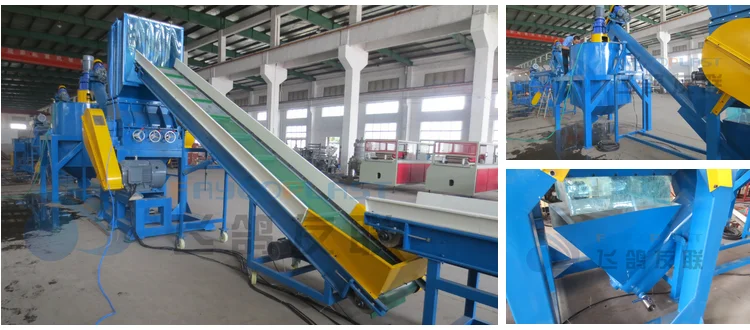

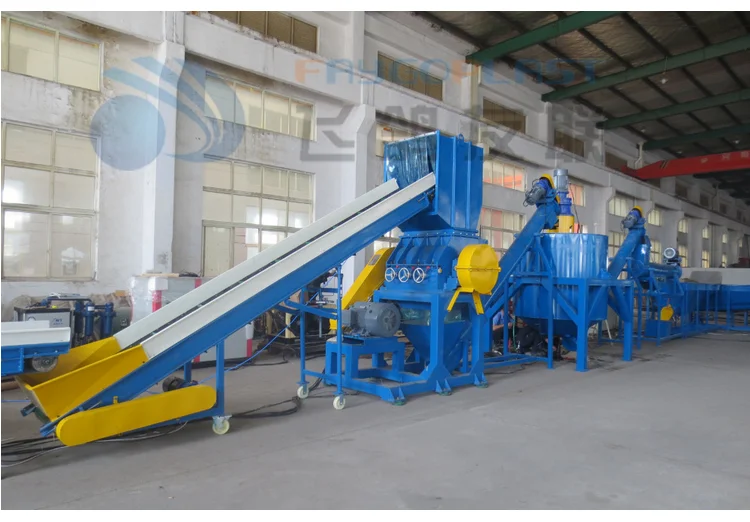

Detailed images



Work Processing
Belt conveyer → Rolling separator →Manual pick table → Metal separator → Belt conveyer → Crusher → Label Separator → Hot washer 1 → Friction washing machine → Hot washer 2 → High-speed friction washing machine → Rinsing tank → Spray washing→ Dewatering machine → Blower dryness system → Storage hopper → Finished product packing
Our Certificate

Packaging & Shipping




Our clients


About us

 FAYGO UNION GROUP has 3 branch factories. One is FAYGOBLOW which design and make blow molding machine for PET, PE etc. FAYGOBLOW has 5 patents of invention, and 8 patents utility models. FAYGO PET blow molding machine is one of fastest and most energy-efficient design in the world. Second factory is FAYGOPLAST, which make plastic extrusion machinery, including plastic pipe extruding line, plastic profile extruding line. Especially FAYGOPLAST can supply high speed up to 40 m/min PE,PPR pipe line. Third factory is FAYGO RECYCLING, which research new technology in plastic bottle ,film recycling processing and pelletizing. Now FAYGO RECYCLING can make up to 4000kg/hr. PET bottle washing line, and 2000kg/hr plastic film washing line.
Now FAYGO UNION GROUP has more than 500 customers from different countries, including UK, Spain, Germany, Norway, Switzerland, Italy, Turkey Russia etc. from Europe ,and America, Canada, Mexico, Brazil, Venezuela, Chilly etc from America, and Saudi Arabia, Iran, Syria, India, Thailand, Indonesia etc. from Asia, and many customers from Africa.
Our factory is located in Zhangjiagang city, covers an area of 26,650 square meters. It only takes around two hours driving from SHANGHAI international airport. Welcome to visit our factory, and hope to cooperate with you in the near future.
