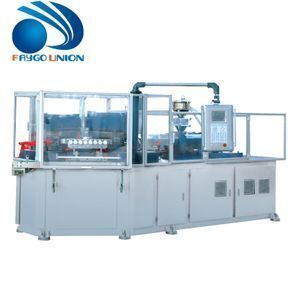

cheap price 20 50 120 150 200 250 ton eva foam injection blow molding machine

Product details
Delivery Detail:50 days after deposit;Injection Rate:300g/s ~ 1200g/s;
After-sales Service Provided:Engineers available to service machinery overseas;Certification:CE ISO9001;
product max length:220mm;Name:150ton eva foam cheap injection molding machine;
system pressure:14Mpa;Automatic:Yes;
Packaging Detail:covered by PE film or by wooden box;Brand Name:Faygo;
product max diameter:120mm;Port:Shanghai Port;
Opening Stroke:700mm;Plastic Type:Thermoplastic;
Injection Weight:300g/s ~ 1500g/s;Voltage:380V/ 50Hz 3P+N+E (alterable);
Style:Horizontal;cooling water pressure:0.3-0.4Mpa;
air compressor:0.7-1.2Mpa;suitable bottle size:5ml-1000ml;
Clamping Force:1180KN;Power(W):30KW;
Condition:New;Place of Origin:Jiangsu China (Mainland);
Payment Terms:L/C,T/T;Supply Ability:38 Set/Sets per Year 150ton eva foam cheap injection molding machine;
Type:Injection Blow Molding;Color:customer oriented;
Warranty:12 Months;

cheap price 20 50 120 150 200 250 ton eva foam injection blow molding machine

Product Description

 Advantages of FG series:

1. Down-setting the clamping cylinder ensures the surface clean of the products. The mold chucking force is kept balance and uniform.

2. Decreasing the machine height ensures the easy operation of mold installation

3. Particular Hydraulic servo system and reasonable layout of the pipeline to keep the machine running highly efficient and energy-saving.

4. Particular pressure clamping structure increase the clamping force and reduce the energy consumption of the system.

5. Servo rotary system or high precision indexing device highly increaes the rotary precision and reduce the dry cycle time.

6. Optimized internal rack layout keeps the maintenance more convenient.

Technical parameters



Name
Unit
FG40
FG60
FG80
FG100
Screw diameter
mm
40
45
50/55
60
L/D Ratio

22:1
22:1
22:1
22:1
Injection Capacity
9
176
260
314
415
Heating power
KW
7.5
10
10.8
12
Heating section

3+N
3+N
4+N
4+N
Injection mould clamping force
KN
400
600
800
1000
The injection mold opening stroke
mm
140
140
140
150
Mould clamping force
KN
60
100
120
150
Blow mold opening stroke
mm
140
140
140
150
Injection stroke
mm
160
160
160
160
Mold Size
mm
480*340
600*390
800*400
1000*460
Min. Thickness of Mold
mm
180
240
280
280
Main motor power
KW
11
18.5
22
30
Reject Stroke
mm
210
230
230
230
Dry Cycle Time
s
3.5
4
4
4
Total power
KW
20
30
40
45
Operating power
%
52-70
52-70
52-70
52-70
System pressure
Map
14
14
14
14
Compressed air pressure
MPa
0.7-1.2
0.7-1.2
0.7-1.2
0.7-1.2
Cooling water pressure
MPa
0.3-0.4
0.3-0.4
0.3-0.4
0.3-0.4
Product maximum diameter
mm
120
120
120
120
Product maximum length
mm
200
220
220
220
Product volume
ml
3-800
3-800
3-1000
3-1000
Dimensions
M
3*1.3*1.7
3.5*1.4*1.8
4*1.6*2
4.5*1.8*2
Equipment weight
Ton
3.5
5
8
10
Products details

 Characteristics of FG series machine

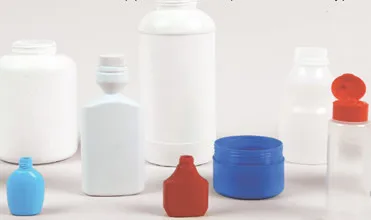

Products size

+

Bottle Size

1.Volume:5ML-1000ML

2.Neck Dia:10-45MM

3.Height:35-200MM

4.Body Dia:45-90MM

Packaging & Shipping
Our Certificate



+
Our clients

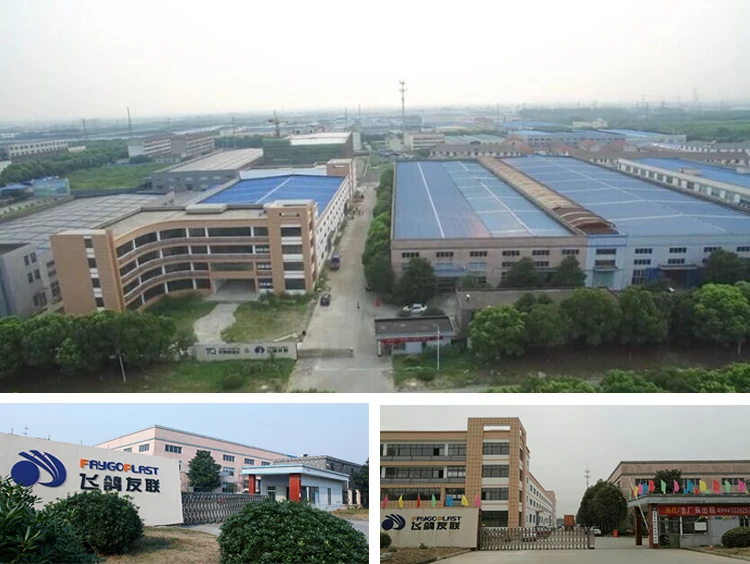

Company Information

Idea:
Abide by the logos of “Sincerity, Development, innovation, Win-Win” constantly, we are honorable to cooperate with friends at home and abroad by providing the high quality products, technology and service!

Market:
Our products have been exported to Middle East, Southeast Asia, South America and Europe etc. We received the universal confirmation and trust from our customers except of the precious experience.

Transportation:
It is located in the beautiful port city of Zhangjiagang with convenient traffic; it’s about 150 km away from Shanghai.
