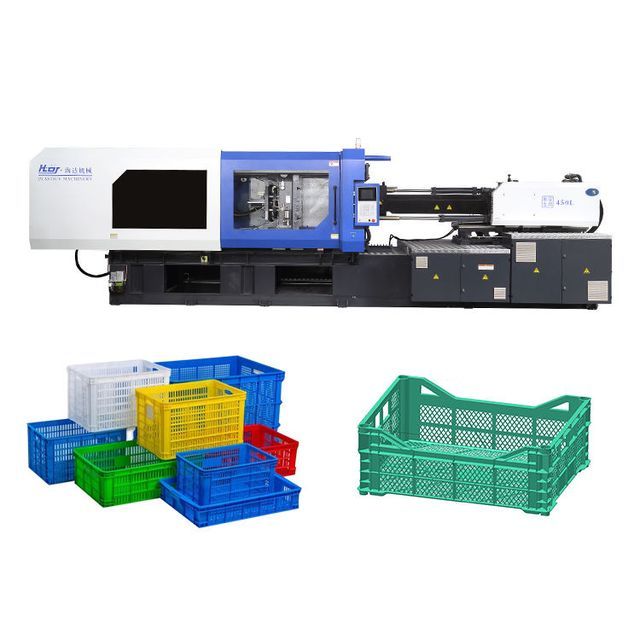

Plastic Paint Bucket Container Box Making Machine Plastic Turnover Box Injection Molding Machine Plastic Fruit Basket Molding Machine
- 81060.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| product name: | plastic injection molding machine | Warranty: | 1 year |
| Start the itinerary: | 750mm | Packaging Details: | wooden pallet |
| Type of machine: | hydraulic | Tie rod spacing (height) (mm): | 780mm |
| heating power: | 41 kW | Ejection force(kN): | 126kN |
| Video outbound inspection: | if | brand: | Haida |
| Machine size (length*width*height): | 8.49*2.23*2.2m | Mechanical test report: | if |
| model: | HD450L | Distance between tie rods: | 780*780mm |
| Core components: | Bearings, motors, pumps, PLCs | Marketing Type: | Hot Products of 2019 |
| Applicable industries: | manufacturing plant | Plastic processing: | PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP, polylactic acid |
| Machine weight: | 16.5 tons | Voltage: | 380V/50Hz 3P+N+E (replaceable) |
| Ejection trip: | 200mm | Theoretical injection volume (cm3): | 1910 cubic centimeters |
| Core component warranty: | 1 year | Origin: | Zhejiang, China |
| type: | preform injection | Mold Thickness: | 300-780mm |
| style: | horizontal | Supply capacity: | 100 pieces per month |
| Open stroke (mm): | 750 mm | Main selling points: | high accuracy |
| Showroom location: | Brazil, Russia, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan | Shot Weight (grams): | 1738 grams |
| Tie rod spacing (width) (mm): | 780 mm | Health status: | new |
| Weight (kg): | 16500 kg | port: | Ningbo |
| Screw aspect ratio: | 22.9/21.5/20.3 | Injection Rate (g/s): | 523 g/s |
| Screw diameter (mm): | 80mm | Power (kW): | 71 kW |
| Ejection stroke(mm): | 200mm | Screw diameter: | 75/80/85mm |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal |
Product Description
thing | unit | data | ||||||
injection device | Screw diameter | mm | 75 | 80 | 85 | |||
Screw aspect ratio | aspect ratio | 22.9 | 21.5 | 20.3 | ||||
Injection volume | centimeter3 | 1854 | 2110 | 2382 | ||||
Injection weight | G | Chapter 1687 | 1920 | 2167 | ||||
Injection pressure | MPa | 186 | 164 | 145 | ||||
Clamping device | Clamping force | thousand cattle | 4500 | |||||
start itinerary | mm | 750 | ||||||
Mold thickness (min-max) | mm | 300-780 | ||||||
space between tie rods | mm | 780×780 | ||||||
Ejection force | thousand cattle | 126 | ||||||
Ejection stroke | mm | 200 | ||||||
General | Motor Power | kilowatt | 41 | |||||
heater | kilowatt | 30 | ||||||
pump pressure | MPa | 16 | ||||||
Machine size | rice | 8.15×2.2×2.2 | ||||||
machine weight | time | 19.7 | ||||||
Mold Locating Ring Diameter | mm | Φ200 | ||||||
Nozzle radius | mm | SR15 | ||||||
