Highshine 250 Ton Servo Injection Molding Machine Trash Can Making Machine Maquina Inyectora De Plastico Precio
- 25000.00 1 - 1 sets
- 18000.00 2 - 4 sets
- 16000.00 5 - 9 sets
- 15000.00 >=10 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Screw diameter (mm): | 70mm | product name: | Highshine 250 Ton Servo Injection Molding Machine Trash Can Making Machine |
| Ejection stroke (mm): | 170mm | model: | HS-350 |
| type: | Tip injection | Ejection force (kN): | 95kN |
| Video outbound inspection: | if | Tie rod spacing (height) (mm): | 670 mm |
| Power (kW): | 60kW | Main selling points: | Energy saving |
| Theoretical injection volume (cm3): | 1347 cubic centimeters | Number of ejector: | 13 |
| Injection rate (g/sec): | 337 g/s | Plastic processing: | PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP, polylactic acid |
| Opening stroke (mm): | 660 mm | Plasticizing capacity (g/s): | 51.9 |
| Screw aspect ratio: | 20 | Core component warranty: | 1 year |
| Mechanical test report: | if | Mold height (mm): | 250 - 700mm |
| Warranty: | 1 year | Type of machine: | Hybrid, hydraulic, electric |
| Place of origin: | Zhejiang, China | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Weight (kg): | 12500kg | brand: | highlight |
| Showroom location: | not any | Tie rod spacing (width) (mm): | 730mm |
| Injection weight (grams): | 1226 grams | Screw speed (rpm): | 1 - 183 rpm |
| style: | horizontal | Applicable industries: | manufacturing plant |
| Core components: | Motors, pumps, PLC, pressure vessels | Health status: | new |
Highshine 250 Ton Servo Injection Molding Machine Trash Can Making Machine Maquina Inyectora De Plastico Precio
Contact person: Mr. Kong
Mobile/Whatsapp: +8618768196956
Efficient servo drive technology ensures efficient production of high-quality products with shortened cycle times. Multiple technologies ensure that each motion axis moves independently, making efficient and energy-saving production so simple. High-quality components are durable and designed for long-term efficient operation without the need for frequent maintenance.
| Highlight HS injection molding machine |
|||
| Model list | clamp tonnage |
the distance between Tie clips (horizontal x vertical) |
Injection volume (cubic centimeters) B screw |
| unit | Ton | mm | G |
| HS-110 | 110 | 410X360 | 183 |
| HS-150 | 150 | 460X410 | Chapter 251 |
| HS-180 | 180 | 520X470 | Chapter 358 |
| HS-250 | 250 | 570X520 | Chapter 491 |
| HS-280 | 280 | 620X570 | Chapter 848 |
| HS-300 | 300 | 670X620 | 1078 |
| HS-350 | 350 | 730X670 | Chapter 1347 |
| HS-450 | 450 | 770X720 | Chapter 1657 |
| HS-550 | 550 | 870X820 | 2136 |
| HS-600 | 600 | 920X870 | 2554 |
| HS-750 | 750 | 1000X920 | 3181 |
| HS-850 | 850 | 1120X1020 | 4163 |
| HS-1050 | 1050 | 1220X1120 | 5512 |
| HS-1350 | 1350 | 1380X1280 | 6484 |
| HS-1600 | 1600 | 1570X1430 | 9026 |
| HS-1850 | 1850 | 1680X1530 | 11084 |

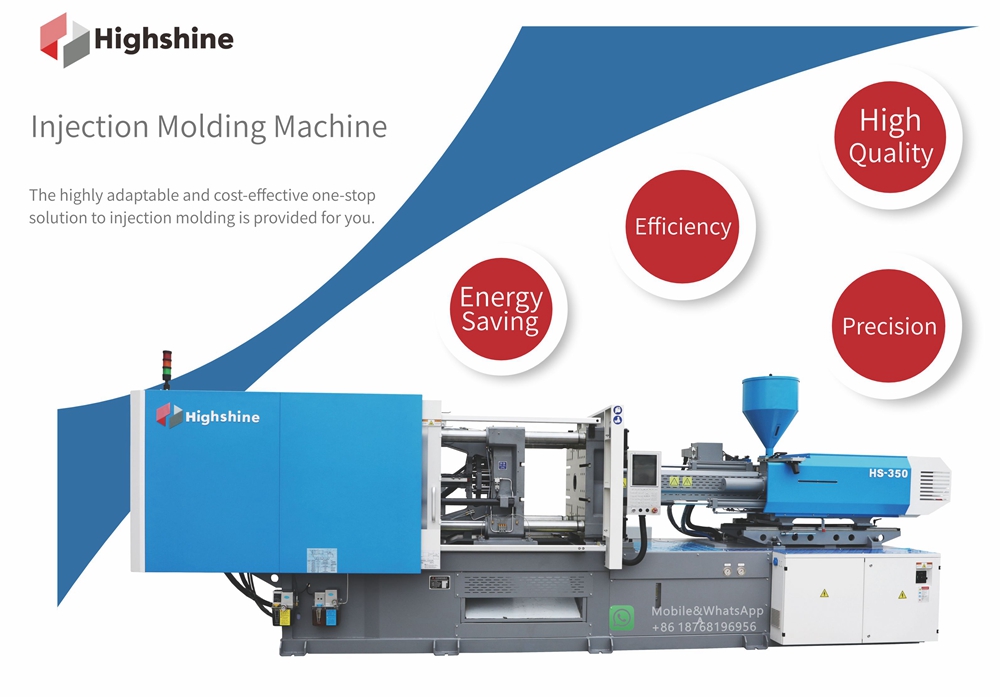

Machine introduction

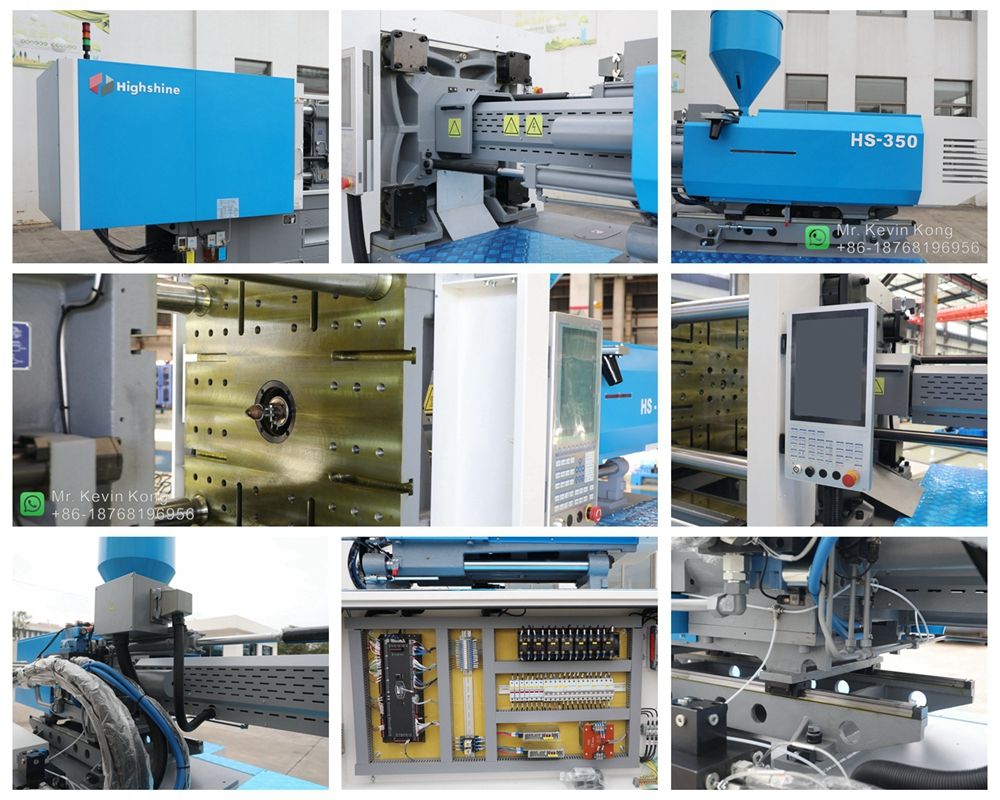

Machine demonstration

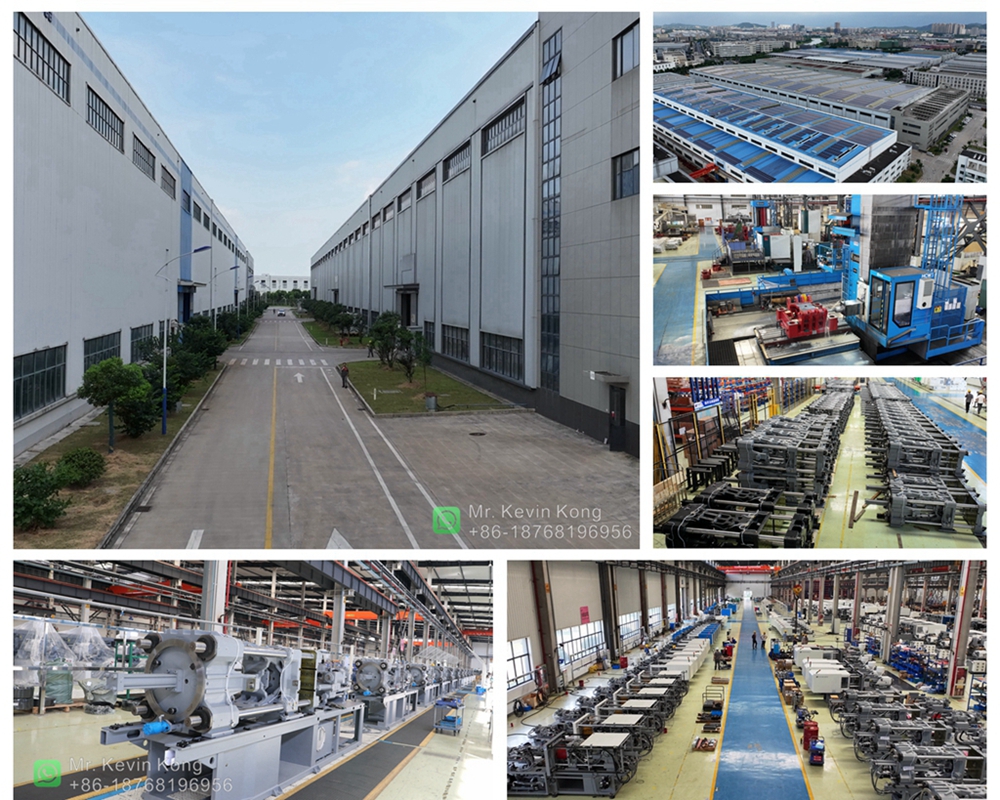

Production center demonstration
Product display
Sales contact information
