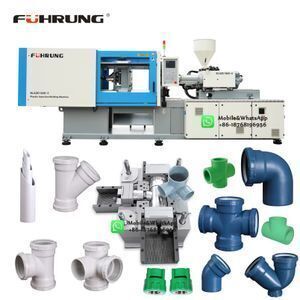

Plastic PVC PPR HDPE PE UPVC Pipe Fitting Making Injection Moulding Machine Price

Click here to contact

Product details

Style:	Horizontal;	Clamping Force (kN):	1800 kN;
Plastic Type:	Thermoplastic;	Injection Rate (g/s):	148.5 g/s;
Condition:	New;	Automatic:	yes;
Injection Rate:	148.5g/s;	Key Selling Points:	High-accuracy;
Supply Ability:	200 Set/Sets per Month;	Product name:	Plastic Pipe Fitting Making Injection Moulding Machine Price;
Package Preview:	;	Screw Speed (rpm):	1 - 224;
Weight (KG):	5300;	Power(W):	20.4;
Packaging Detail:	Wooden Case + Container;	Brand Name:	FUHRUNG;
Type:	Tube Head Injection;	Warranty:	1 Year;
Screw diameter (mm):	45;	Certification:	CE, ISO9001;
Distance between Tie Bars:	520X470;	Injection Weight (g):	326;
Injection Weight:	326;	Ejector Force(kN):	45 kN;
Place of Origin:	Zhejiang China;	Showroom Location:	none;
Opening Stroke:	430mm;	Port:	NINGBO;
Local Service Location:	none;	Plastic Processed:	PP,PC,ABS,PET,PVC,FRPP/PVC,PPR,EVA,HDPE,MLLDPE,EPS,PA,Polystyrene,PE,LDPE,EVOH,HDPE/PP,ABS/PP,PE/PP,Polylactic Acid;
Distance between Tie Bars(Width)(mm):	470;	Distance between Tie Bars(Height)(mm):	520;
Ejector Stroke(mm):	140;	Power (kW):	20.4 kW;
Payment Terms:	L/C,D/A,D/P,T/T;	Machine Type:	Hydraulic;
Model Number:	BLAZE 1800-II;	Screw L/D Ratio:	20;
Applicable Industries:	Manufacturing Plant;	After-sales Service Provided:	Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Open Stroke(mm):	430;
Theoretical Shot Volume(cm³):	358 cm³;

1.Larger space between tie-bars, suitable for larger molds and multi-cavity needs.

2.Longer and wider guide length, higher repeatability precision, improve product quality and mold lifespan.

3.Better designed mechanical structure and toggle system faster cycle time, and improve production efficiency.

4.Upgraded parts, Graphite-copper bushes and slider used on tie-bar, ejector and movable platen, ensure fast and precise mold close and open.

5.European type ejector structure, larger space, convenient for maintenance.

6.Prepared enough space for upgrade and retrofits

7.Integrated and adjustment free mechanical safety bar,more safe and convenient

8.Much higher rigidity mechanical system, not only .improves machine's lifespan, but also can protect mold.

BLAZE SERIES INJECTION MOLDING MACHINE
Model List	Clamping Tonnage	Distance Between Tie Bar (HxV)	Injection Weight (gram) B SCREW
UNIT	ton	mm	g
BLAZE1100-II	110	420X370	149
BLAZE1500-II	150	470X420	252
BLAZE1800-II	180	520X470	326
BLAZE2200-II	220	580X530	447
BLAZE2800-II	280	630X580	772
BLAZE3500-II	350	730X680	1226
BLAZE4500-II	450	780X730	1508
BLAZE5500-II	550	886X820	2169
BLAZE7000-II	700	980X960	2605
BLAZE9000-II	900	1080X1080	3359
BLAZE11000-II	1100	1180X1180	4411
BLAZE13000-II	1300	1250X1250	4411
