magnet lifter 500kg 600kg
- 70.00 piece
| Name: | magnet lifter 500kg 600kg; | Payment Terms: | L/C,T/T,Western Union,MoneyGram,paypal; |
| Delivery Detail: | 3 days after payment; | Place of Origin: | Hebei China (Mainland); |
| Capacity: | 500kgs 600kgs; | Material: | Ndfeb-42m; |
| Supply Ability: | 2000 Piece/Pieces per Month; | Satefy Rate: | 3times; |
| Packaging Detail: | in wooden case; | Factory: | More than 20 years; |
| Application: | lift steel plate , steel pipe , steel scraps or other metal materials; | Packing size: | 35*21*22cm for lift weight 600kgs; |
| Feature: | Safe Automatic Permanent-magnet Cupule; | Port: | shanghai,tianjin , ningbo , Yiwu; |
| Colour: | Yellow Red Green Blue etc.; | Net Weight: | 20kgs for lift weight 600kgs; |

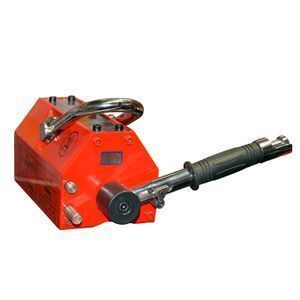

Steel Lifting Magnet 500 KG 600 KG Magnet Lifter
The permanent magnetic lifters are mainly used for lifting the steel plate and round steel, because of the light weight, ease of operation and powerful suction, magnetic lifters are widely applied in ship engineering, warehouse, transportation and machinery manufacturing.
| Model | Rated capacity(Ton) | Max tension(kg) | Size(mm) | Net weight(kg) | |||
|---|---|---|---|---|---|---|---|
| L | B | H | R | ||||
| YS-100 | 100 | 300 | 90 | 63 | 68 | 145 | 3 |
| YS-400 | 400 | 1200 | 160 | 95 | 180 | 160 | 11 |
| YS-600 | 600 | 1800 | 220 | 115 | 125 | 230 | 20 |
| YS-1000 | 1000 | 3000 | 260 | 145 | 145 | 280 | 40 |
| YS-1500 | 1500 | 3750 | 310 | 145 | 145 | 280 | 48 |
| YS-2000 | 2000 | 5000 | 340 | 160 | 165 | 410 | 60 |
| YS-3000 | 3000 | 7500 | 420 | 185 | 185 | 510 | 90 |
| YS-4000 | 4000 | 10500 | 480 | 200 | 200 | 510 | 120 |
| YS-5000 | 5000 | 15000 | 580 | 300 | 300 | 650 | 400 |
Small manual permanent magnetic lifting advantage
1. Permanent magnetic lifter is widely used as lifting tools in factory terminals and warehouse.
2. Safe and reliable, easy to operate, can be used single or combined with other machines to move long and big magnetic iron steels.
3. Using high-performance permanent magnet, ensure the power and high safety.
4. With a "V" style design at the bottom of lifter, can lift both round steel and steel plate.
5. Maintain constant and reliable magnetism without electricity, residual magnetism approach naught.
6. The maximum pull-off force as 3.5 times as rated lifting force which contribute to improve the working conditions of loading operation and labor productivity.
7. The lifting have high resistance to demagnetization, the lifting value will keep constant and stable.
magnetic lifting parts
magnetic lifting Packing
magnetic lifting application case
