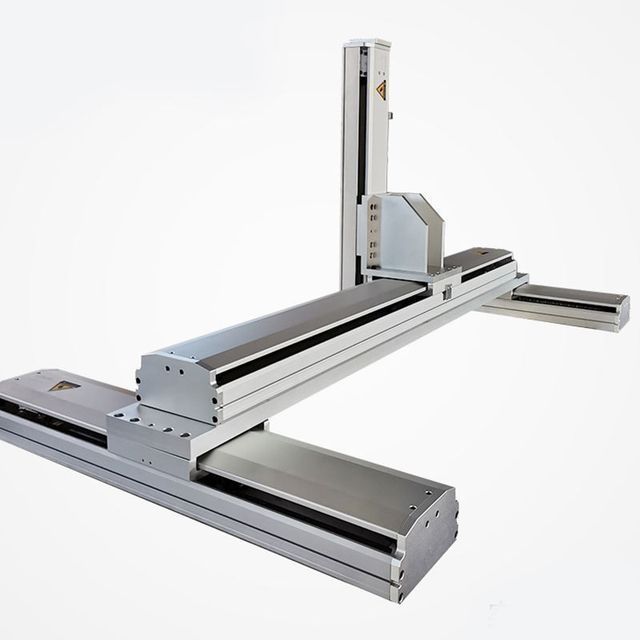

High-speed linear module HG15 linear guide rail and 2010 ball screw drive module cnc multi-axis linear slide module

Supplier: Jinan Levo Bearing Import & Export Co., Ltd.
Region: Shandong, China
Contact: Ms Hongxia Liu
Price: $100.00 / 1 - 9 pieces
$90.00 / >=10 pieces
Min. Order: 1 piece

Click here to contact

Product details

Marketing Type:	New Products 2022	Applicable industries:	Manufacturing plant, machinery repair shop, other
Ball screw diameter and lead:	20mm, 10mm	Valid itinerary:	1050mm
application:	Move/lift/cut/drill	Dimensions (LWH):	130113578MM
feature:	High precision and low noise	payment terms:	Western Union, T/T, MoneyGram, Payapl
Motor position:	motor direct connection	Video shipment inspection:	if
place of origin; place of origin:	Shandong China	Voltage:	220 volts
Weight (kg):	19.75	width:	135mm
product name:	Linear module	Production capacity:	98%
Core component warranty:	1 year	Showroom location:	not any
length:	1300.50mm	Packaging Details:	Single color box + carton packaging
Warranty:	1 year	brand:	Bobo
color:	nickel white	State of health:	new
strength:	400w	port:	Qingdao
custom made:	Is there a brake/Is there a home sensor	Core components:	bearing
Mechanical test report:	Not available	Package preview:
Supply capacity:	1000 sets per month	high:	78mm
Motor brand and power:	Delta 40 400W

Product display:

Product advantages

Material

The metal tabletop, frame and cover of the linear module are all made of high-quality aluminum plates, which have the advantages of firmness, stability and heavy bearing. And the mounting table of the module adopts the grinding process, and the cooperation between the transmission parts and the table is very good, so that the operation of the module is extremely stable.

Transmission Parts

The transmission part adopts high-quality and high-precision linear guide rail and ball screw, which makes the linear module have low noise and excellent stability. In addition, we use a high-precision support unit at the fixed end of the transmission ball screw, which will not shake when the load is heavy, ensuring its perfect operation effect.

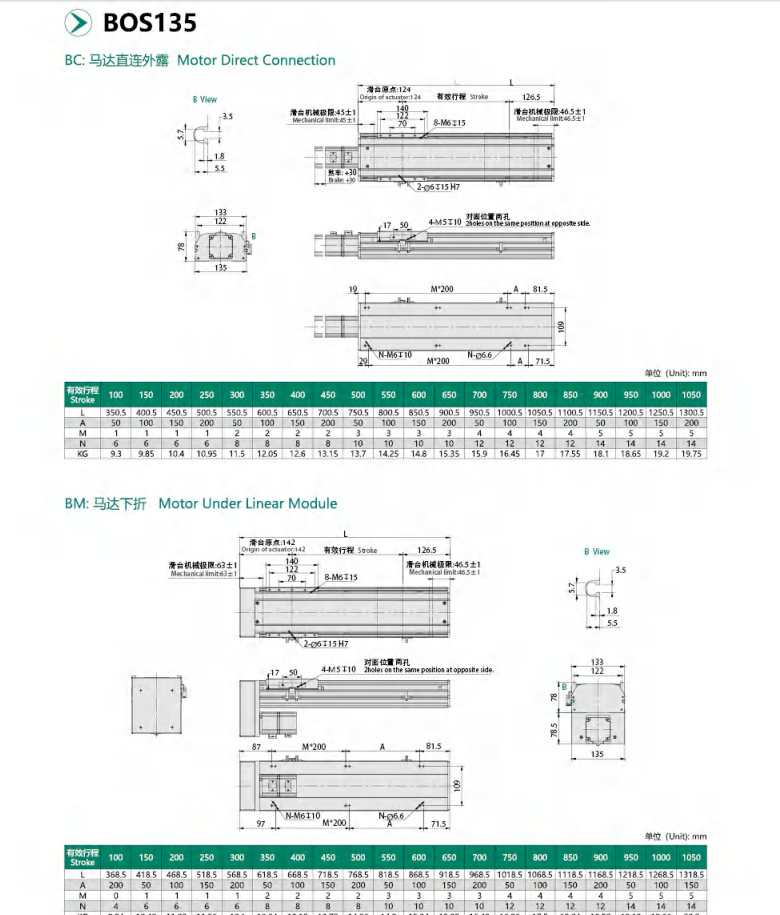

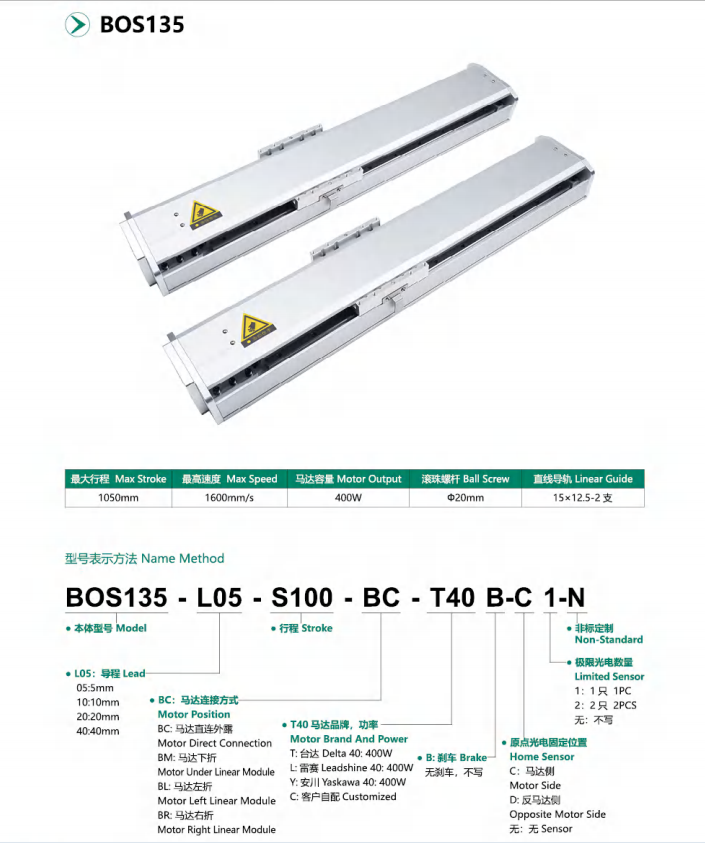

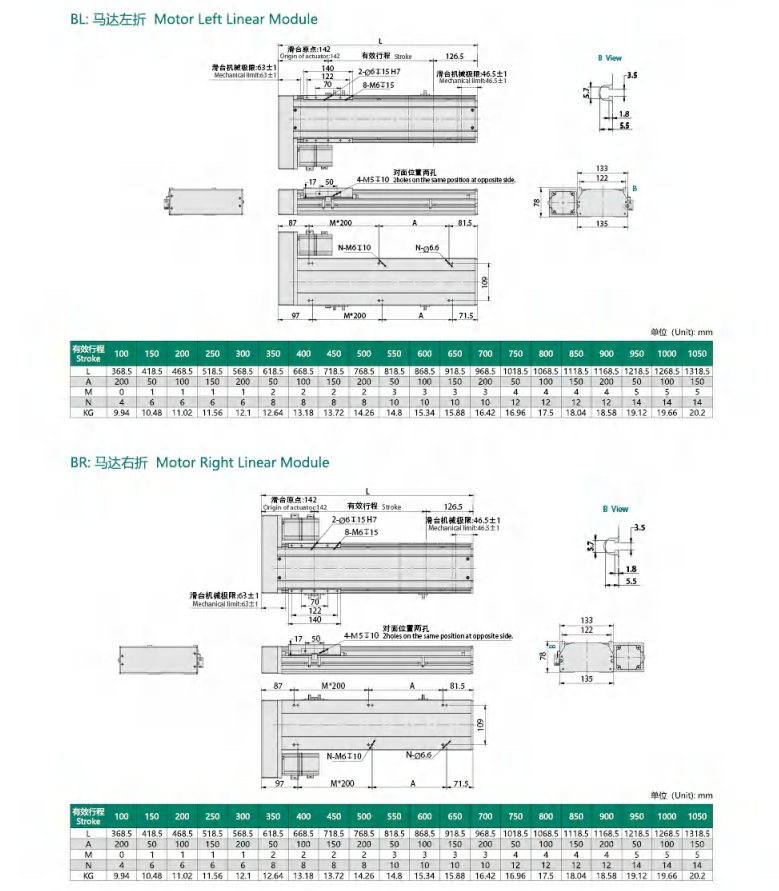

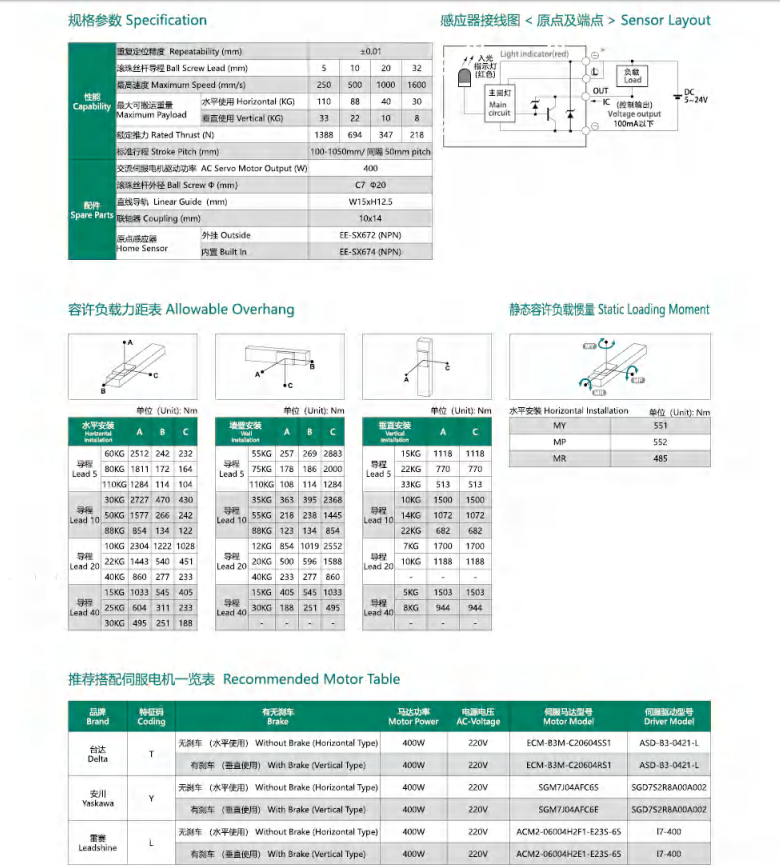

specification

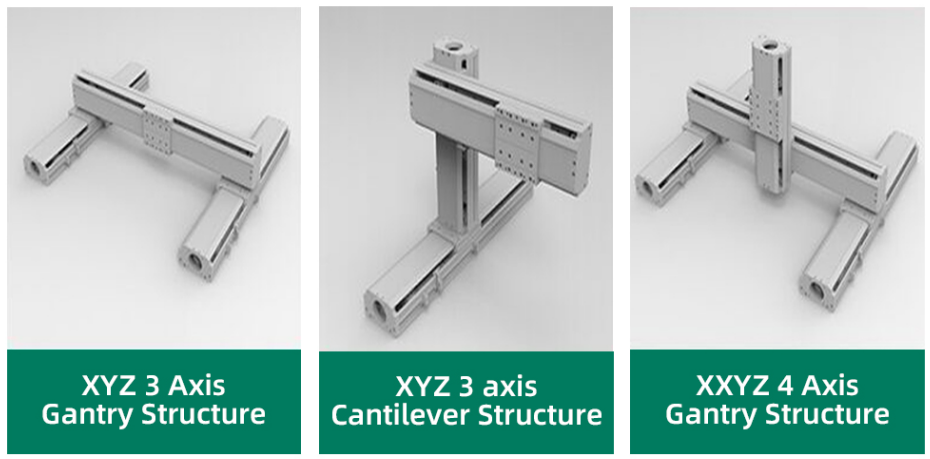

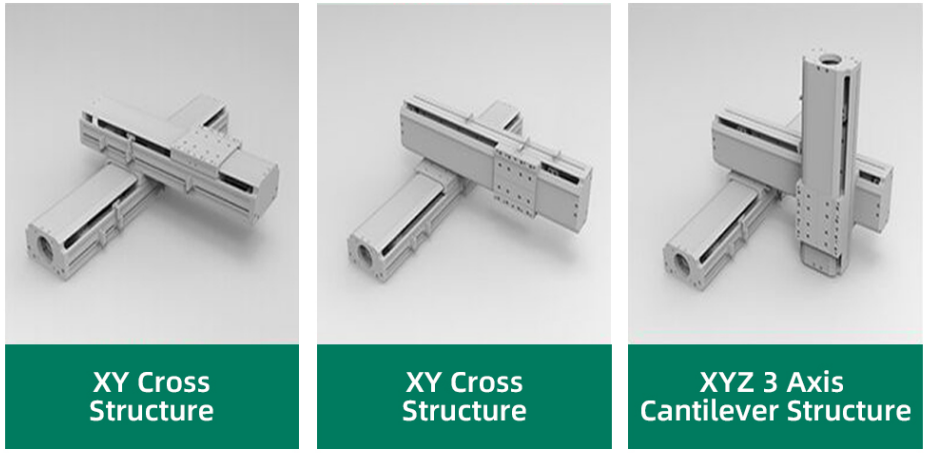

Composite application

Sample #1:

This is a multi-axis drive machining assembly customized for German customers

three-axis drive

OEM order

Equipped with servo motor

Sample #2:

This is a fully automatic packaging air-conditioning production line customized for air-conditioning manufacturers. It realizes the automation of grabbing, placing and packaging in the whole process, and improves production efficiency.
