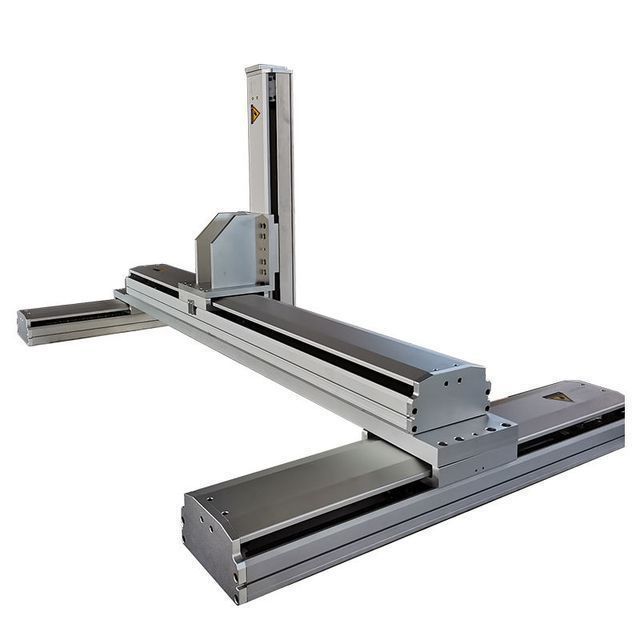

Linear Guide Ball Screw Actuator Robotic Arm Xyz Platform BOS102 Linear Module
-
Supplier: Jinan Levo Bearing Import & Export Co., Ltd. -
Region: Shandong, China -
Contact: Ms Hongxia Liu -
Price: $300.00 / 1 - 4 pieces
$290.00 / >=5 pieces -
Min. Order: 1 piece
Product details
| Supply capacity: | 300 sets per month | product name: | Linear module |
| Serve: | Customized service | Video shipment inspection: | if |
| brand: | Bobo | Weight (kg): | 5.7 |
| Health status: | new | port: | Qingdao |
| Rail type: | Linear Guides | feature: | smooth motion |
| Drive type: | Ball screw rod | Showroom location: | not any |
| Package preview: | Warranty: | 1 year | |
| application: | Dispensing/cutting/drilling/printing | Applicable industries: | Machinery repair shops, food and beverage plants, farms, print shops |
| Production capacity: | 98% | Maximum speed: | From 250mm/s to 1600mm/s |
| payment terms: | Western Union, T/T, Paypal | Effective stroke range: | 50-1050mm |
| Core component warranty: | 1 year | feature: | high precision |
| size: | 102mm | Mechanical test report: | if |
| accurate: | ±0.02mm | Packaging Details: | carton or wooden box |
| place of origin; place of origin: | Shandong China | Core components: | Bearings, ball screws, linear guides, aluminum alloys |
| Marketing Type: | normal product | structure: | Ball screw + linear guide |
| Dimensions (L*W*H): | 12cm*12cm*12cm |
Product Description
| product name | BOS102 linear module |
| Card | Bobo |
| Material | aluminum alloy |
| Ball screw lead | 5mm, 10mm, 20mm, 32mm |
| motor position | The motor is directly connected, the motor is under the linear module, the left linear module of the motor, and the right linear module of the motor |
| Maximum speed | From 250mm/s to 1600mm/s |
| maximum payload | 50KG(horizontal), 12KG(vertical) |
| Effective travel range | 50-1050mm |
| Ball screw diameter | TBI C7 grade, diameter 16mm |
| Linear Guides | MGN12C |
| application | Precise positioning, dispensing, painting, visual inspection, moving, grabbing, cutting and welding, automatic assembly, Automatic screw locking, palletizing, PCB board cutting, circuit board surface cleaning, disc receiver, IC board picking Placement, PCB board printing, small component assembly, barcode scanning, inspection, disc stacking device, parts picking and place |
product display
installation structure
factory, office, team
Packaging and Shipping
