HIWIN HGH20CA linear Guideway linear guides hiwin 20mm
- 5.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Rail legnth: | as requested; | Samples: | available; |
| Type: | Sliding; | LM Rail Weight: | 2.21KG/m; |
| Payment Terms: | T/T,Western Union; | Place of Origin: | Taiwan, China; |
| Model Number: | HGH20CA; | Slide Block Weight: | 0.30KG; |
| Customize: | Available as per drawing or sample; | Standard: | DIN 1494, ISO9001:2008; |
| Material: | chrome steel; | Supply Ability: | 100 Piece/Pieces per Day; |
| PACKAGE: | ORIGINAL PACKAGE; | Feature: | Low Friction; |
| Packaging Detail: | HIWIN Standard package; | Precision Rating: | C grade; |
| Port: | QINGDAO; | MOQ: | 1PC; |
| Brand Name: | HIWIN; |

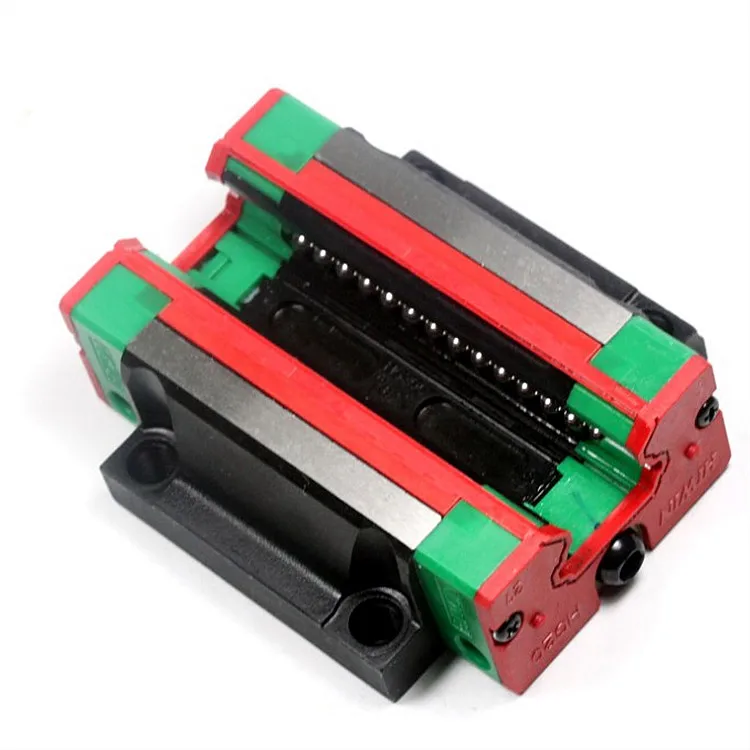

HIWIN HGH20CA linear Guideway
| Type Of Guide | Ball |
| Loading Method | 4 Way Equal Load Type |
| Block Mounting Direction | Top Surface |
| Plate cove/steel tape | steel tape |
| Seal Type | UU |
| Applicable to QZ Lubricator | Available |
| Lubrication Method | Grease/Oil Lubrication |
| Preload grade | Normal (no symbol), light preload (C1) |
| Accuracy Grades | Normal grade (No Symbol), high accuracy grade (H), precision grade (P), super precision grade (SP), ultra precision grade (UP) |
| Rail mounting method | Bolt fixed |
