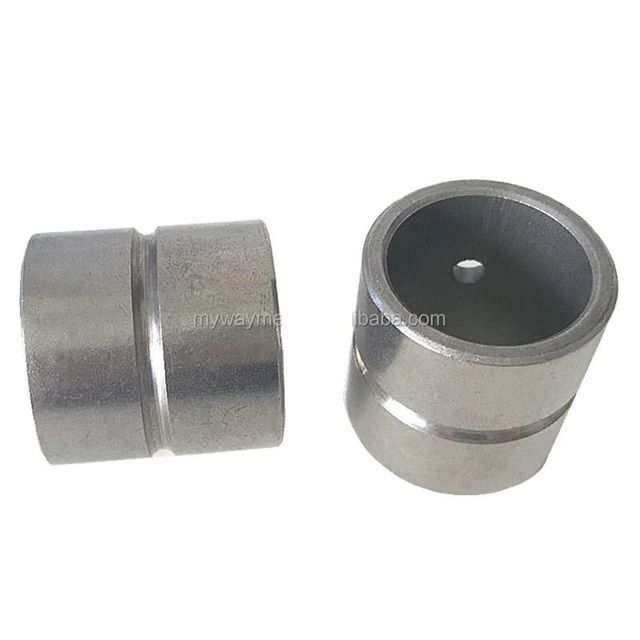

FU sintered powder metallurgy oil-free sliding self-lubricating bearing bushing

Supplier: Jiaxing Myway Metal Co., Ltd.
Region: Zhejiang, China
Contact: Mr Ivan Ivan
Price: $0.04 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

model:	blessing	Applicable industries:	Mechanical repair shop, construction work
Material:	steel	port:	Shanghai, Ningbo
Accuracy class:	accurate	Origin:	Zhejiang, China
payment terms:	L/C, T/T	Supply capacity:	1,000,000 pieces per day
Packaging Details:	export standard packaging	type:	sliding
brand:	my way	Package:	boxed+carton+pallet
Certificate:	ISO9001:2008

Product parameters

Performance			data
Maximum load capacity	static load	120N/mm2
Maximum load capacity		dynamic load	40N/mm2
V Maximum sliding speed			2.0m/s
Maximum PV limit			2.8 N/mm²·Multiple sclerosis
coefficient of friction			0.05-0.22
Operating temperature			-100℃—+200℃
Thermal Conductivity			60W/m^-6/K
Thermal expansion coefficient			15×10^-6/K

Fu-1 copper-based oil-impregnated bearing is made of tin bronze powder as raw material, pressed by mold and sintered at high temperature. It has fine and evenly distributed pores, and forms an oily state after vacuum impregnating lubricating oil. This product has the characteristics of short-term lubrication, low cost, and high precision of inner and outer diameters, and is suitable for use at medium speed and low load. Products have been widely used in micro motors, household appliances, electric tools, textile machinery, chemical machinery, automobile industry and office equipment and other occasions.

product information
