Powder Metallurgy Bronze Fan Bearing 081006 081010 081015 081106 081108 Motor Bronze Bushing, Bronze Gelenklager

Supplier: Hunan Jintai Hardware And Machinery Co., Ltd.
Region: Hunan, China
Contact: Mr Jin Luo
Price: $0.05 /piece
Min. Order: 1 piece

Click here to contact

Product details

type:	Slides, Sleeves, Flanges, Rings, Plates, Washers, Strips	Sales:	Hot sale, good sale, from China to all over the world
Accuracy class:	r8, js13	model:	FU sintered, sintered bronze bushing
lubricating:	Graphite, Carbon, Oil Free, POM, PTFE, Teon, Dry, Oil, Grease	Supply capacity:	10000 pieces per day
place of origin; place of origin:	Hunan, China	payment terms:	L/C,D/A,D/P,T/T,Western Union,Credit Card
feature:	Wear-resistant, dry, low-resistance, hardened, maintenance-free	sample:	For sellers, standard size is free, non-standard charges
Material:	Brass, Bronze, Copper, Steel, Stainless Steel, Aluminum, Bimetal, Graphite	Packaging Details:	1. Anti-rust oil 2. Roller outer packaging plastic film 3. Roller outer plastic bag 4. Carton with product information label 5. Tray per 12ctns/24ctns/36ctns
Related models:	DU,SF-1,DX,SF-2,FB090,FB092,JF800,JDB,JDC,FU,FR,FZ	port:	Shanghai
Applicable industries:	manufacturing plant	finishing:	Tin-plated, brass-plated, rust-proof
custom made:	Available as drawings or samples	brand:	JTB,OEM
standard:	DIN1494,ISO3547,ISO2795,EN,JIS,ANSI/ASME

FU 050905 Sintered Bushing, Flanged Bushing, High Quality Sleeve Bearing

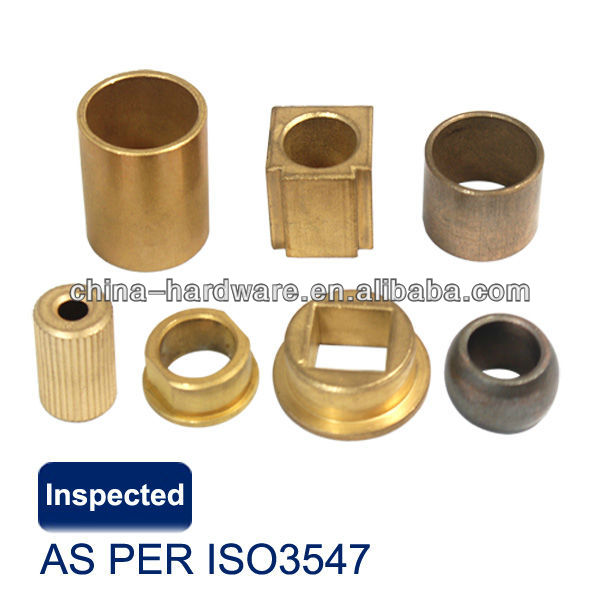

FU oil sintered plain bearings

What is FU oil sintered bearing?

Sintered bronze bearings are self-lubricating and maintenance-free. Sintered bronze/iron bushings consist of a porous bronze matrix impregnated with lubricant. The allowable sliding speed of the sintered bronze/iron bushing is very high, which makes the bushing suitable for rotating applications.

We offer a full range of plain and flanged cylindrical bushings to ISO 2795 standards.

where to useFU oil sinteringBearings?

Sintered bushings are best suited for rotary motion and applications requiring high self-lubricating properties.

Application examples are as follows:

Electronic equipment
household equipment
printing machines
machine tool

Why you chooseFU oil sinteringBearings?

very high sliding speed
No need for external lubrication
Maintenance-free operation
good friction properties

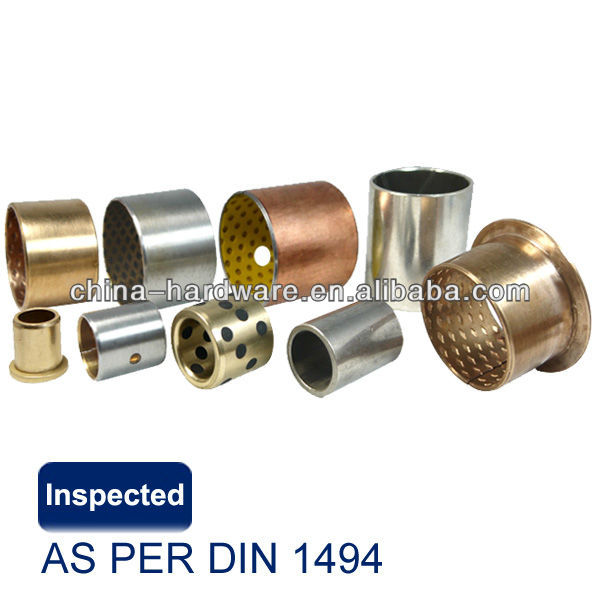

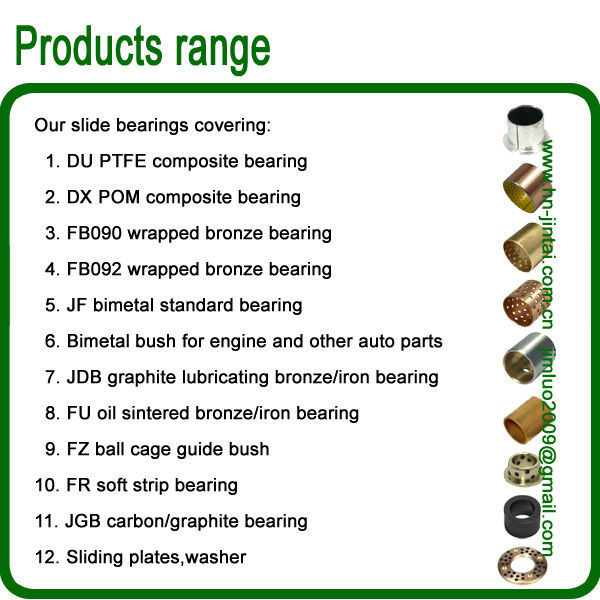

What other bearings we can offer you:

Our plain bearings include:

SF-1(du) Oilless Bearing Bushings (PTFE Composite)

SF-2(dx) plain bearing bushing (POM composite)

FB090(FB090G) Bronze Bushing

FB092 bronze bushing

JDB, JFB solid graphite lubricating bushing

JF bimetal bushing

FU sintered bronze or iron bushing

FZ POM/Al/Cu Ball Cage

FR metal mesh + PTFE soft strip

JGB graphite bearing

What sizes of bearings can we offer you?

The standard range of composite plain bearings is very comprehensive and covers almost all standard sizes. The range includes straight shaft bushings and flanged bushings, thrust washers and steel strips.

Sleeve Bearing:

model.	minute. ID	Minimum outer diameter	Max ID	outer diameter	maximum. length
DU, SF-1	6mm	8mm	300mm	305mm	100mm
DX,SF-2	10mm	12mm	300mm	305mm	100mm
JF800	10mm	12mm	173mm	180mm	100mm
FB090	10mm	12mm	300mm	305mm	100mm
FB092	10mm	12mm	300mm	305mm	100mm
JDB, JCB	8mm	12mm	160mm	180mm	150mm
Fu	1.5mm	3mm	50mm	70mm	70mm
Japanese national standard	1.5mm	3mm	300mm	320mm	100mm

ID = inside diameter

OD = outer diameter

Flange bearing:

model.	minute. ID	Minimum outer diameter	Max ID	outer diameter	Minimum FD	Max FD	maximum. length
DU, SF-1	6mm	8mm	40mm	44mm	12mm	53mm	40mm
JF-800	40mm	46mm	95mm	105mm	60mm	144mm	127mm
FB090	25mm	28mm	300mm	305mm	35mm	340mm	90mm
FB092	25mm	28mm	300mm	305mm	35mm	340mm	90mm
Jia Duo Bao	10mm	14mm	120mm	140mm	22mm	170mm	100mm
Fu	6mm	12mm	50mm	60mm	14mm	70mm	70mm
Japanese national standard	6mm	12mm	300mm	320mm	35mm	340mm	130mm

ID = inside diameter

OD = outer diameter

FD = flange diameter

Oil sintered bearing standard size table for your reference

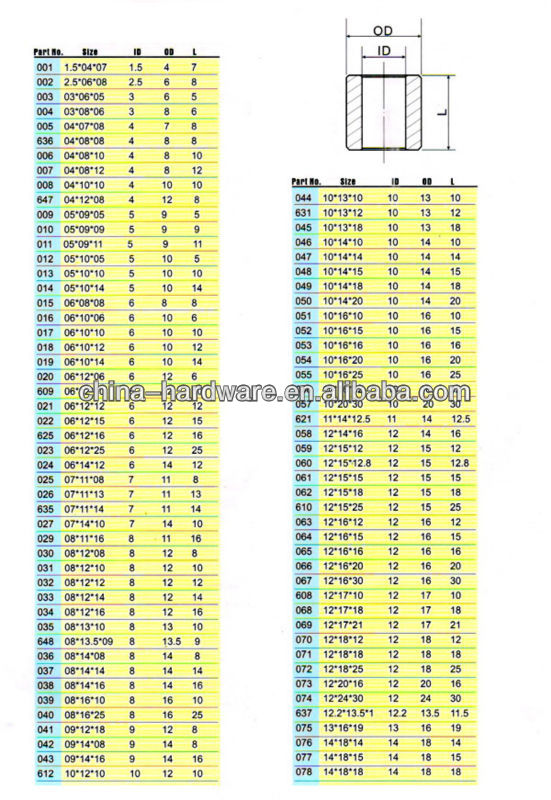

sleeve bushing

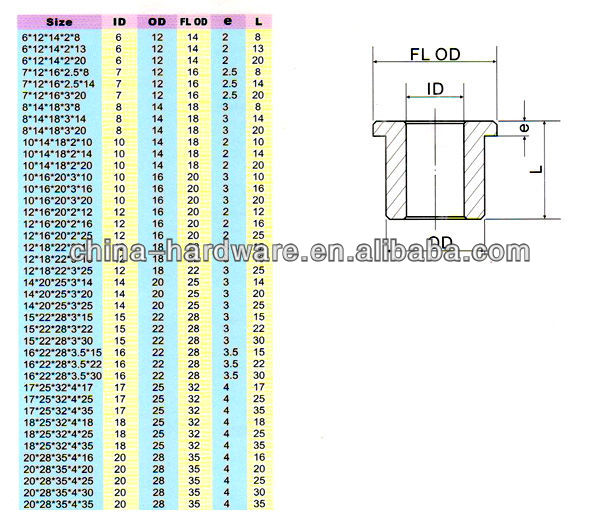

Flange bushing

Our general introduction

We are a professional manufacturer of various bearings in China with more than 14 years of history.

With updated machines and skilled employees, we have provided stable and high-quality products to customers all over the world.

Our experienced engineers and export team can answer your inquiries or comments at the first time, and provide professional services from factory tour, order placement to shipment.

At present, we have more than 100 skilled employees and different types of machines, including automatic production lines, post-processing machines, milling machines, CNC machines, etc.

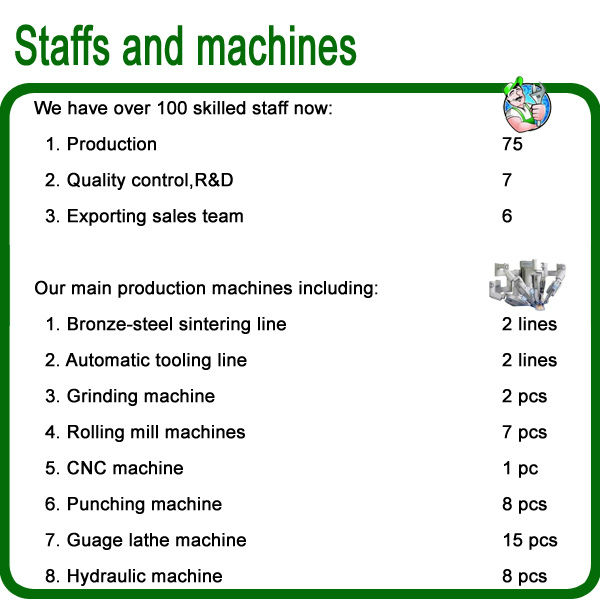

This picture shows our staff structure and basic machine list

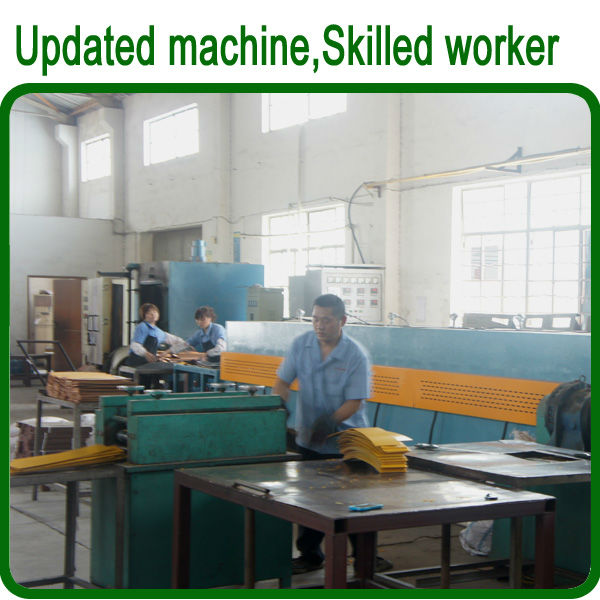

This photo shows the updated sintering machine and skilled workers in production

We welcome you to visit our workshops:

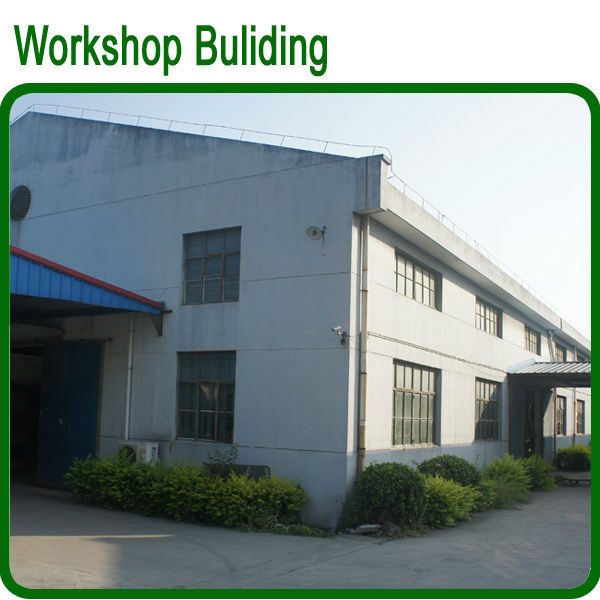

This is our workshop building

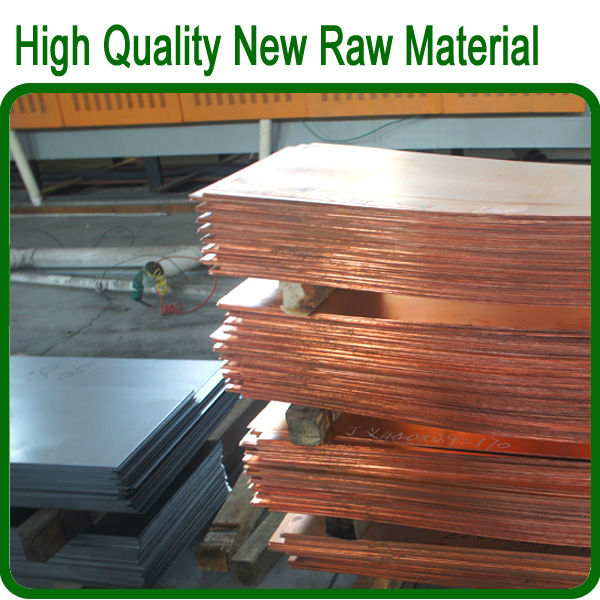

We only use brand new high quality raw materials.

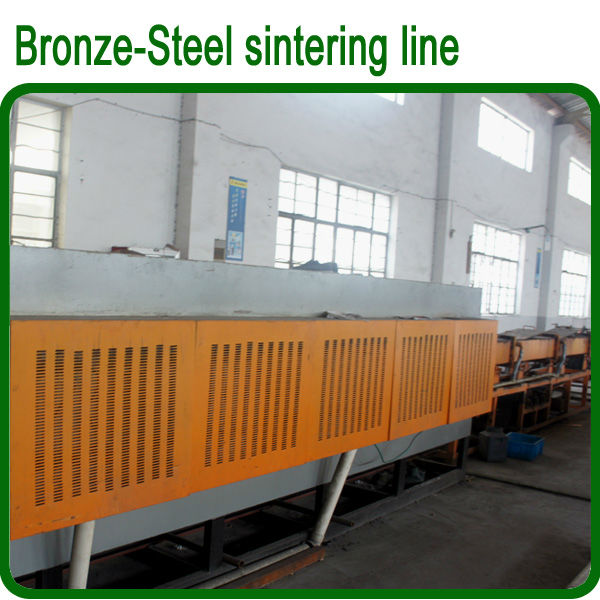

This is bronze powder steel backed sintering wire

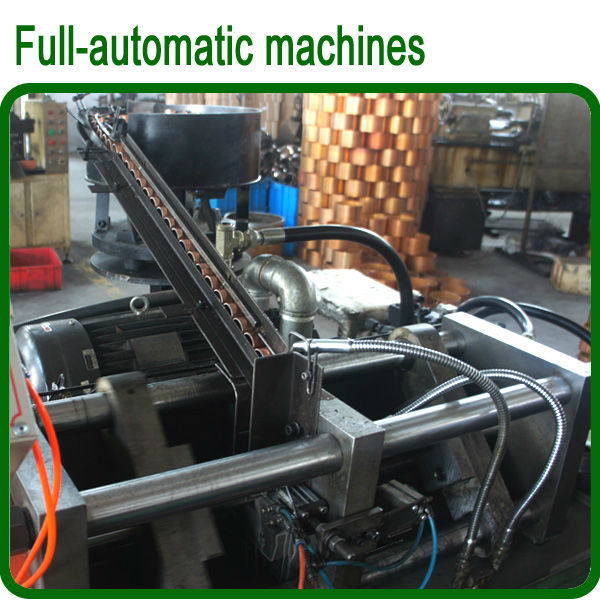

This is a fully automatic chamfering machine

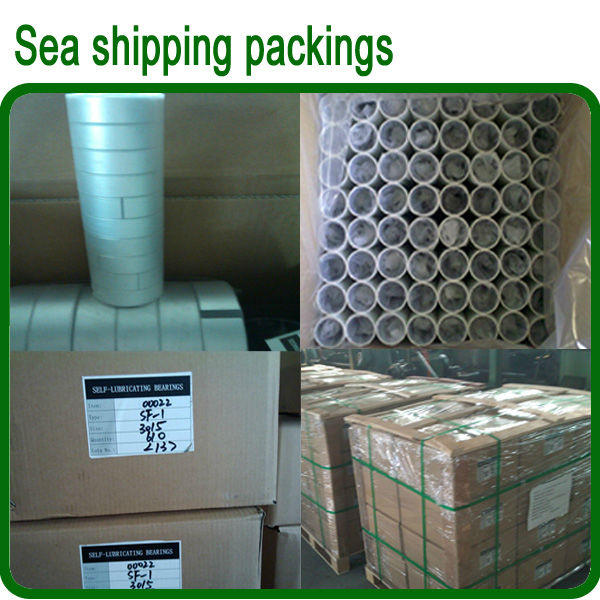

Detailed packaging steps:

1. Clean the bearing with anti-rust oil
2. Plastic film wrapping the bearing to the roller
3. Put the bearing roller into a plastic bag
4. Carton with product information label
5. Tray per 12ctns/24ctns/36ctns

Our packaging is suitable for FCL or LCL sea freight.
