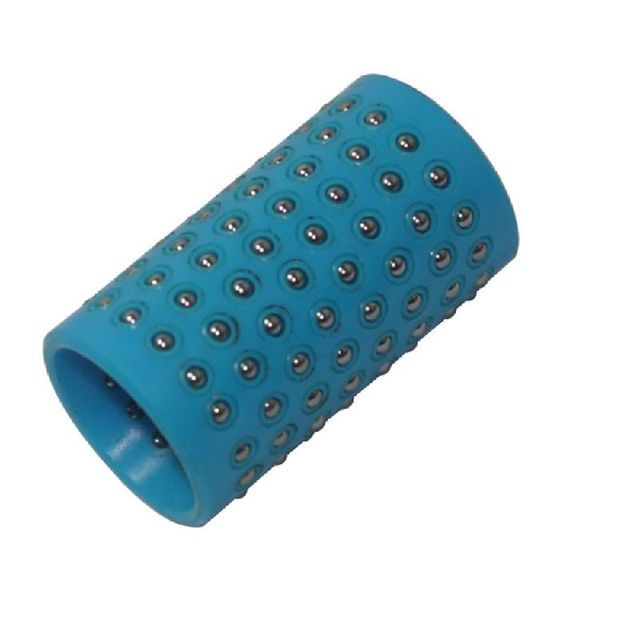

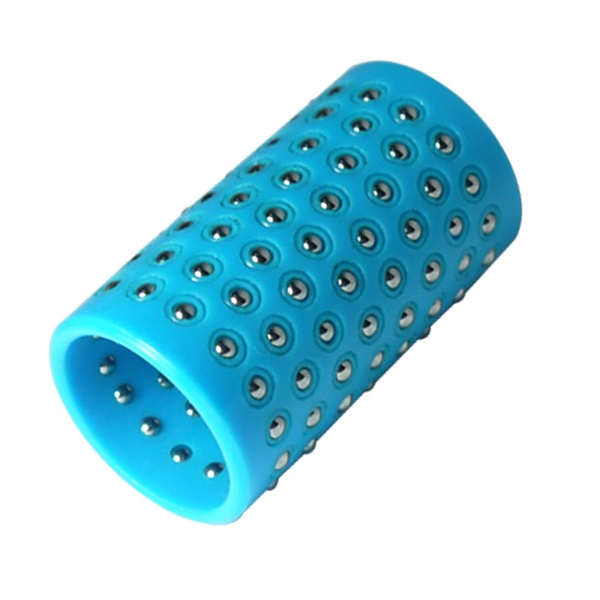

sliding plastic cage, plastic ball cage, ball cage

Plain Bearing/Brass Bushing/Plain Bearing

1. Brief introduction of oil-impregnated sintered bearings

1.1 Sintered bronze bearings are self-lubricating and maintenance-free. Sintered bronze bushings consist of a porous bronze matrix impregnated with lubricant. The permissible sliding speed of sintered bronze bushings is very high, which makes the bushings suitable for rotating applications.

1.2 We supply a full range of plain and flanged cylindrical bushings to ISO 2795.

2. Features and advantages

2.1 Very high sliding speed

2.2 No external lubrication required

2.3 Maintenance-free operation

2.4 Good friction performance

3. Material

3.1 Sintered bronze/iron consists of sintered metallic bronze or iron powder with fully impregnated porosity.

3.2 The material composition is bronze or iron or bronze iron, with a porosity of 12%-18%, impregnated with mineral oil.

3.3 Machining or grinding of the bearing surfaces of porous sintered bushings is not recommended due to the risk of closing the bearing bore.

4. Application

4.1 The sintered bronze bushing is most suitable for occasions requiring high rotary motion and self-lubricating performance.

4.2 Application example:

4.2.1 Electrical equipment such as toys

4.2.2 Household equipment such as fans

4.2.3 Printing machinery

4.2.4 Machine tools, electric tools

5. Lubrication

5.1 When storing and installing, make sure that the bushing never comes into contact with any absorbent material, as this may drain the oil very quickly.

5.2 It is therefore recommended to keep the bushings in their original packaging for as long as possible.

5.3 No additional lubrication is normally required.

6. Specifications

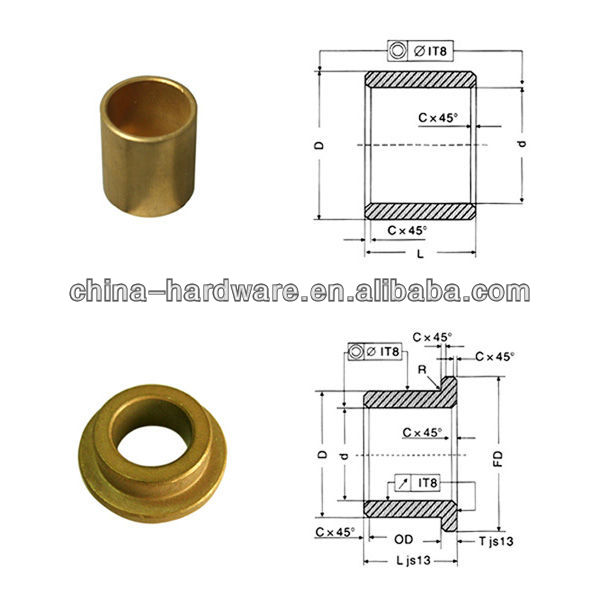

7. Standard type

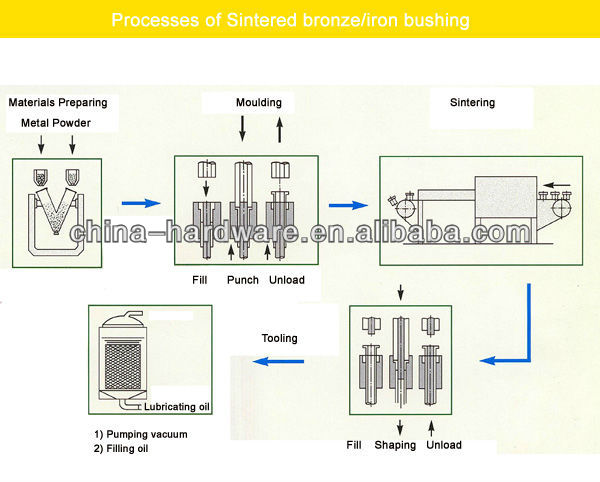

8. Production method

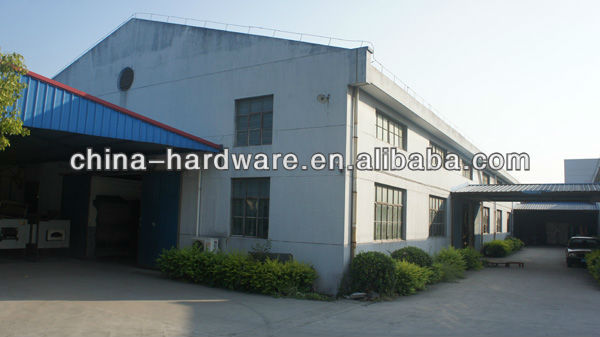

9. Plants

10. Packaging:

11. Other bearings are optional

11.1 SF-1(du) oil-free bearing bushing (polytetrafluoroethylene composite material)

11.2 SF-2(dx) plain bearing bushing (POM composite material)
11.3 FB090(FB090G) bronze bushing
11.4 FB092 Bronze bushing
11.5 JDB, JFB solid graphite lubricating bushing
11.6 JF bimetal bushing
11.7 FU Sintered bronze or iron bushing

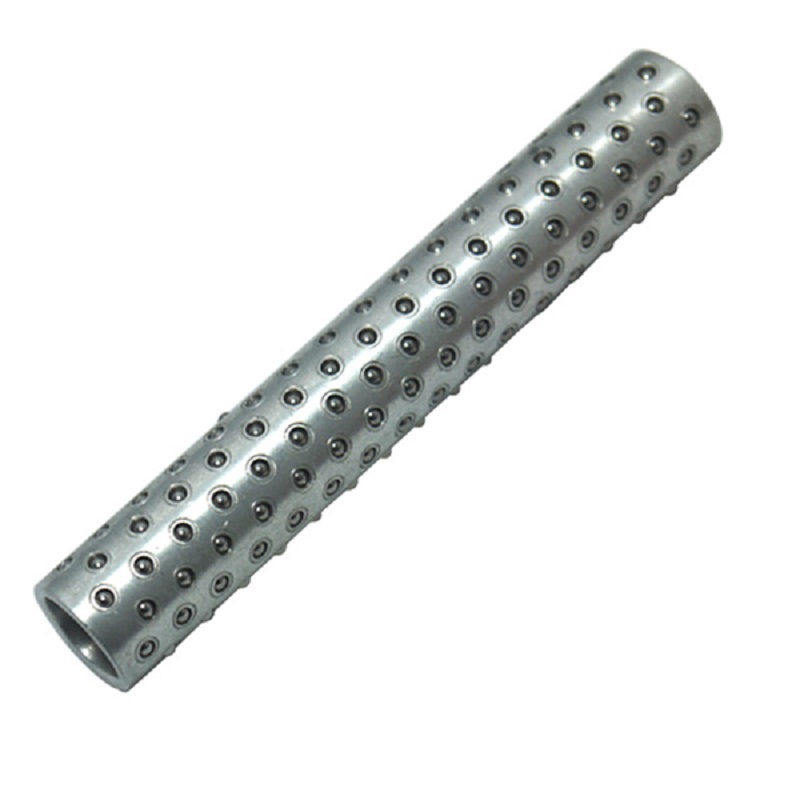

11.8 FZ POM/Al/Cu ball cage
11.9 Flame-retardant metal mesh + PTFE soft strip

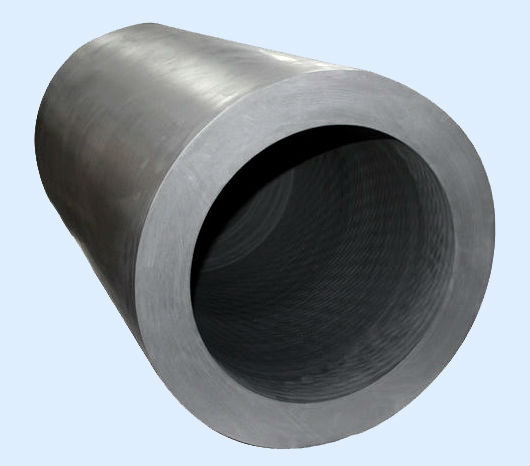

11.10 JGB Graphite Bearings

Oil sintered bushing/graphite bronze bushing/wound bronze bushing/DX composite bushing/bimetallic bushing/graphite bearing

12. We can also customize the casing according to your drawings or samples.

Welcome to inquire, so that we can provide you with relevant information as soon as possible!
