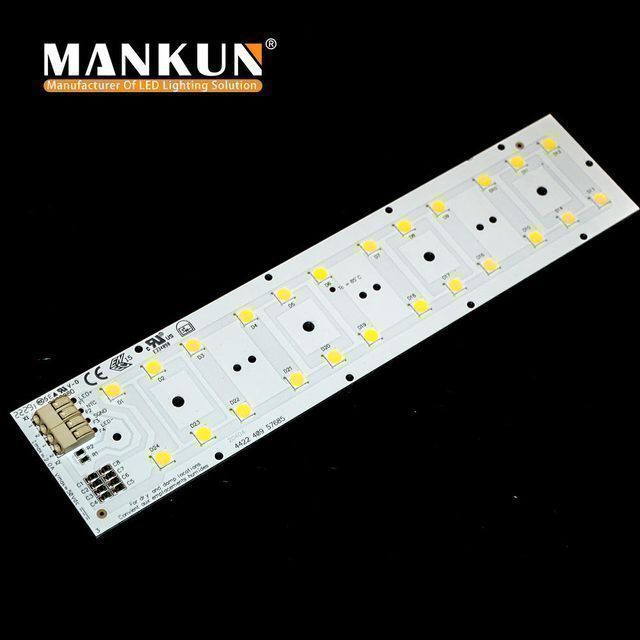

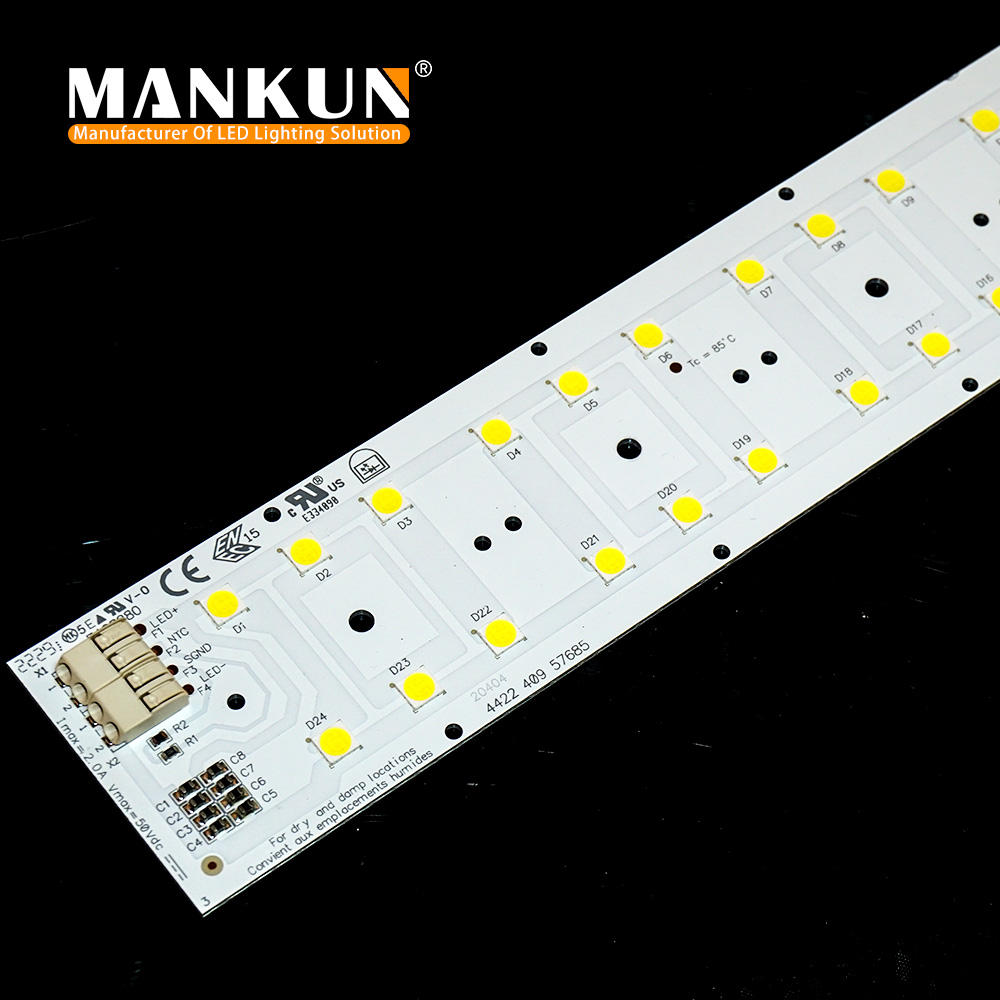

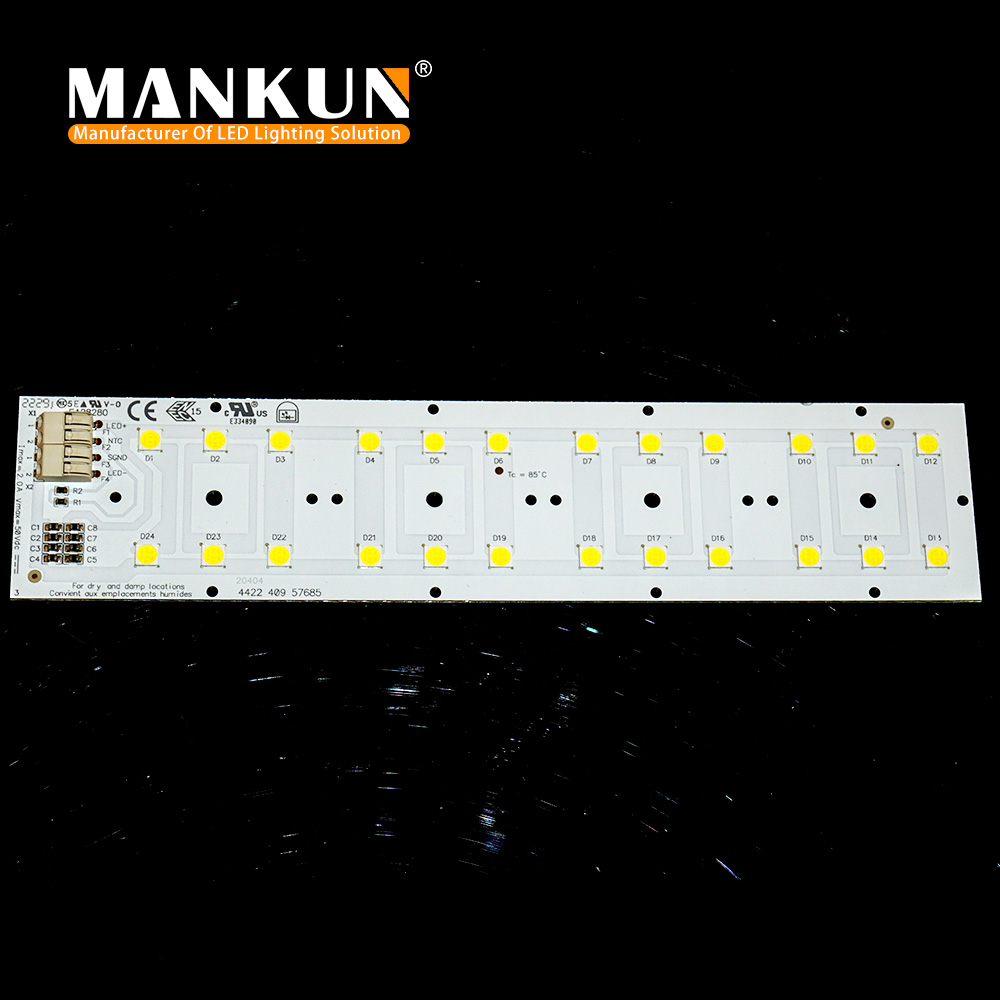

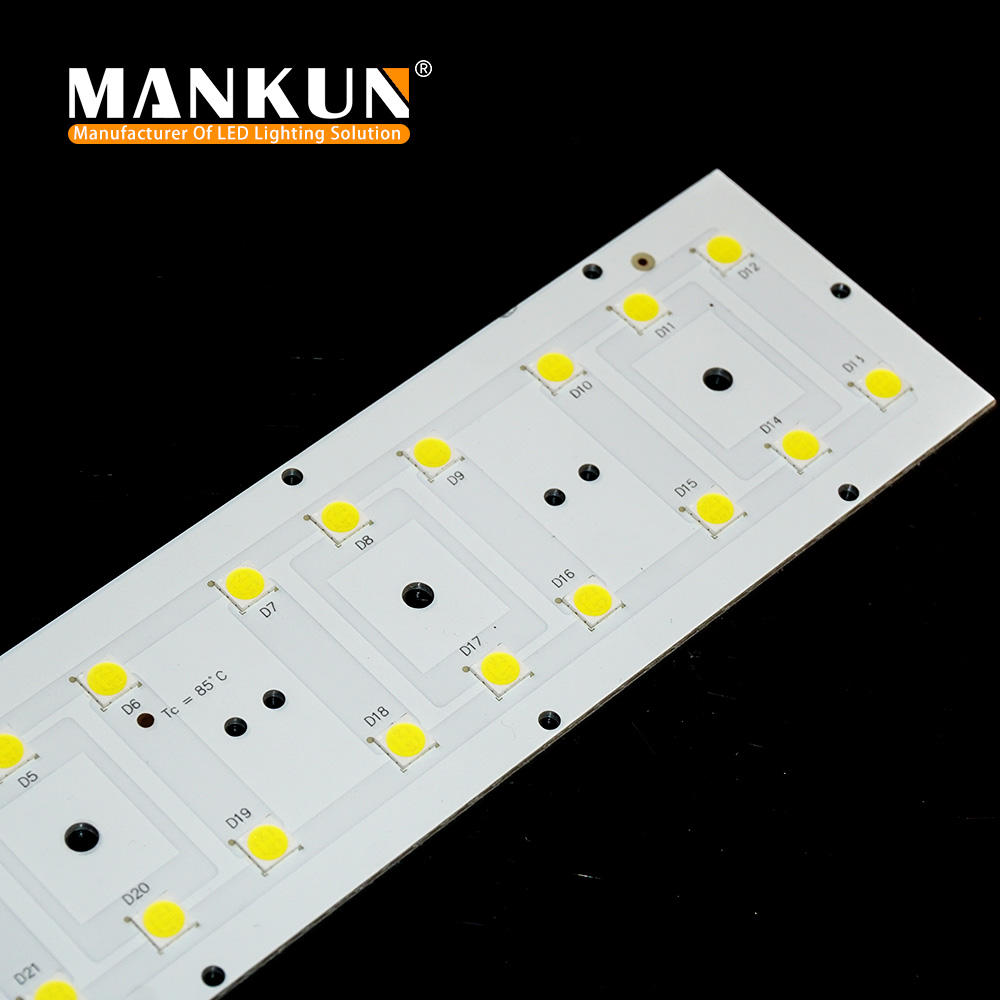

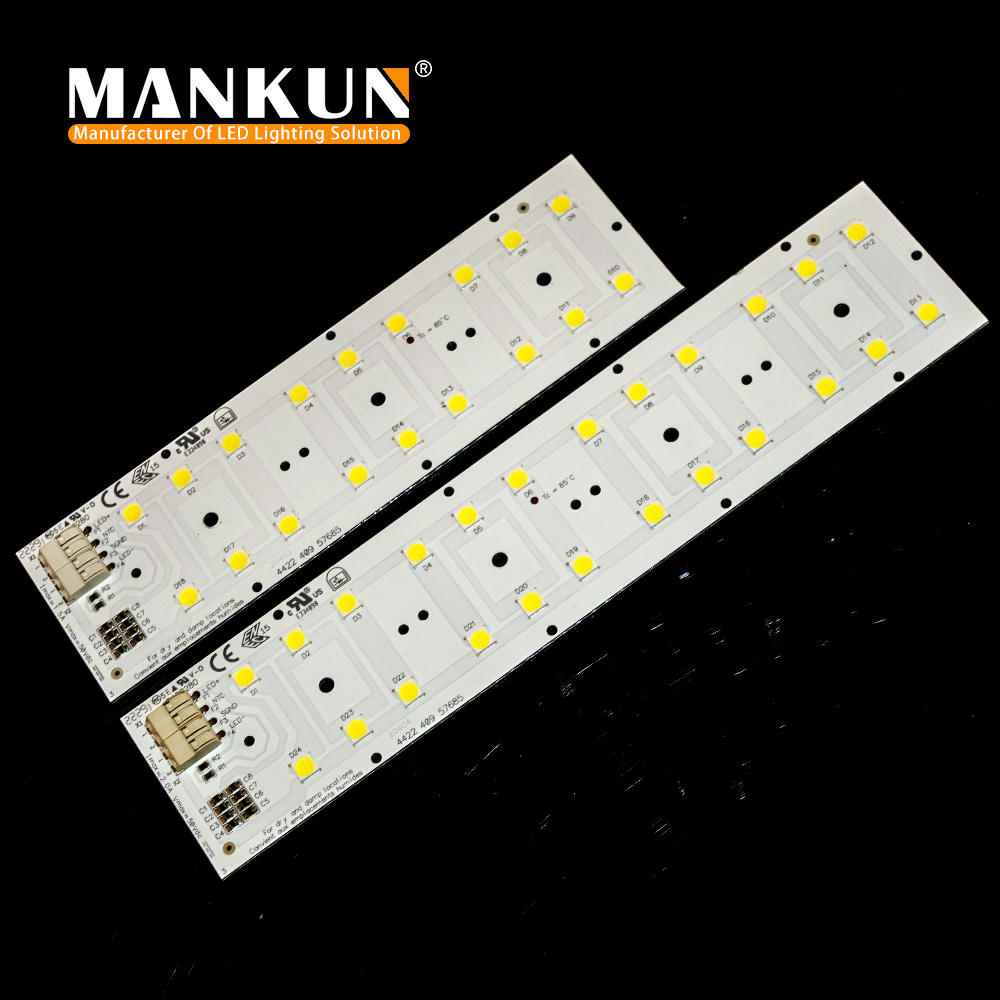

SMD5050 7700 lm aluminum plate flood tunnel light street light led module pcb

Supplier: Mankun Electronic Co., Ltd.
Region: Guangdong, China
Contact: Ms Belinda hu
Price: $1.00 / 10000 - 19999 square meters
$0.80 / 20000 - 29999 square meters
$0.50 / >=30000 square meters
Min. Order: 10000 square meters

Click here to contact

Product details

payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Key words:	LED circuit board customization
Plate thickness:	1.6mm	application:	light
Silk screen color:	green. Red. blue. white. Black. Yellow	Supply capacity:	1,000,000 pieces per month
Material:	aluminum	Substrate:	Al
MOQ:	3000 sets	place of origin; place of origin:	Guangdong, China
model:	AL20404	Solder Mask:	green. Red. blue. white. Black. Yellow
Package:	vacuum	Packaging Details:	Vacuum
Minute line spacing:	5000000	Testing service:	100% electronically tested
Surface treatment:	OSP	brand:	Man Kun
Copper thickness:	1 oz	port:	Guangzhou
Serve:	One-stop service	Minute line width:	5000000
Certificate:	ISO9001/Iso14001/CE/ROHS	Board Dimensions:	OEM production
Minute Hole Size:	0.3mm	Types of:	Aluminum plate

Factory advantage

Factory strength

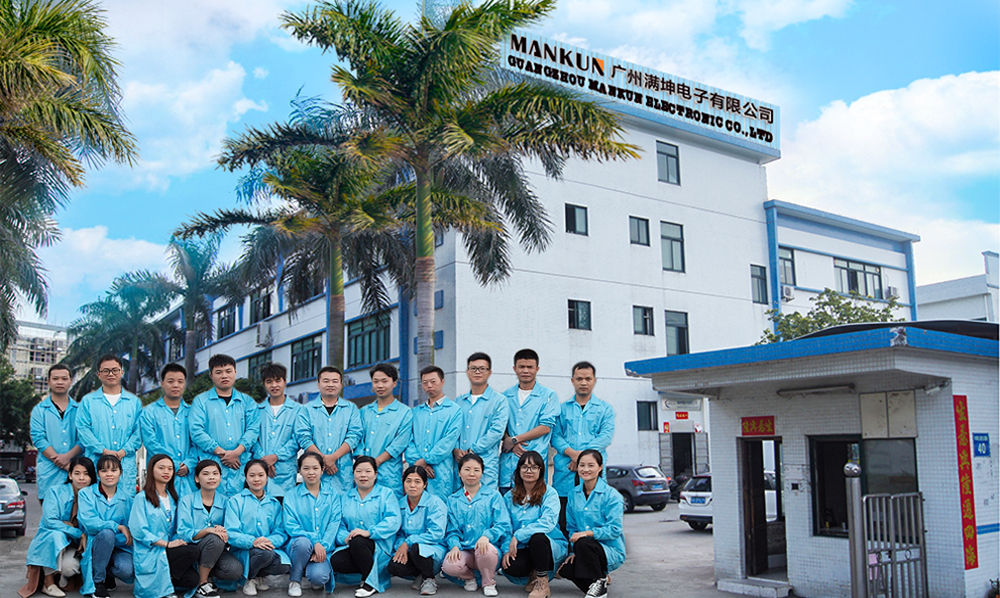

Man KunElectronics Co., Ltd. Shenzhen Guangtong Electronic Technology Co., Ltd. was established in August 2005. It is a modern high-tech enterprise specializing in LED lighting PCB R&D, production and sales.

With a number of imported automatic production lines, strict management system and excellent technical research and development and management personnel, Taiwan Mankun Electronics Co., Ltd. was established in February 2008.

Product Description

product description

*Place of Origin: Guangdong, China *Brand Name: mankun *Certification: ce, RoHS *Model: AL15844 *MOQ: 3000 sets *Price: Negotiable *Packing Details: Negotiable *Delivery Time: 5-30 working days *Payment Terms : Negotiation*Supply Ability: 50000pcs/item per month

surface:			LF HASL, Immersion Gold, Immersion Silver, OSP
layer:			Single-sided, double-sided multi-layer and special structure
Maximum PCB size:			240mm1490mm or 4901190mm
Insulation Thickness:			50/75/100/125/150/175/200 (um)
Metal Material:			Aluminum (1100/3003/5052/6061), Copper Aluminum/FR4/CEM-1/CEM-3
Shaping:			Die/CNC Route/V-Cut
Solder Mask:			Green/White/Black/Red/Yellow
Screen color:			blue/white/black/red/yellow
Special holes:			Countersink/Cup Hole/Buried Hole/Buried Groove
file format:			Gerber, Protel, PowerPCB, AutoCAD, etc.

If the driving power exceeds 20 watts, the lamp module needs to be mounted on a heat sink with thermal interface material between them. The module may be hot to the touch. Handle with care.
