China 94v0 LED PCB manufacturing PCBA prototype cheap price LED led pcba panel SMD light circuit PCB

Supplier: Shenzhen Moko Technology Ltd.
Region: Guangdong, China
Contact: Mr Kevin Xiao
Price: $20.00 / 10 - 999 pieces
$15.00 / >=1000 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Board size:	500-1500mm	Supply capacity:	1,000,000 pieces per month
Color temperature:	2700-8000K	Color rendering index:	70
Base material:	aluminum	LED chip type:	2835, 5630, 5730, 3535, 3030, 5050
Packaging details:	Carton with corner beads (protect inner box) + pre-assembled + padded with foam bags	type:	Aluminum plate
Copper thickness:	0.5-3.0 ounces	Place of origin:	Chinese mainland
Certificate:	ISO9001, UL, CE, ROHS	Product Category:	Aluminum PCB with LED
Warranty:	2-5 years	minute. Line width:	0.2 mm
Package preview:		payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
port:	Shenzhen/Hong Kong	minute. Line spacing:	0.2 mm
PCB solder mask:	white/black	application:	LED light
model:	Aluminum plate	minute. Hole size:	0.2 mm
Plate thickness:	0.4-4.0mm	Surface treatment:	Spray tin, EING, OSP
document:	Gerber file + BOM list	life:	35000-50000 hours
brand:	Processing

Company Profile

We have a R&D team of more than 70 engineers with more than 10 years of LED PCB design experience. We can design a lot
Design different LED PCBs according to customer requirements. They are used in many lights such as UV, room light,
Industrial lights, LED plant lights, aquarium lights, street lights, traffic lights, AC220V driverless LED PCB, RGB LED modules, etc.
Each product combines comfort, safety, ease of use and compatibility. We specialize in LED lighting and work with engineers and
Suppliers address every complex detail to help customers come up with the best solution.

advantage

What services can we provide?

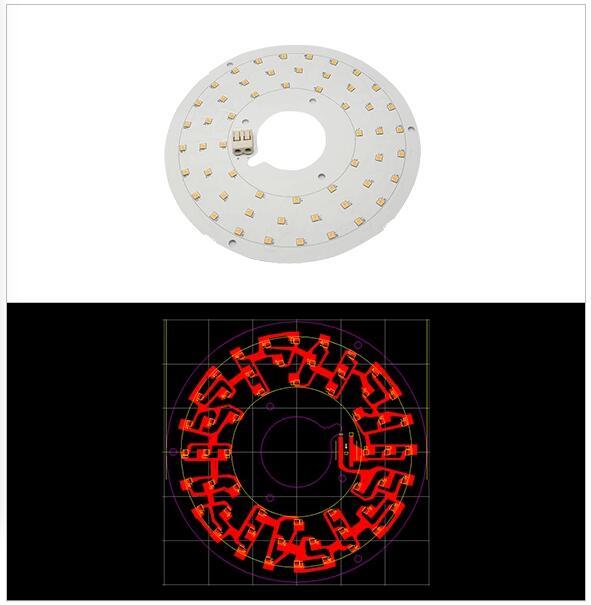

1. LED PCB free design

A. If you don't have Gerber files and BOM list, we can design LED PCB according to your requirements. You only need to provide the size, power, voltage and specifications of the LED chip. The specifications of the LED chip include the type of LED chip, lumens, CCT, and CRI. B. If you have Gerber files and BOM list, please send it to us, we can provide you with OEM service, we focus on LED lights, we can provide you with professional service. All LED chips are 100% original.

2. LED lighting solution provider.

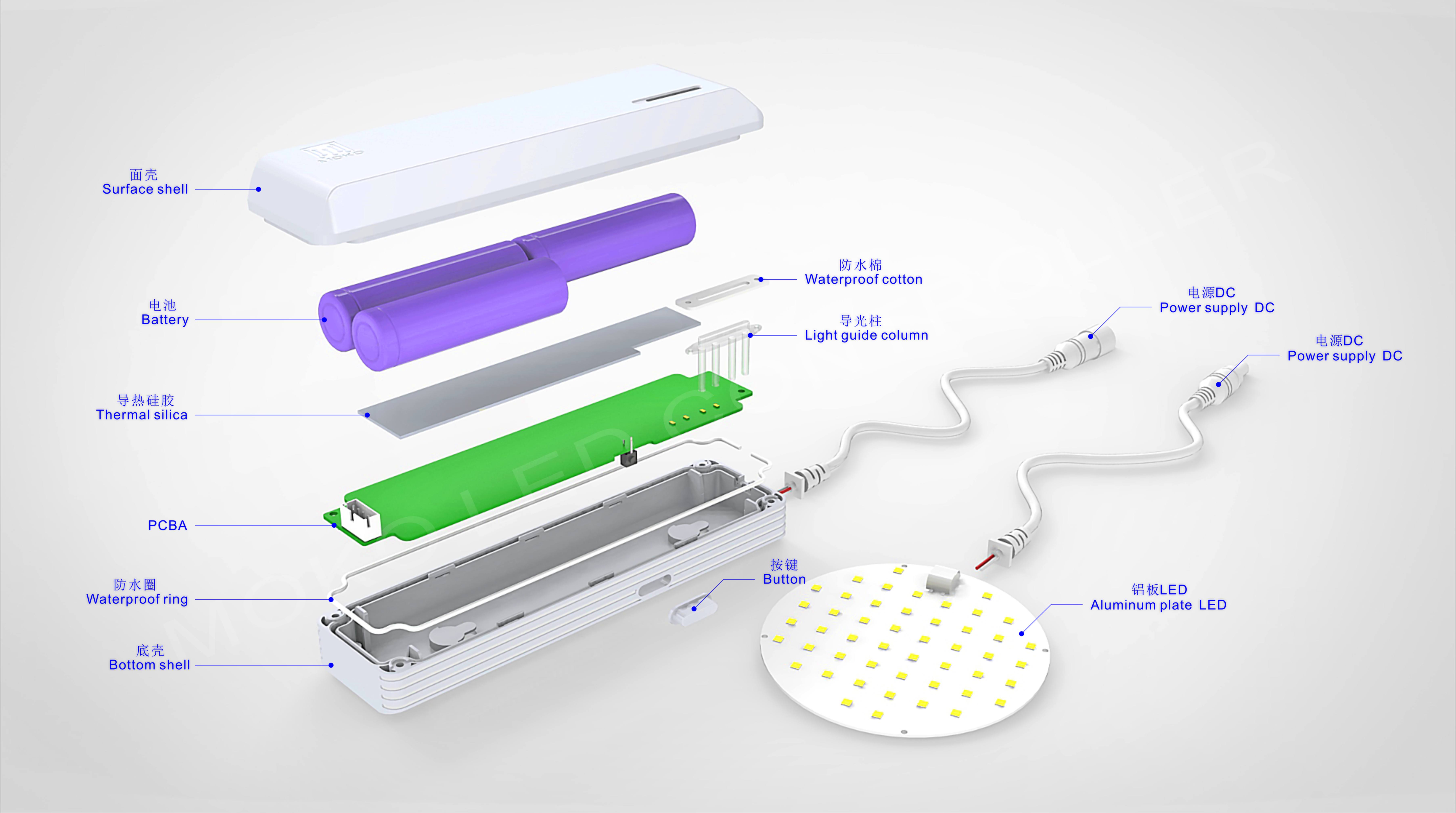

We can provide complete LED light solutions. We can design LED PCB, plastic casing, aluminum casing, heat sink, provide complete LED controller, LED driver. If you want to design special LED lights, we can provide you with one-stop service. For example, Bluetooth/Wifi smart lights, rechargeable desk lamps, low light lights, LED plant lights, line lights or other lights.

3. LED PCB Assembly

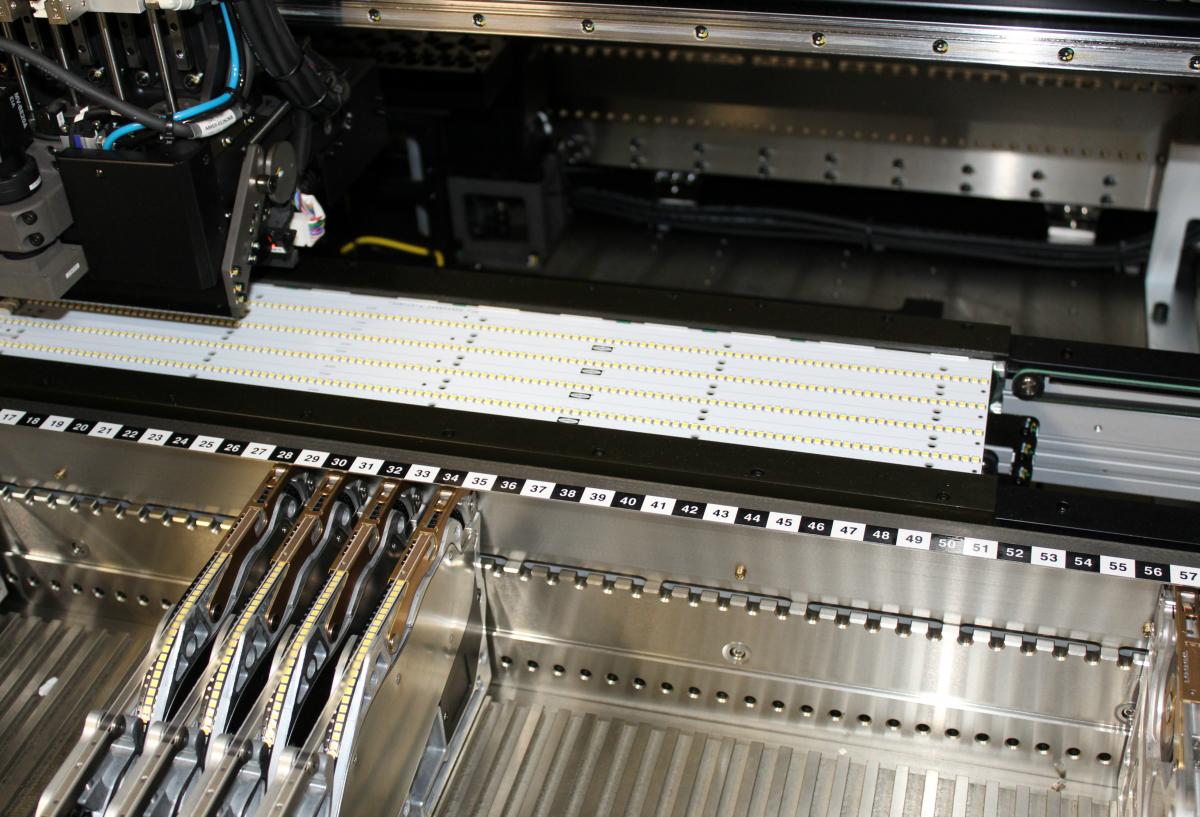

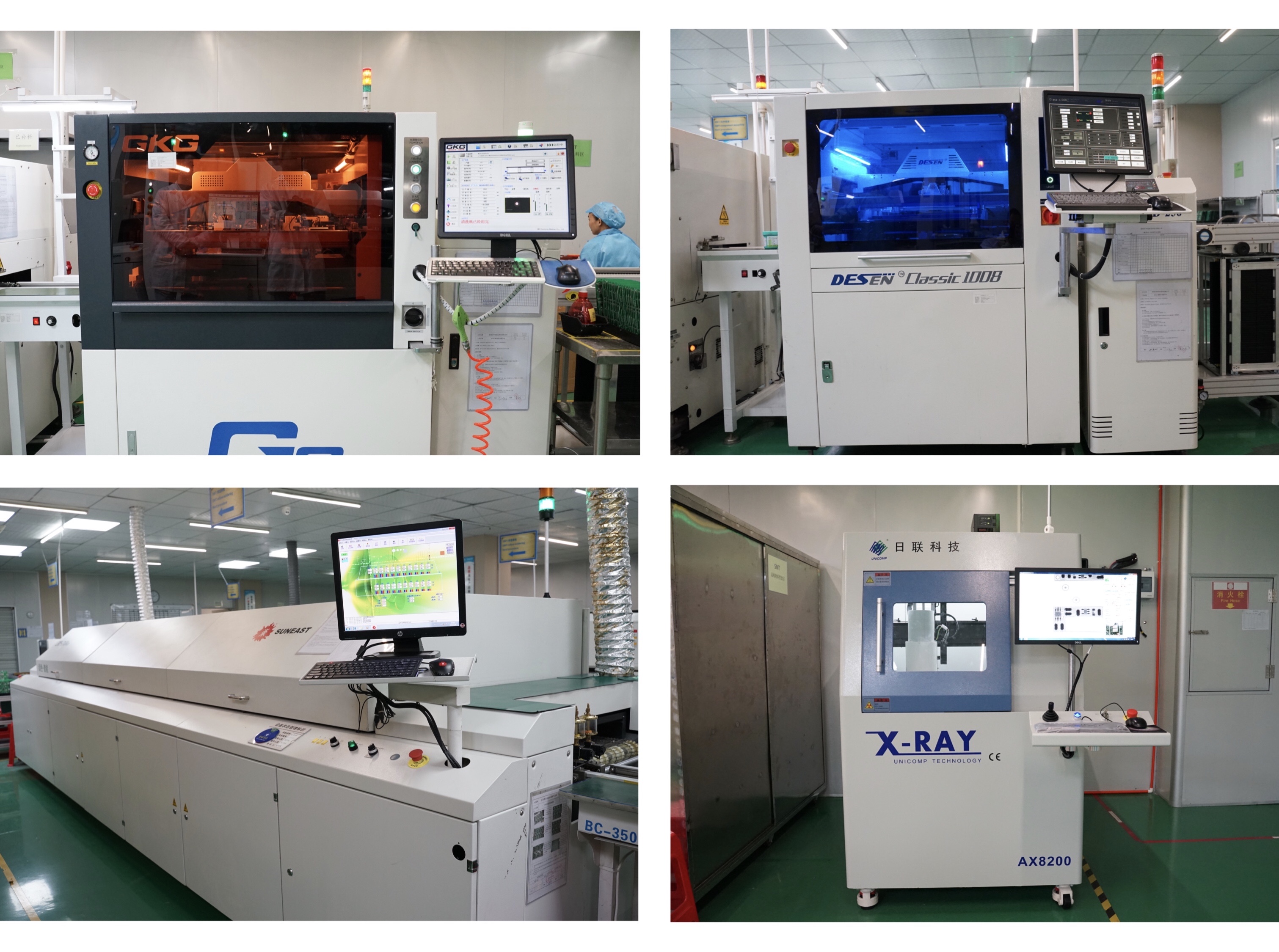

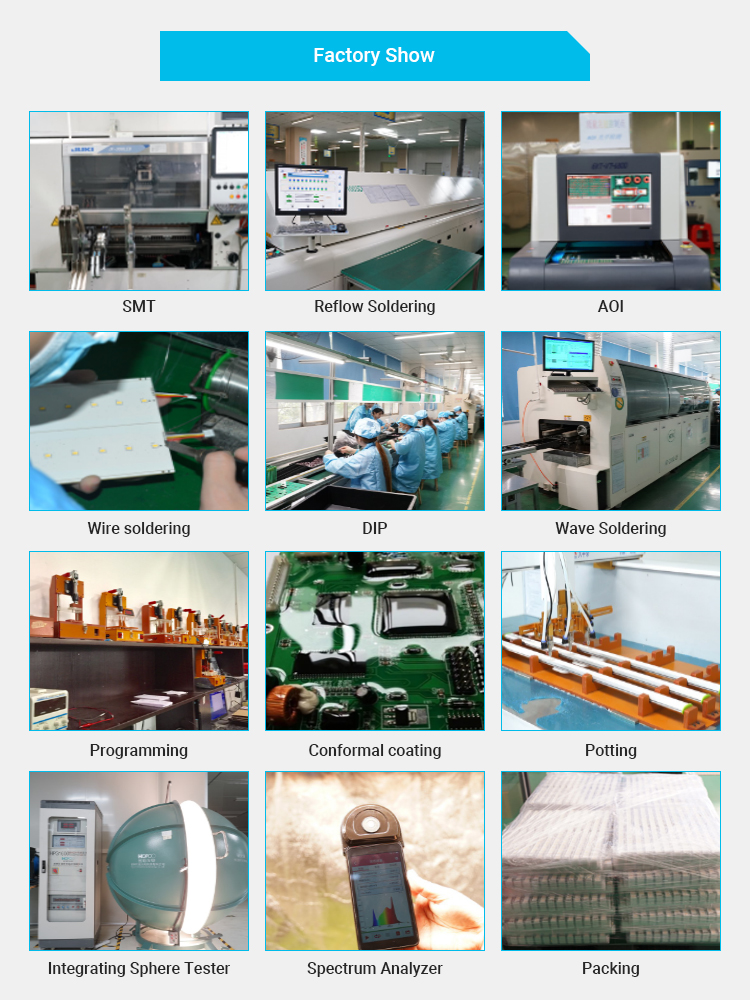

When we complete the design or get the Gerber files and BOM list, we can proceed with SMT and DIP assembly. Our factory has 5 SMT lines, 3 DIP lines and 4 boxing lines, and we can produce LED PCBs, LED controllers, LED drivers and finished lights.

4. LED controller PCB and LED driver PCB assembly

If you have Gerber files and BOM list, we can produce LED controller and LED driver for you. We can source all components, produce FR4 PCBs, and do SMT, DIP, programming, all testing, conformal coating, potting, box molding, box assembly, etc.

5. LED light components

Semi-automatic PET bottle blowing machine bottle machine bottle forming machine PET bottle blowing machine is suitable for producing PET plastic containers and bottles of various shapes.

1. Power 2. Voltage 3. Size 4. Is the PCB base material aluminum or FR4? 5. LED chip information, we must know the type, brand, luminous flux, CCT, CRI, current and voltage of the LED chip. It is best to provide the part number.

thing	scope

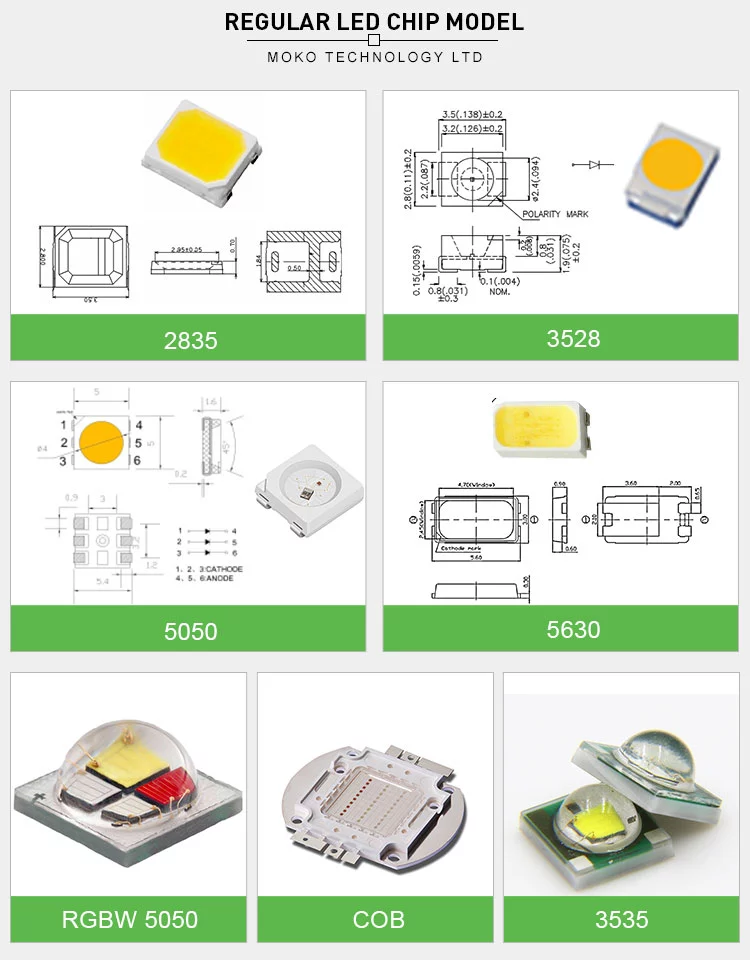

LED chip packaging	2835, 5630, 5050, 5730, 3535, 3030, 3014, 3528, COB, etc.
color rendering index	>95, >80, >70
Luminous flux	100-180 lumens/watt
strength	0.1w, 0.2w, 0.5w, 1.0w, 3w, etc.
current	60 mA, 150 mA, 300 mA, etc.
Voltage	3V, 6V, 9V
brand	Samsung, Osram, Lumileds, Epistar, Sanan, Everlight, etc.

What kind of LED chips do we usually use?

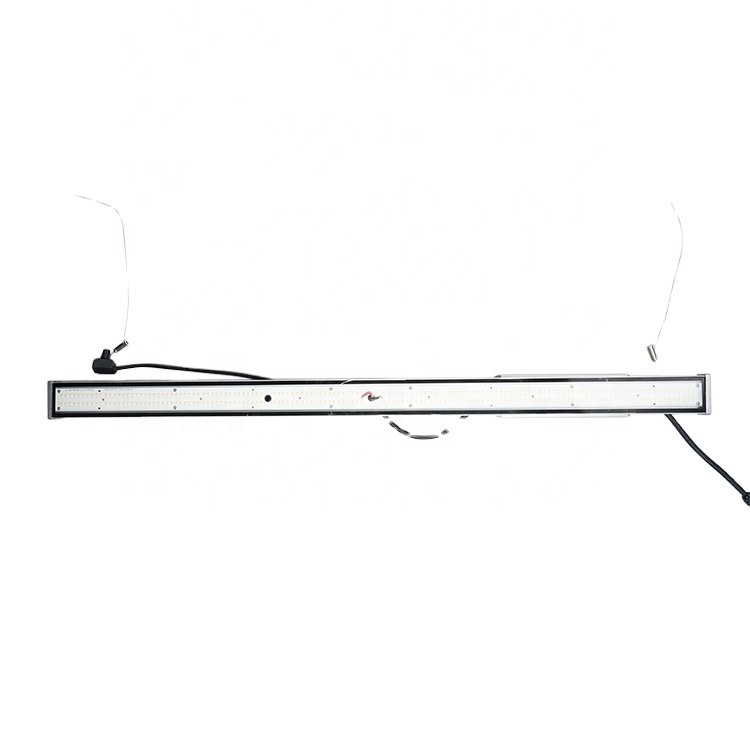

1. If we design LED pcb for grow lights, we often use Samsung LM301B, LM301H, LM301H EVO, Samsung 660nm, OSRAM 660nm, OSRAM IR 730nm, LUMILEDS UV 415nm, Seoul UV 395nm. All LED chips are 100% original. 2. If we design LED PCB for other lights, we often use LED chips from well-known brands such as Epister, Sanan, Everlight, and Hongli. If our customers have special requirements, we will comply with their requirements. We guarantee that all LED chips are 100% original and purchased from official channels. LED chip packages include 2835, 5630, 5730, 3030, 3535, 5050 and COB, etc.

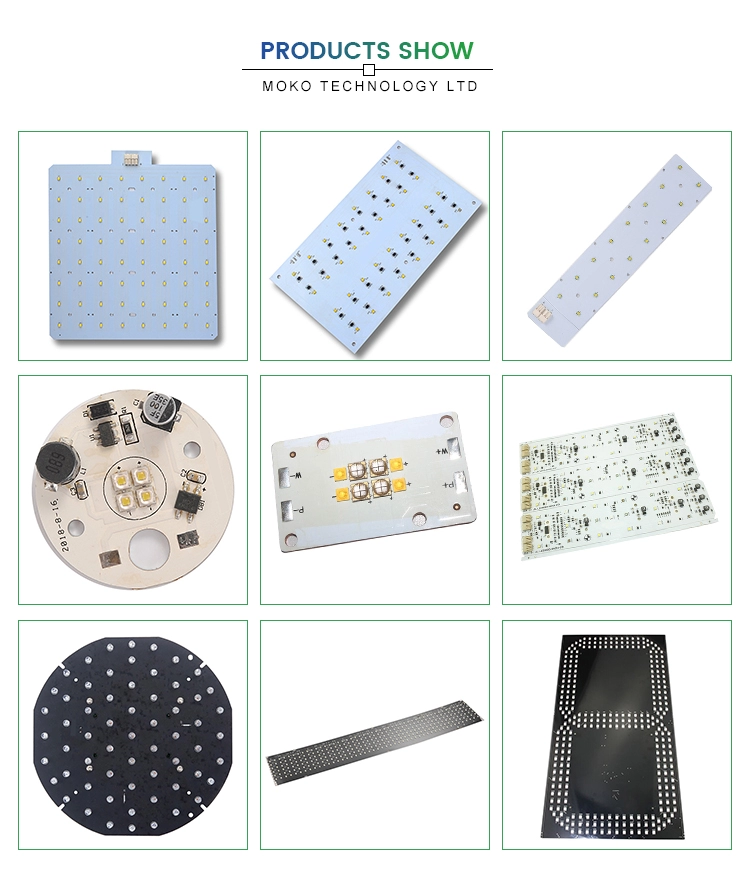

Product display

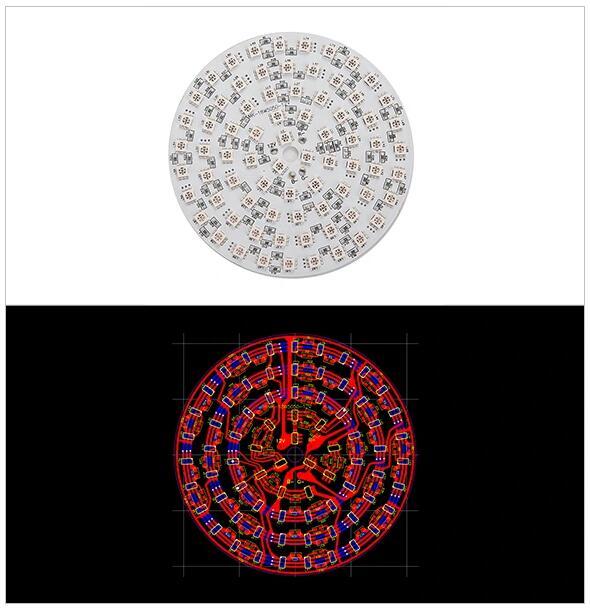

5050 RGB LED PCB for low light environments

Our LED board uses 5050 RGB LED chip, this board is used for low light, it is DC12V. We also soldered waterproof DC cables on it. Our customers love it so much they've been using it for 5 years and it's still working great.

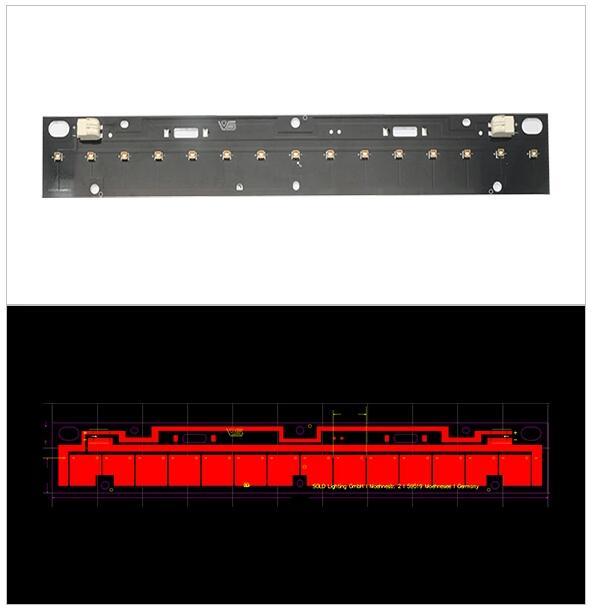

PCB using Nichia LED chips

We use Nichia LED chips for this LED board, and the warranty period is 5 years. This LED board is used for medical lights, our customers have used it for 6 years and the quality is very good.

PCB uses UV395nm Nichia LED chip

This LED board uses UV395nm Nichia LED chip, the price is very high, but the quality is very good.

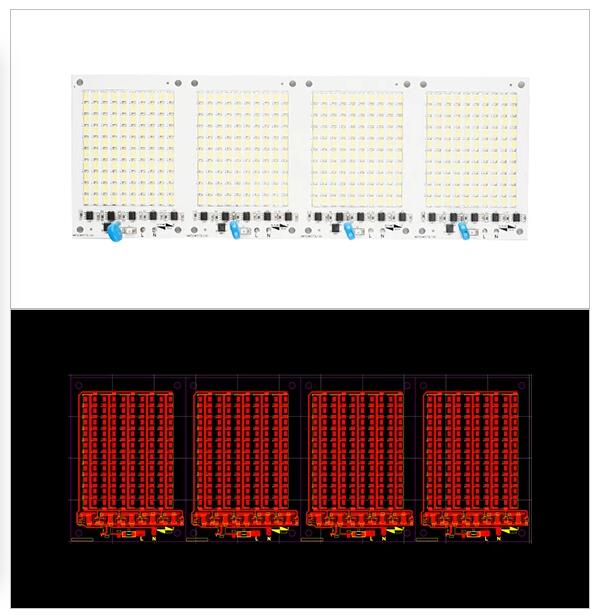

DC220V LED circuit board

This LED board is directly connected to AC220V and used for street lights, because our customers want to save costs, so we use driverless solutions, the quality is very good, and our warranty is 2 years.
