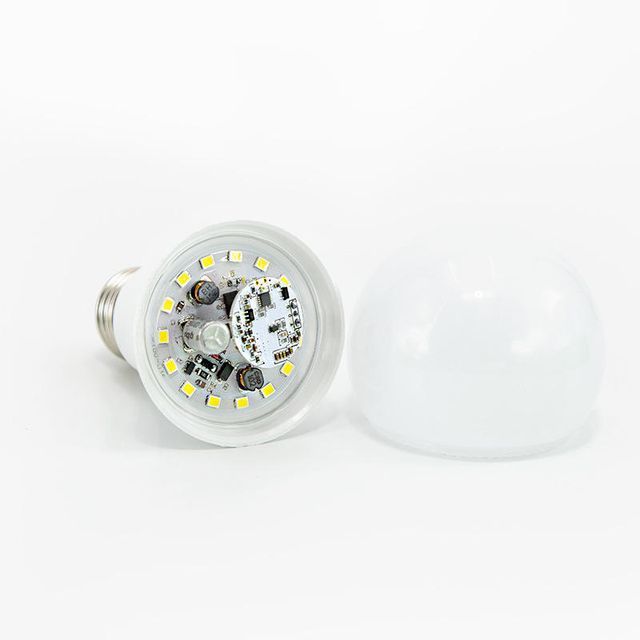

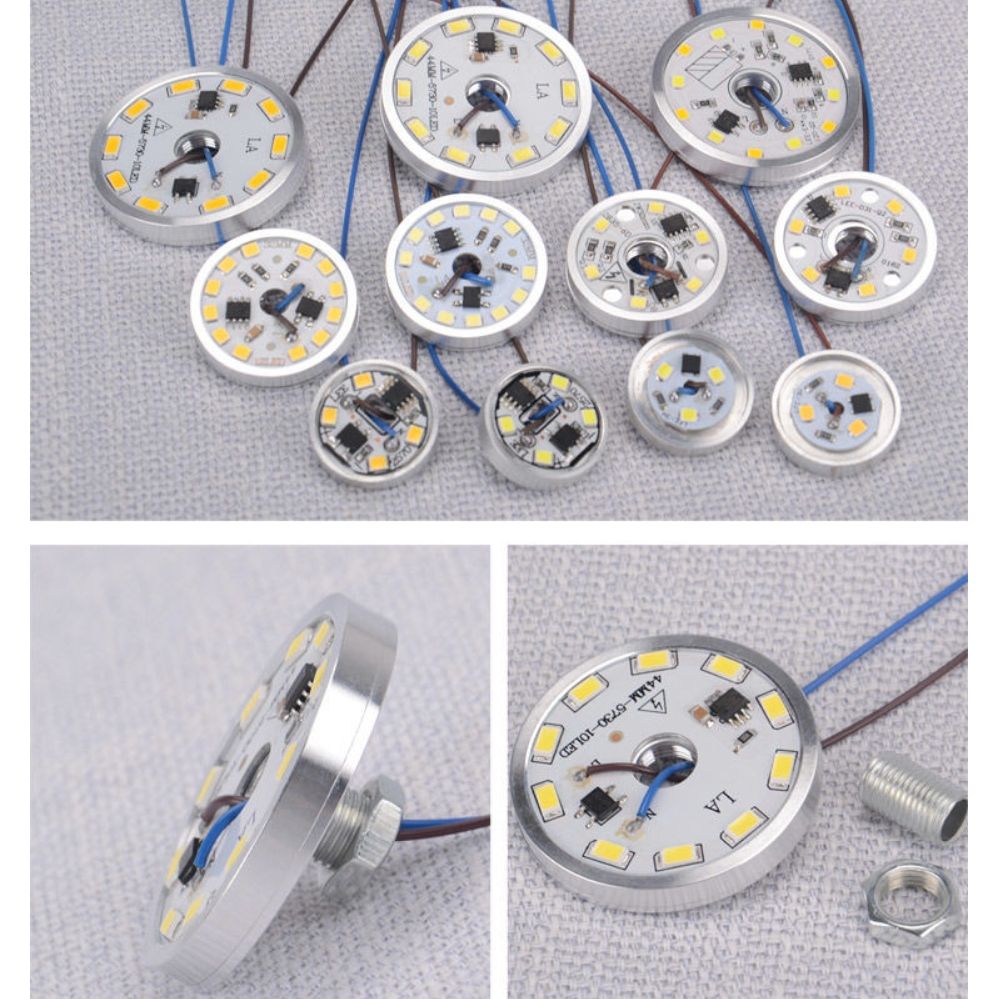

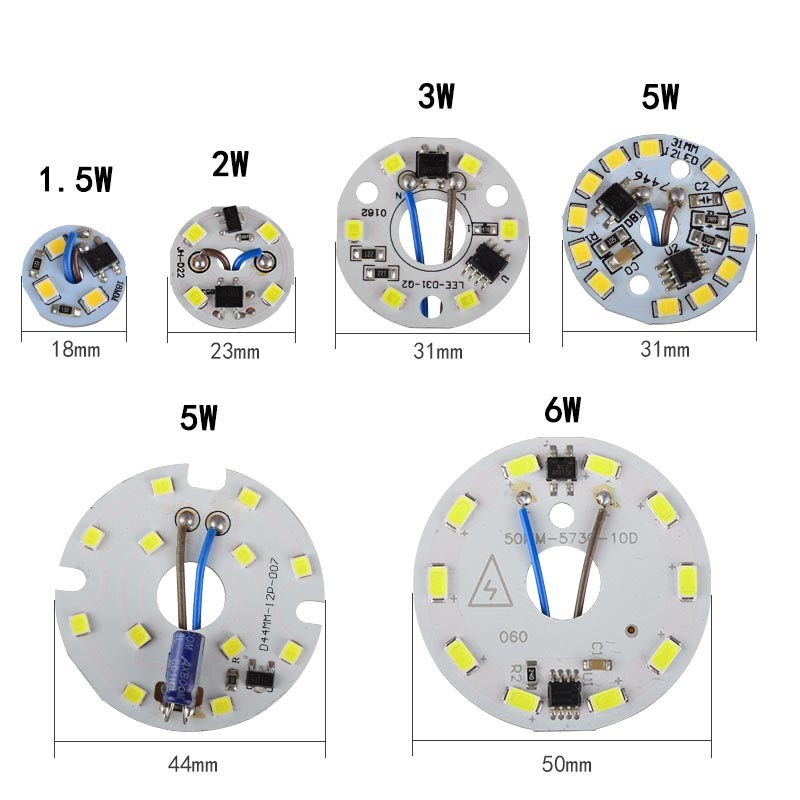

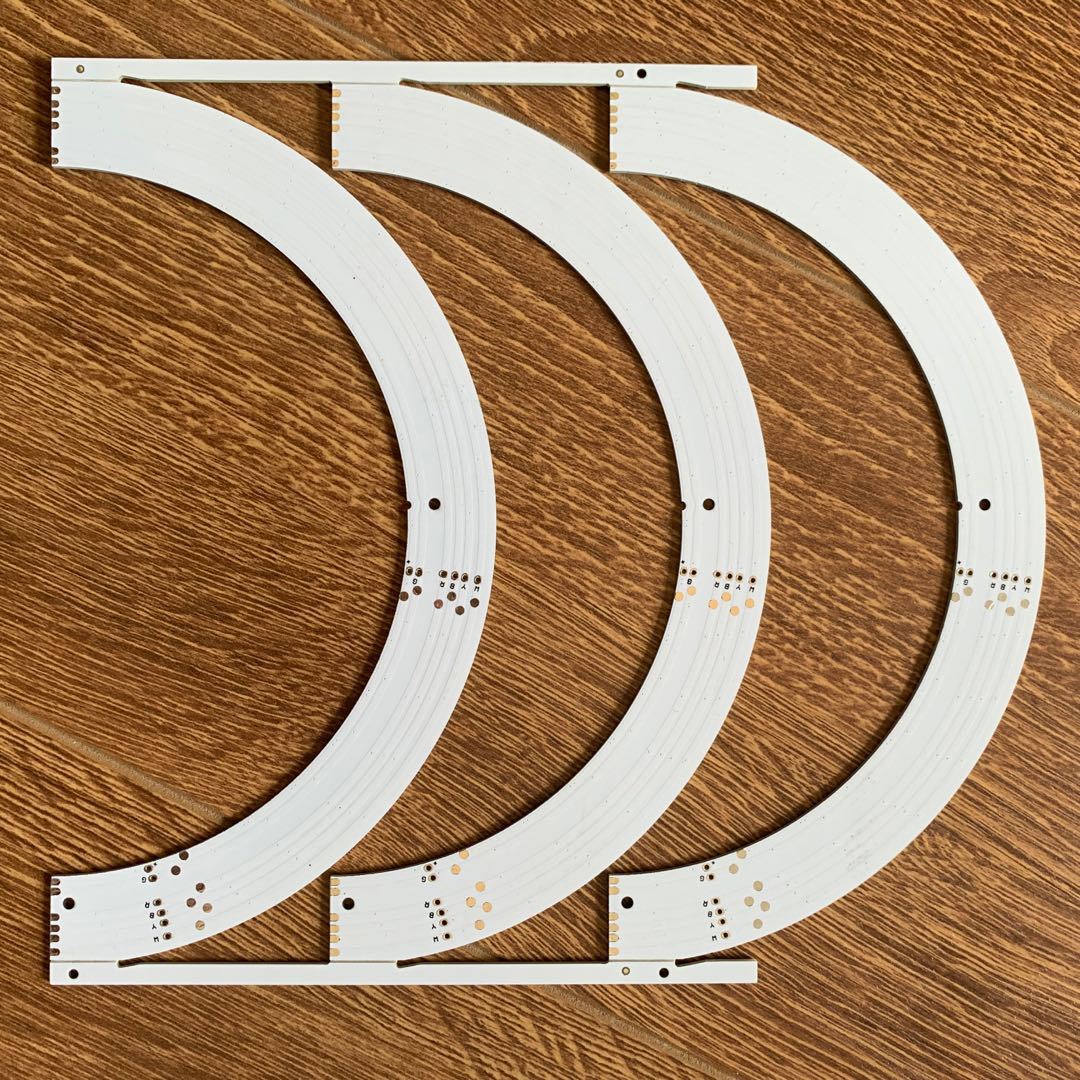

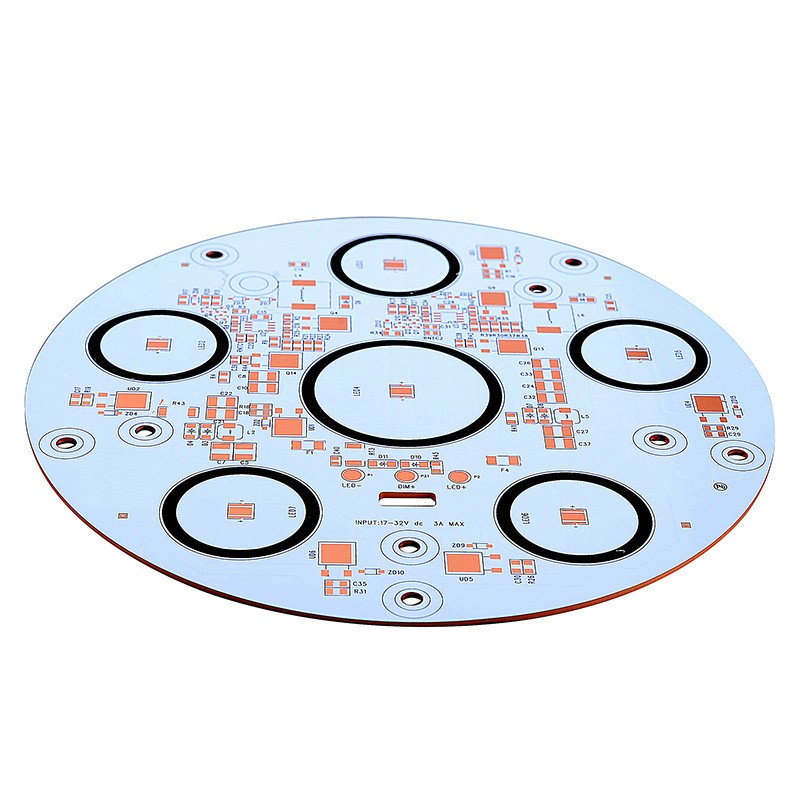

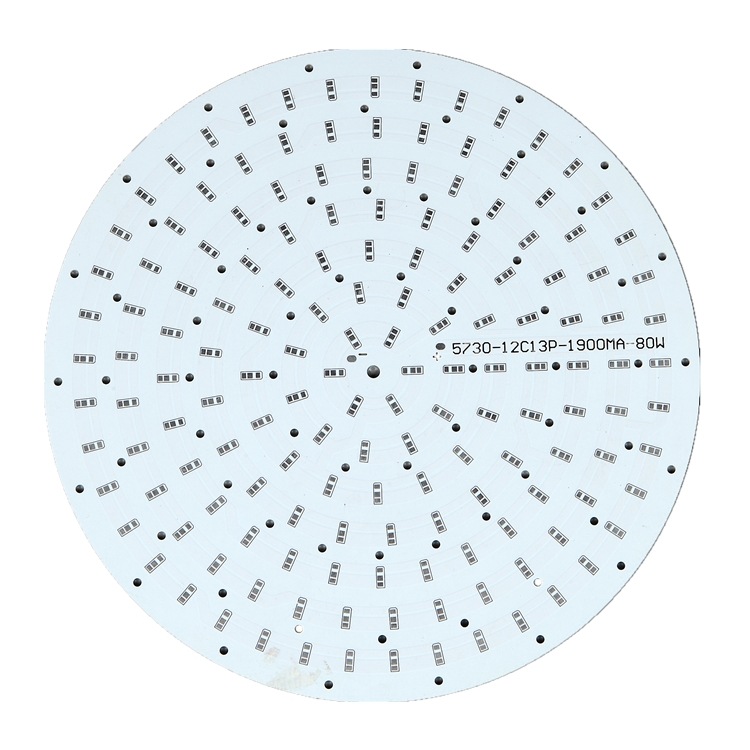

Customized 9w 12w 15w 18w Led light bulb PCB round panel assembly 12v 24v SMD 5050 5730 2835 5630 LED PCBA aluminum base circuit board
-
Supplier: Shenzhen Mondo Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Sally Jin -
Price: $0.16 / >=10 pieces -
Min. Order: 10 pieces
Product details
| PCBA assembly services: | surface mount technology | minute. Line spacing: | 0.1mm |
| port: | Shenzhen | color: | Warm white, cool white, pure white |
| Color temperature: | 1600-20000(K) | minute. Line width: | 0.1mm |
| Glow: | 100 - 300000 (lumens) | minute. Hole size: | 0.2mm |
| model: | LED light PCB-220105-002 | LED quantity: | 1-300 |
| brand: | OEM/ODM lamp aluminum PCB | payment terms: | L/C, Western Union, T/T |
| product name: | Customized LED PCBA aluminum-based circuit board | Copper thickness: | 1/3 to 6 ounces |
| type: | Aluminum plate | Test service: | E-Test, BGA X-Ray, AOI |
| Supply capacity: | 10,000 square meters of custom LED light controller PCB aluminum circuit board per month | Base material: | Aluminum substrate |
| Board size: | Customized LED light aluminum PCB | LED chip: | 2835/3030/3535/5050 etc. |
| Place of origin: | Guangdong, China | Material: | Copper/FR4/Aluminum/Ceramic CEM1 |
| Packaging details: | Customized FPC/rigid-flex PCB/PCB/PCBA packaging according to each customer's requirements. 1. PE bag + cardboard 2. Standard vacuum box (lunch box). 3. Special vacuum box (anti-static grade) | Surface treatment: | Lead-free tin spray/ENIG/OSP |
| Plate thickness: | 0.4 to 3.2 mm | application: | Living room, bedroom, shopping mall, aisle, eye protection downlight |
Product Description:
Customized 9w 12w 15w 18w Led light bulb PCB round panel assembly 12v 24v SMD 5050 5730 2835 5630 LED PCBA aluminum base circuit board
OEM PCB printed circuit board
| No. | LED light PCB project | Manufacturing capacity |
| 1 | Number of layers | 1-8 floors |
| 2 | base material | aluminum |
| 3 | Copper foil thickness | 35 micron |
| 4 | Plate thickness | 0.2-6mm |
| 5 | LED chip | Patch 2835/3030/3535/5050, 5730, etc. |
| 6 | LED color | Warm white, cool white, pure white, red, green, etc. |
| 7 | LED quantity | 1-300, can be customized |
| 8 | color temperature | 1600-20000(K) |
| 9 | Lu Ming | 100-300000(lumens) |
| 10 | Test service | E-Test, BGA X-Ray, AOI |
| 11 | surface finish | HASL/OSP/ENIG/Immersion Silver/Tin/Nickel |
| 12 | Silk screen color | white/black |
| 13 | Operating temperature | -45~65 degrees |
| 14 | Input voltage | 12V 24V 110V 220V |
| 15 | strength | 7w, 9w, 12w, 15w, 600w, 800w, etc. |
| 16 | life span | 50,000 (hours), 100,000 (hours) |
|
number 17 |
Acceptable file formats | CAD/Gerber files/powerpcb/Autocad Orcad/P-cad/CAM-350/CAM2000 |
