New stone splitter for sale, hydraulic stone splitter and electric hydraulic rock splitter

Supplier: Shandong Huayao Construction Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Tom Chen
Price: $150.00 /set
Min. Order: 1 set

Click here to contact

Product details

color:	yellow/red	product name:	stone crusher
application:	rock splitting	Packaging Details:	wooden box
Weight (kg):	330	Drilling depth:	0.5-0.8m
engine:	diesel/electric motor	Video shipment inspection:	if
Applicable industries:	Construction, Energy & Mining, Other, Rock Splitting	Work pressure:	55-70Mpa
Warranty:	1 year	port:	Tianjin Qingdao Shanghai Shenzhen
Model:	HR-9-25/HR-9-35/HR-9-45	place of origin; place of origin:	Shandong China
usage:	stone crusher	Mechanical test report:	if
brand:	Huayao	Key words:	stone crusher
Showroom location:	not any	Core components:	Engines, gearboxes, motors, gears, pumps
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Supply capacity:	1000 sets per month
Name:	stone crusher	Drive mode:	Hydraulic drive
Marketing Type:	New Products 2020	Core component warranty:	1 year
Types of:	stone crusher	State of health:	new

product information

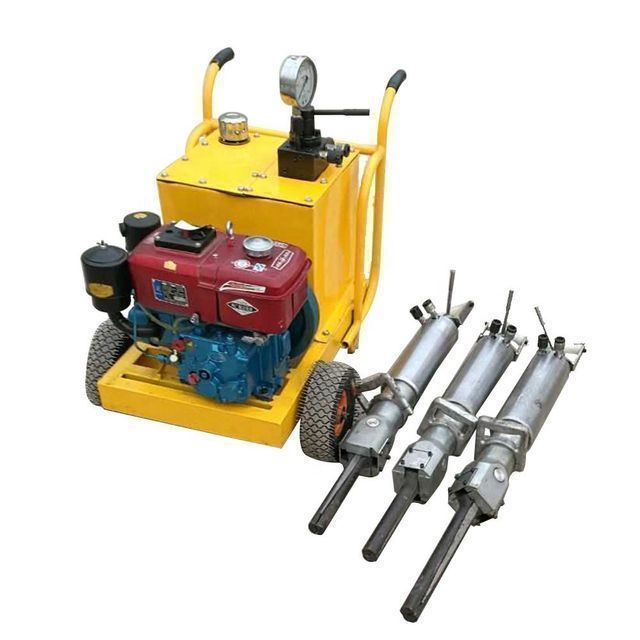

Factory direct hydraulic portable diesel rock splitter

The hydraulic rock splitter is also called a rock splitter, a rock splitter, a mountain cutter, etc. According to the type of power station, it can be divided into:Electric rock splitter, diesel engine rock splitter, gasoline engine rock splitter.

According to the material of the split gun, it can be divided into: steel split gun and aluminum split gun. Concrete components (cement pavements, machine tool foundations, bridges and building components) are the main components of partial and total demolition operations; natural stone mining (metal mines), non-metallic minerals).

The hydraulic rock splitter is especially suitable for secondary splitting of large rocks, and is an ideal equipment to completely replace blasting and manual demolition.

Product Details

Specification

Hydraulic pump station specifications
motor type
Motor Power/Voltage	4KW/380V	5.5KW/380V	7.5KW/380V
work pressure	63Mpa	63Mpa	63Mpa
Working oil temperature	5-50℃	5-50℃	5-50℃
work process	2-13L/min	2-13L/min	2-13L/min
Hydraulic oil type	46#	46#	46#
Hydraulic tank	36L	40L	52L
The maximum load of the splitter	6	6	6
weight	120KG	170KG	220KG
diesel engine type
engine power	6 hp	8 hp	18 hp
work pressure	55-60Mpa	63Mpa	65-70Mpa
Working oil temperature	5-50℃	5-50℃	5-50℃
work process	2-13L/min	2-13L/min	2-13L/min
Hydraulic oil type	46#	46#	46#
Hydraulic tank	40L	40L	52L
The maximum load of the splitter	18 pcs	18 pcs	18 pcs
weight	330KG	330KG	330KG

stone crusher	Model
stone crusher		HR9-25	HR9-35	HR9-45	customized
Piston diameter	90mm	90mm	90mm	110mm
wedge length	250mm	350mm	450mm	800mm
Aperture	Φ42mm	Φ45mm	Φ50mm	110mm
Drilling depth	0.5m	0.6m	0.7m	0.8m
split time	8-50s	8-50s	8-50s	8-50s
splitting force	800 tons	800 tons	800 tons	1500
weight	40KG	41KG	42KG	45KG
