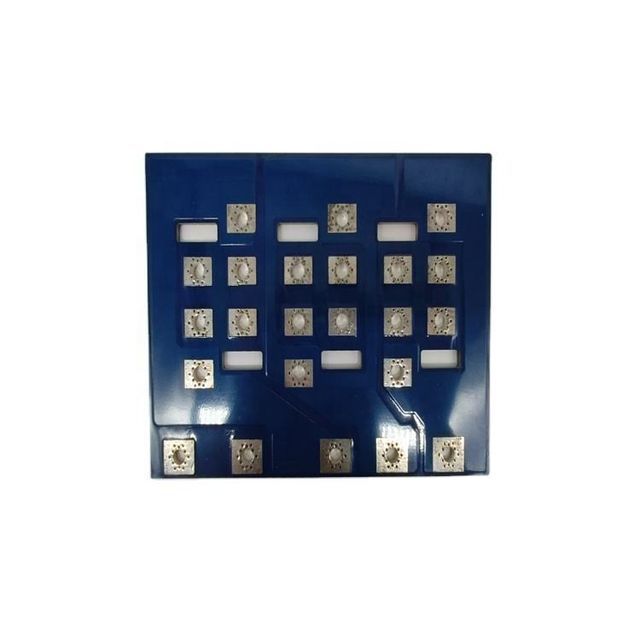

8-layer HDI mobile phone PCB board and PCBA manufacturer

Supplier: Shenzhen Shanxun Electronic Co., Ltd.
Region: Guangdong, China
Contact: Ms Jessie Zou
Price: $10.00 / 1 - 9999 pieces
$2.00 / >=10000 pieces
Min. Order: 1 piece

Click here to contact

Product details

payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	place of origin; place of origin:	Guangdong, China
model:	SX-5	Types of:	HDF
Board Dimensions:	OEM ODM PCB and Assembly Services	Surface treatment:	OSP, LF HASL, Immersion Gold
Minute line spacing:	3000000	Copper thickness:	0.5-10OZ
Package preview:		product name:	8-layer HDI mobile phone PCB board and PCBA manufacturer
port:	Shenzhen	Minute line width:	3000000
Plate thickness:	1.6mm	Solder mask color:	Green, blue, red, black, white, etc.
Substrate:	FR4 material	Minute Hole Size:	0.2mm
brand:	Good looking	Supply capacity:	100000 pieces per month

8-layer HDI mobile phone PCB board and PCBA manufacturer

Product Description

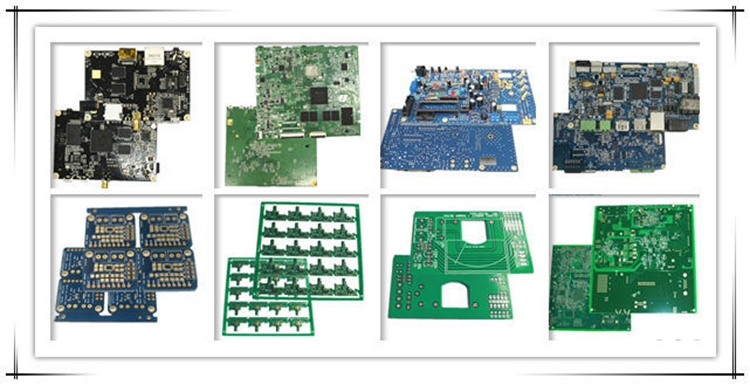

PCB: 1 to 30 layer PCB manufacturing, UL and ISO certified.

PCBA: One-stop service for PCB, sourcing components and assembly.

All PCB products are 100% visually inspected and tested to meet RoHs requirements.

our service

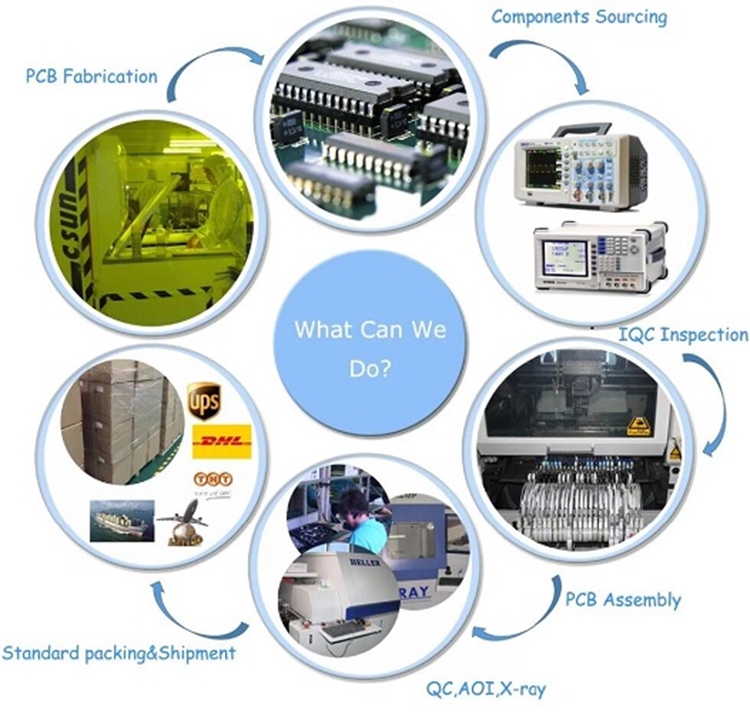

We provide one-stop services for PCB manufacturing, layout/design, reproduction (Gerber, BOM), component procurement, assembly (SMT, DIP, COB), advanced testing, high standard packaging, on-time delivery and after-sales service.

PCB&PCBA capability

PCB capability
	technical standard
layers	2-30 floors
finishing	HASL Free, OSP, lmmersion gold, lmmersion silver, gold fingers
Material	FR4, High Tg FR4, Rogers, Aluminum, Polyimide
Veneer Thickness	0.2mm-7.0mm
copper thickness	0.5OZ-20OZ
Minimum line width and spacing	0.075mm (3 million)
Minimum Mechanical Drill Size	0.15mm (6 million

PCBA capability
	technical standard
Assembly type	THD, SMT, SMT&THD mixed
components	Passive components, minimum size 0201, BGA, QFN, POP, fine pitch to 8 mils
bare board size	Minimum: 6.35mm6.35mm; Maximum: 508mm508mm
Min lC & QFN Ptich	0.012 inches (0.3 mm)
Maximum BGA size	74mm*74mm
Service type	Turkey, part of Turkey or consignment

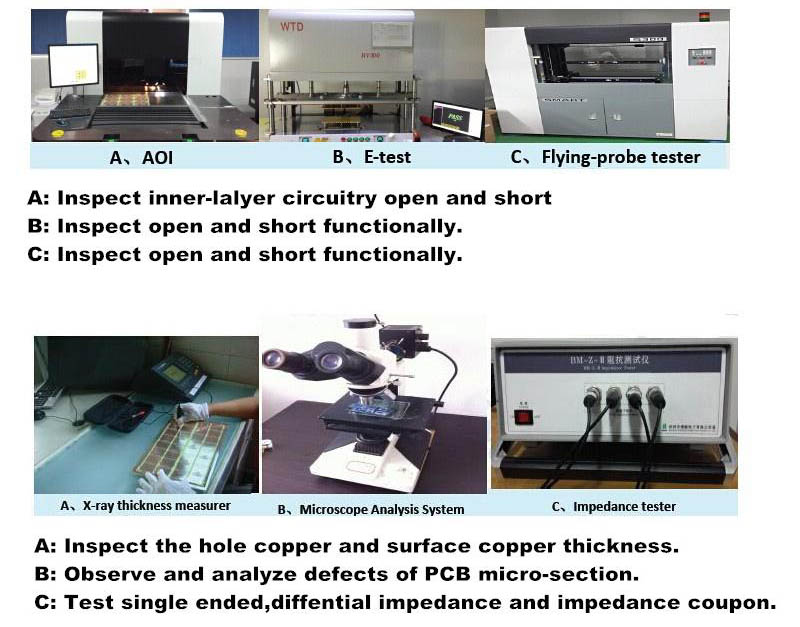

test	X-ray inspection AOl (Automatic Optical Inspection) ICT (In-Circuit Test/Functional Test)

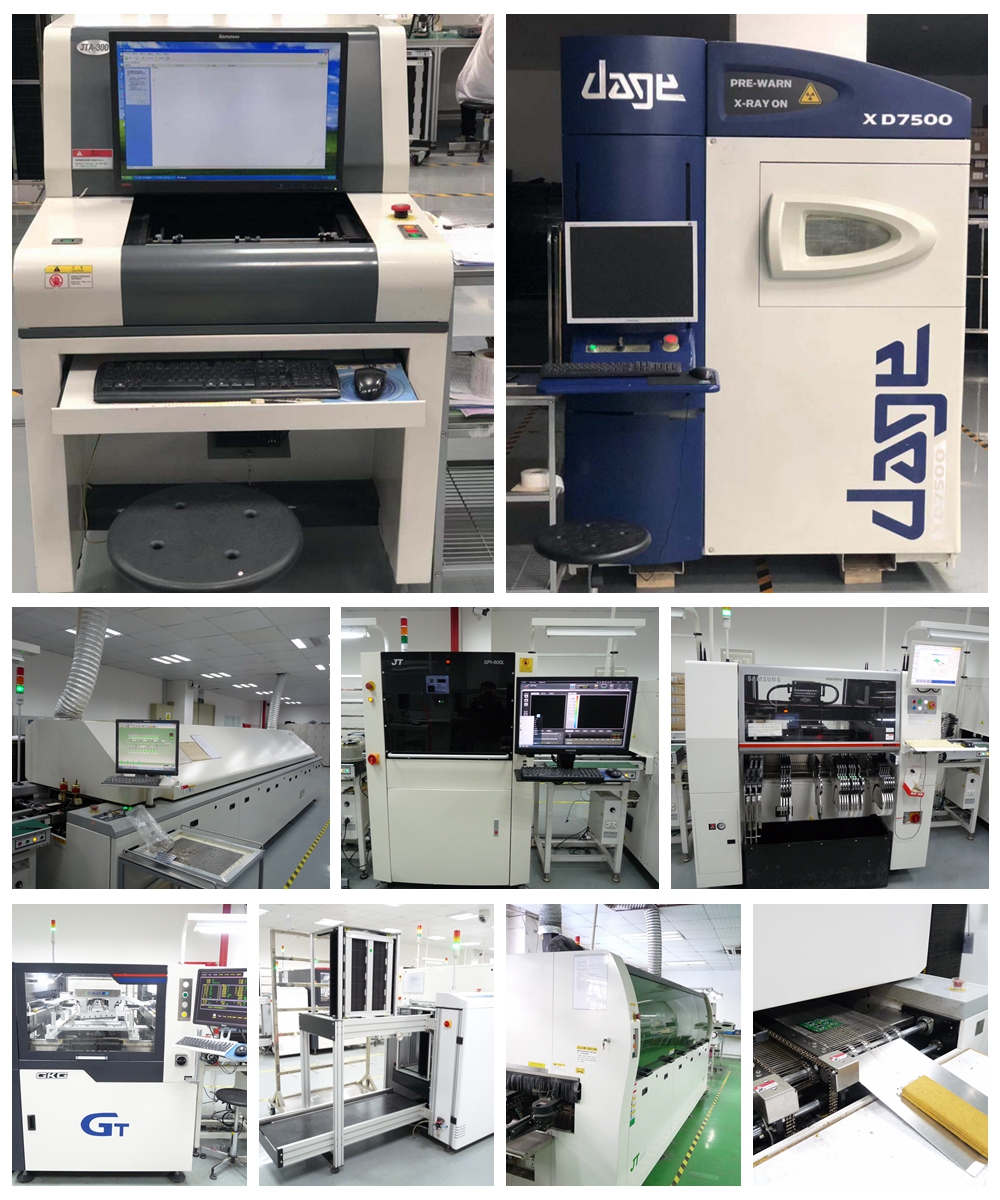

equipment
