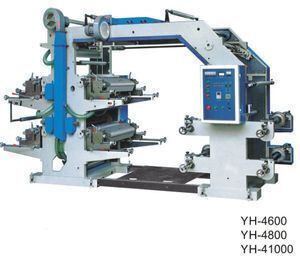

4 Colors Plastic Bag Flexo Printing Machine

Supplier: Ruian Yuanhang Machinery Factory
Region: Zhejiang, China
Contact: Mr Henry Tan
Price: $5500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 Year;	Dimensions(LWH):	422.2;
Color & Page:	Multicolor;	Supply Ability:	30 Set/Sets per Month;
Voltage:	380V/ 220V;	Port:	NINGBO/ SHAGHAI;
Certification:	CE. ISO. SGS;	Packaging Detail:	STRETCH FILM/ WOODEN CASE;
Usage:	Paper Printer,Plastic;	Place of Origin:	Zhejiang China (Mainland);
Weight:	1200KGS;	Automatic Grade:	Automatic;
Brand Name:	YH;	Payment Terms:	L/C,T/T,Western Union;
After-sales Service Provided:	Online support,Free spare parts,Video technical support;	After-sales Service Provided:	Engineers available to service machinery overseas;
Type:	Flexographic Printer;	Condition:	New;
Plate Type:	Gravure;

Feature:

1. It adopts combination type, the printing can be finished on time continuously with single-double-side many colors.

2. Unwinding and rewinding tension magnetic control system.Ink automatic cycle.

3. Far infrared heating with drying system with single drying-channel is available for drying film.

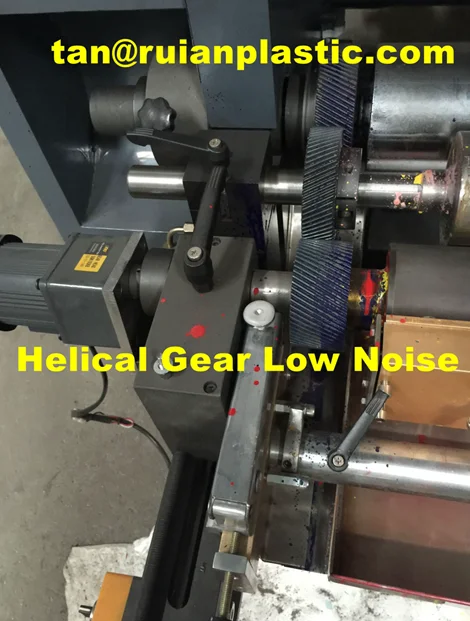

4. Differential gear is adopted with plates free adjusted with 360 degree.

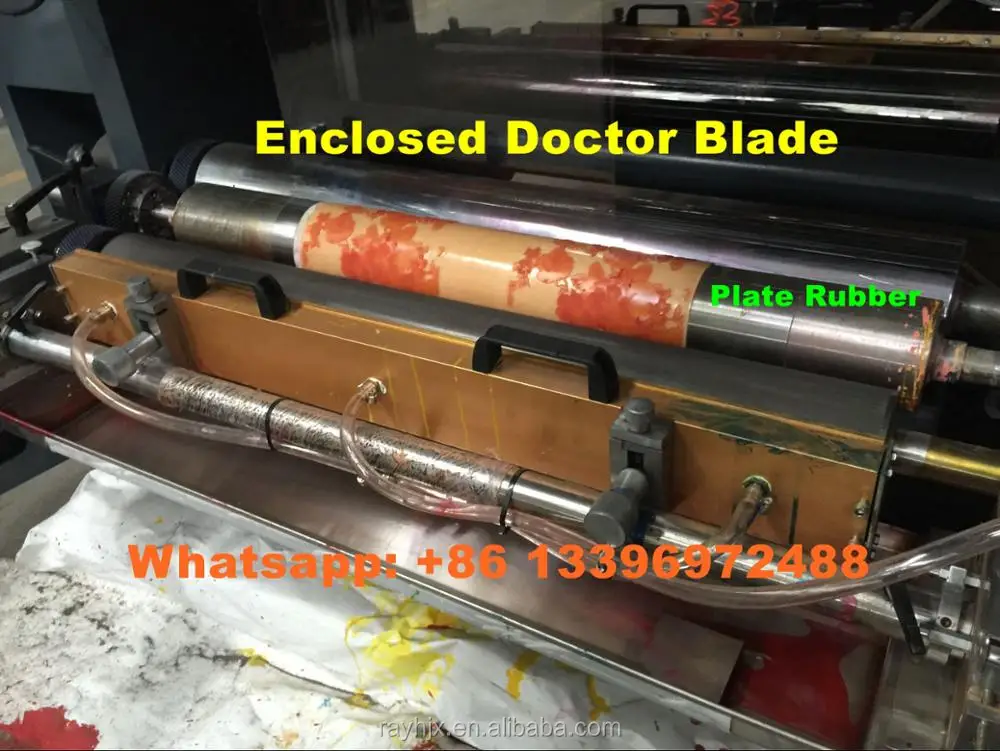

5. Pressure height and parallelism of ink blade are adjustable at will, and it can transversely reciprocate with main machine too.

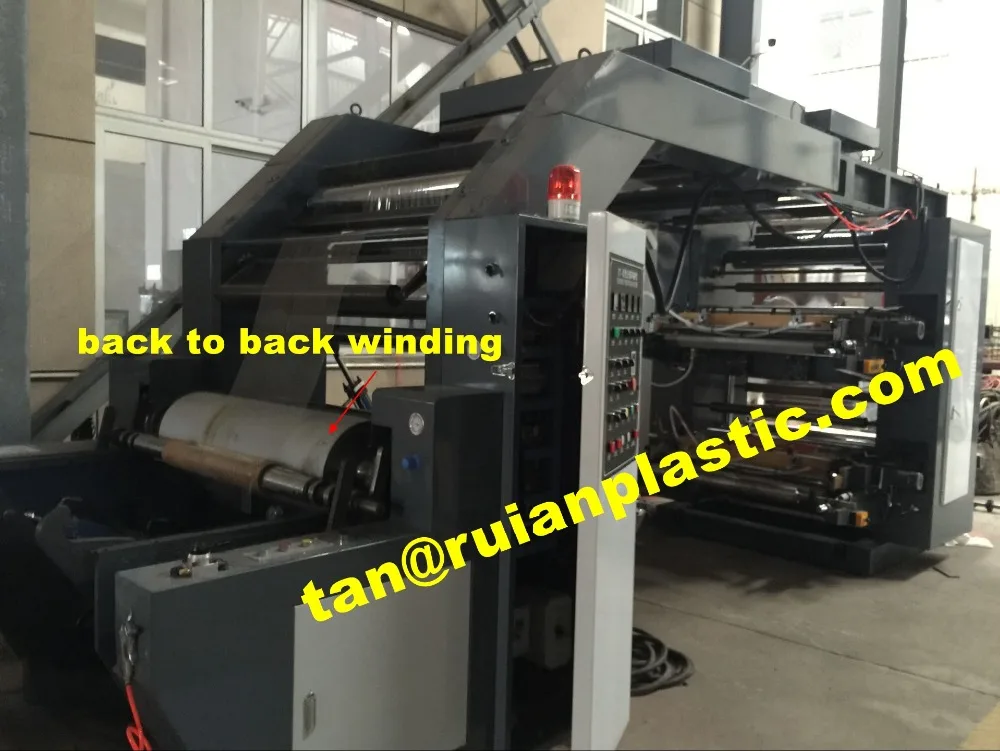

6. It adopts turnover doublestation rolling and releasing structure, receiving and replacing material without stopping.

Main Technical Specification

Model of Machine	ASY-2800	ASY-4800
Unwind width	810mm	810mm
Color number	2colors	4colors
Unit	4unit	6unit
Width of Printing	760mm	760mm
Speed of Printing	50m/min	50m/min
Version Accuracy	±0.25mm	±0.25mm
Length of Printing	200-1000mm	200-1000mm
Unwind diameter	600mm	600mm
Pressure	0.6Mpa	0.6Mpa
Fan power	0.19kw/unit	0.19kw/unit
Heating power	7kw	11kw
Total Power	12kw	18kw
Dimensions	4500×2000×2000mm	6500×2000×2000mm

Our Service :

1. Purchase Service

We have a specialized and efficiency working team. If you are new on the Plastic Machinery area, Some samples of your products could be show to us will be appreciated ,we will give you specialized suggestion of whole work .

2. Shipping Service

We have a specialized and independent department which just for shipping the buyer's goods .The workers are knowing T/T, L/C Items very well. All Exported documents could be made perfectly.

We cooperated with the most famous shipping company in China also. They could provide the best and economic shipping ways to the buyer's port.

3.Installation and Training Services

Installation Services are available with all machines. We will dispatch technician to The Buyer's factory to installation and preoperation of machines .But the buyer need to supply the round trip tickets ,food ,hotel and other cost.

Training on our factory also be welcome.

4.After Sales Service

Our machines guarantee time is one year.

Many easy broken spare parts will be prepared in the tool box together with machines.

Any parts broken, Just a pictures or a videos.Then new free parts will reach within 3-7 Express working days .
