Automatic Longitudinal Seam Mig Welding Machine

Product details
Condition:New;Welding Thickness:0.8-6.0mm;
Welding Diameter:75-850mm;Clamping Mode:Pneumatic key type press;
After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;Welding Length:≤3000mm;
Welding Mode:TIG MIG PLASMA;Certification:CE ISO;
Weight:according to machine model;Usage:seam Welding;
After-sales Service Provided:Engineers available to service machinery overseas;Voltage:380V can be customized;
Supply Ability:20 Set/Sets per Month;Dimensions:according to machine model;
Control Mode:PLC;Brand Name:HUAFEI;
Forming Time:Standard;Warranty:1 Year;
Payment Terms:L/C,T/T,Western Union;Welding Method:TIG MIG MAG SAW PAW;
Welding Speed:0.2-2.2m/min;Welding Material:carbon steel; stainless steel; aluminum;
Port:qingdao port China;Welding Mode:Automatic;
Welding Diameter:100-1000mm;Power(W):3000w;
Packaging Detail:sea worthy package with film and wooden case;Place of Origin:Shandong China (Mainland);

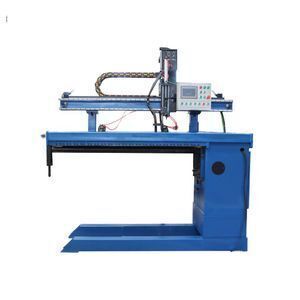

Automatic Longitudinal Seam Mig Welding Machine

Product Description



Brief description

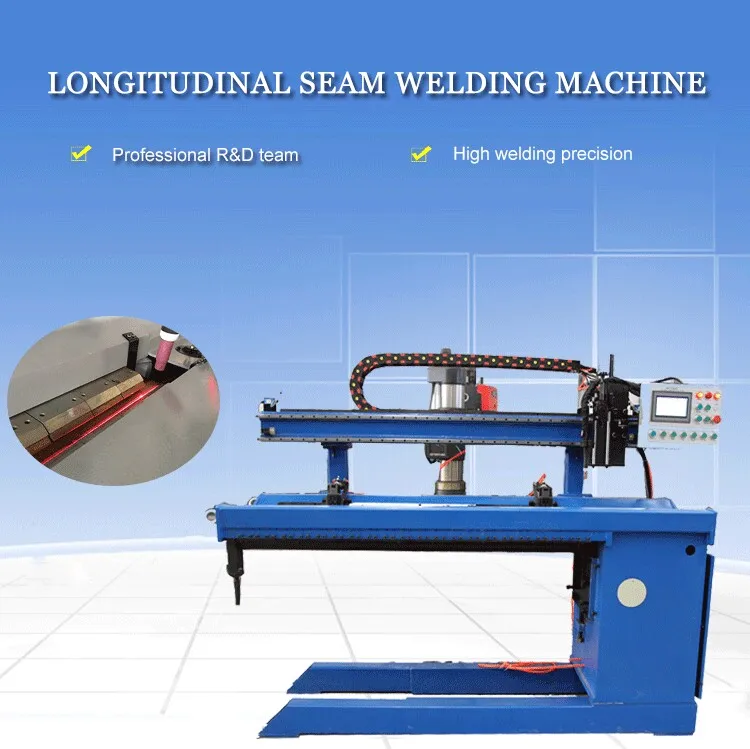

longitudinal seam welding machine is suitable for welding longitudinal seam of cylinder or rectangle with TIG,MIG or plasma welding source,different materials,carbon steel,stainless steel or other metal alloyed materials,can be well welded.It is mainly composed of base, cross beam, key type clamping unit, spindle,water cooling copper washer,support racks for shaft ends, traveling car, and cross sliding rack.

Feature

1.Controlled by PLC for stable and reliable performance.

2.Worktable can be adjusted according to size of work piece.

3.Automatic centering and positioning for flat panel welding.

4.Pneumatic driven welding torch, adjustable welding speed

5.optional different welding modes,such as TIG,MIG,plasma welding,etc.

6.pneumatic clamping device with keys,parts balanced force,small deformation of workpiece.



technical parameters



model

ZF-500

ZF-1000

ZF-1500

ZF-2000

ZF-2500

ZF-3000

Welding length

525 mm

1125 mm

1650 mm

2025 mm

2550 mm

3075 mm

Min.

diameter

φ75 mm

φ115 mm

φ150 mm

φ180 mm

φ200 mm

φ270 mm

Max

diameter

φ850 mm

φ730 mm

φ730 mm

φ850 mm

φ850 mm

φ850 mm

Welding thickness

0.2-6 mm

0.4-6 mm

0.8-8 mm

Welding speed

150-1500 mm/min

Speed control

Stepless speed control

Transmission mode

Guide rail+gear and rack

Slide precision

±0.15 mm

±0.2 mm

Clamping mode

Key type Pneumatic clamping

Optional

1.analog control;2.torch screen+PLC control;

3.American welding source;4.china welding source;5.others



Our Services

l Professional engineering and technical personnel. We will provide you with reasonable and valuable Suggestions and solutions according to your requirements, the engineering feasibility and economic benefit etc .

l Provide knowledge of equipment operation and maintenance,Allows you to accurately grasp the characteristics of the machine

l one year warranty, life-long maintenance services through email or telphone .Please feel free to use.

l Supply all kinds of accessories and replacement.

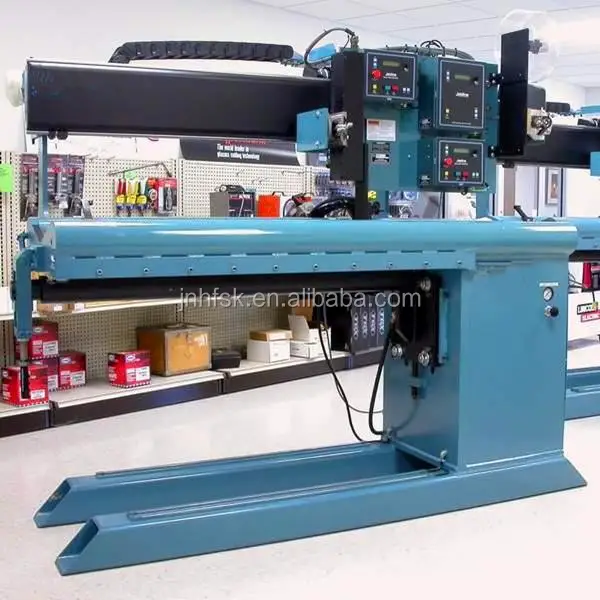

Detailed Images
