Automatic Plastic HDPE LDPE Bottle Injection Blow Molding/Molding (IBM) Machine
- 40700.00 1 - 19 sets
- 35000.00 >=20 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Health status: | new | automation: | automatic |
| Blow molding type: | injection blow molding | brand: | dedication |
| Voltage: | 380VAC | Clamping force(kN): | 300 |
| Supply capacity: | 30 sets per month | payment terms: | L/C, T/T |
| place of origin; place of origin: | Guangxi, China | Warranty: | 1 year |
| Core component warranty: | 1 year | Video shipment inspection: | if |
| application: | Plastic HDPE LDPE bottle | High pressure valve brand: | SMC |
| Marketing Type: | normal product | Core components: | Water pump, motor, PLC |
| port: | Shenzhen | brand: | Omron |
| Type of machine: | 2-station automatic vertical | year: | 2021 |
| Weight (kg): | 5000 | Mechanical test report: | if |
| Drum brand: | AirTAC | Showroom location: | turkey |
| Dimensions (L*W*H): | 3.3 * 1.35 * 2.6 meters | Main selling points: | automatic |
| Plastic processing: | HDPE, PE, LDPE | Hollow part volume: | 500 ml |
| Applicable industries: | manufacturing plant | Power (kW): | 15 |
| Packaging Details: | wooden box |

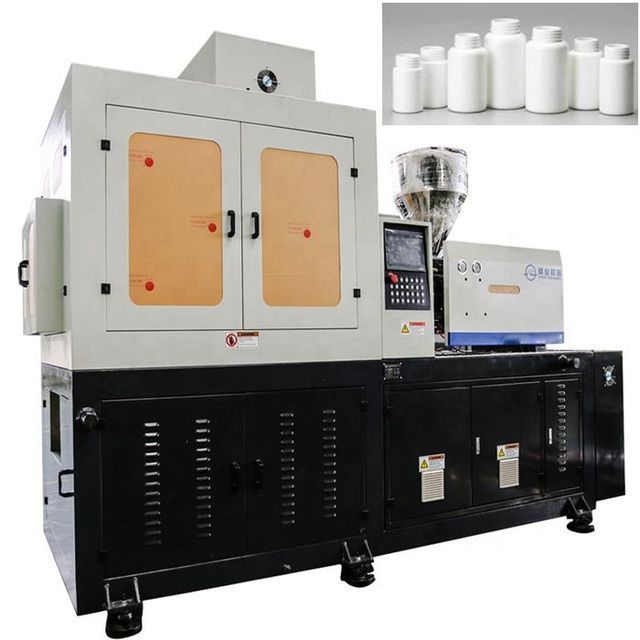

Automatic Plastic HDPE LDPE Bottle Injection Blow Molding/Molding (IBM) Machine
This machine has double stations. One is used to inject preforms, and the other is used to blow preforms into finished bottles. For more details, contact us!
Technical Data Sheet
| thing | data |
| Machine name | Injection Blow Molding Machine |
| type of machine | 2-station automatic vertical |
| application | Plastic HDPE LDPE bottle |
| machine type | WIB-40-1 |
| Screw diameter | 40mm |
| theoretical injection volume | 146 grams |
| Injection clamping force | 300 kN |
| blow clamping force | 50 kN |
| Motor Power | 15 kW |
| heater capacity | 13 kW |
| blowing pressure | 0.6 -0.8MPa |
| cooling water pressure | 2 - 3 bar |
| Machine size | 3300*1350*2600mm |
| machine weight | 5000 kg |
For the key components, we adopt high standard configuration on this machine to keep the operation stable and have a long service life.
We provide turnkey solutions, IBM machines, molds and auxiliary machines. For more details, contact us!

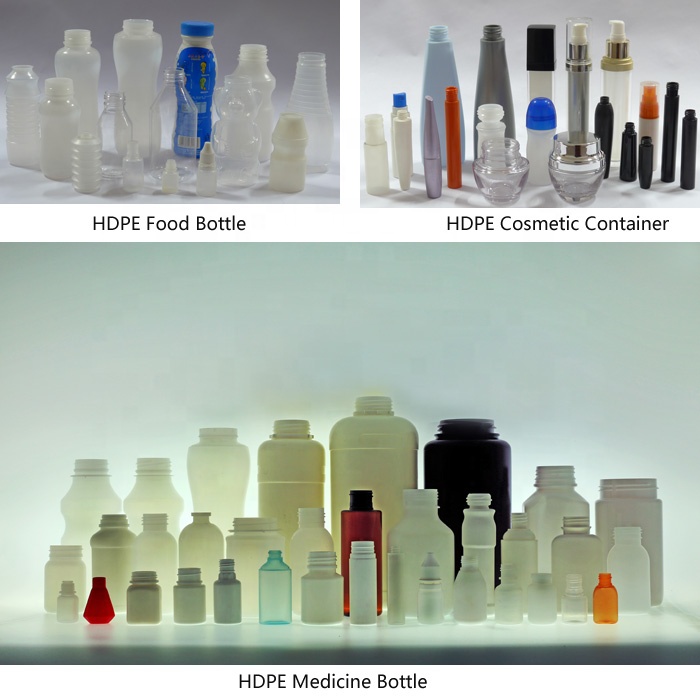

sample

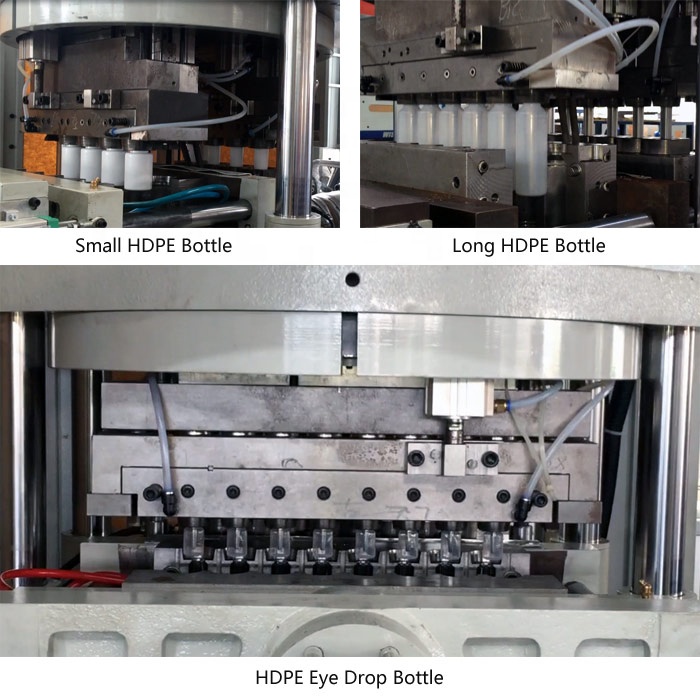

This machine can make a lot of plastic bottles, suitable materials include HDPE, LDPE, AS, PC, etc. For more details, contact us!
Packaging and Shipping
Customer factory
