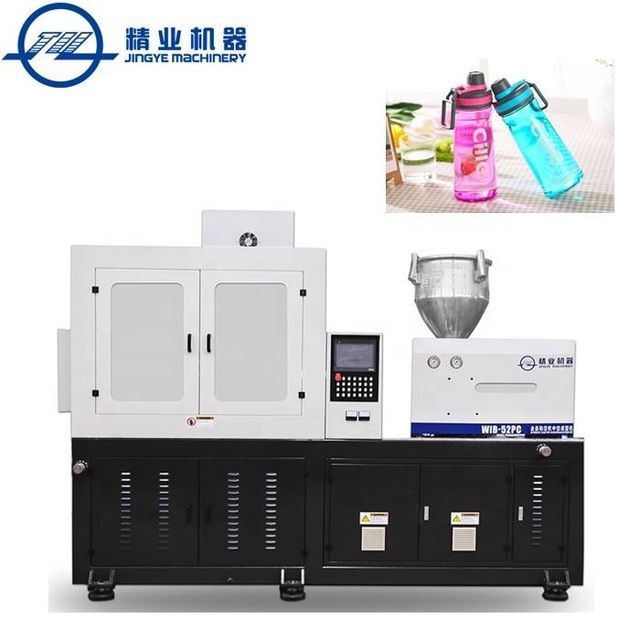

WIB-52PC Automatic Vertical Single Stage 2 Cavity Injection Blow Molding Machine

Click here to contact

Product details

payment terms:	letter of credit, wire transfer	Marketing Type:	normal product
Programmable controller brand:	Omron	Packaging Details:	wooden box
Mould:	if	Core components:	Pumps, motors, PLCs, display screens, reducers, hydraulic valves, photoelectric sensors, electrical components
Video external inspection:	if	Mechanical test report:	if
Health status:	new	Applicable industries:	Manufacturing Plants, Food and Beverage Plants
Showroom location:	turkey	High pressure valve brand:	SMC
Main selling point:	automatic	Dimensions (LWH):	3.8 * 1.5 * 2.6 meters
type:	Injection blow molding machine	Type of machine:	vertical single stage
Core Components Warranty:	1 year	application:	bottle
Warranty:	1 year	Mold number:	2 cavity
Supply capacity:	300 pieces per year	brand:	Liuzhou Jingye Machinery
Weight (kg):	6000	place of origin; place of origin:	Guangxi, China
year:	2021	Plastic Processing:	PP,PC,TRITAN
Clamping force (kN):	406.9	Volume of hollow part:	2000 ml
Voltage:	380V three-phase	online service:	if
Power (kW):	twenty two	port:	Shenzhen
Blow molding type:	Injection blow molding	Rotary cylinder brand:	Air Asia
automation:	automatic

Product Description

WIB-52PC Automatic Vertical Single Stage 2 Cavity Injection Blow Molding Machine

1) It has dual stations. The injection station is used to inject preforms and the blowing station is used to blow the preforms into finished bottles.

2) Please check the pictures and video below, you will understand how this machine works.

Technical data sheet

thing	data
machine type	WIB-52PC
Screw diameter	50 mm
Theoretical injection capacity	392.5 cm³
Injection mold clamping force	406.9 kN
Blow clamping force	123.1 kN
Motor Power	22 kW
Heater capacity	15kW
blowing pressure	1.0 - 2.0 MPa
cooling water pressure	0.2 - 0.3 MPa
Machine size	382014702636mm
machine weight	6000 kg
