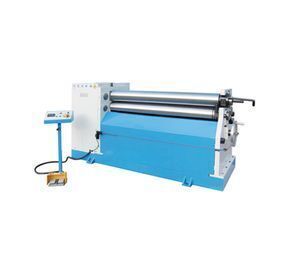

HER1550x6.5 TTMC 3 roll Sheet metal slip rolling machine

Supplier: Tengzhou Tri-Union Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Alfred Shen
Price: $20850.00 /set
Min. Order: 1 set

Click here to contact

Product details

Max. Plate Thickness (mm):	6.5;	Max. Rolling width:	1550 mm;
Material / Metal Processed:	Aluminum,Carbon Steel,Brass / Copper,ALLOY;	Raw Material:	Sheet / Plate Rolling;
Supply Ability:	500 Set/Sets per Month TTMC hydraulic and electric slip roll can supply by FCL;	Roller speed @60Hz:	5 rpm;
Extra Services:	Machining;	Packing size:	267x111x147 mm;
Warranty:	1 Year;	Machine Type:	Roller-Bending Machine;
Min. rolling dia.:	200 mm;	Certification:	ce;
Motor Power:	4 kW;	Port:	Qingdao or Shanghai;
After-sales Service Provided:	Online support,Video technical support;	Condition:	New;
Dia. of roller:	181 mm;	Automation:	Manual;
Packaging Detail:	Ply wood case for TTMC hydraulic and electric slip roll;	Place of Origin:	Shandong China (Mainland);
Max. Rolling thickness:	6.5 mm;	Weight:	2650;
Brand Name:	TTMC hydraulic slip roll;	Item No.:	391123 TTMC hydraulic and electric slip roll;
Power:	Hydraulic;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Can pay cash for TTMC hydraulic and electric slip roll;
Roller speed @50Hz:	4.2 rpm;	Max. Working Length (mm):	1550;

Product information

Features:

1. All three rolls are driven by hydraulic system
2. Pinch roll cylinders adjustment synchronously
3. All rolls are made of top-grade alloy steel hardened up to HRC55
4. Pinch roll is hydraulic powered up and down with digital counter for showing pinch roll position
5. Rigid construction for precise and smooth operation, and long life time usage
6. The top roll can be swiveled out for easy removal of the finished work piece
7. Remove foot control pedal for forward /reverse, fitted with a protective housing

Specification:

Item No.	391123	391123
Model	HER-1550x6.5	HER-1550x6.5
Max. rolling thickness	6.5 mm	1/4”
Ma. Rolling width	1550 mm	5’1”
Dia. of roller	181 mm	7.1”
Min. rolling dia.	200 mm	7.9”
Motor power	4 kW	5.5 HP
Roller speed @50 Hz	4.2 rpm	4.2 rpm
Roller speed @60 Hz	5 rpm	5 rpm
Packing size	267x111x147 cm	105x44x58”
N.W./G.W.	2994 / 3300 kg	6600 / 7330 lb

Accessories:

Standard accessories:
Electric cabinet
Digital counter shows pinch roll position
Optional accessories:
N

Detailed Images

Packing & Delivery

Ply wood case packing and Seaworthy export packing

Our Service

Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
