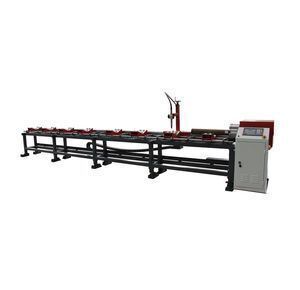

PCP300 3000mm with 85A hypertherm power TTMC cnc plasma pipe cutting tube notcher

Supplier: Tengzhou Tri-Union Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Alfred Shen
Price: $42250.00 /set
Min. Order: 1 set

Click here to contact

Product details

Pipe length:	3000mm;	Weight:	990 kg;
Cutting mode:	Plasma;	Certification:	CE ISO;
Port:	Qingdao Shanghai;	Dimension(LWH):	431x112x140cm;
Pipe thickness:	1-12mm;	Max rotation speed:	100 rpm;
Movement speed:	10000 mm/min;	Max pipe weight:	150 kg/m;
Packaging Detail:	Pallet for TTMC cnc plasma pipe shearing;	Brand Name:	TTMC cnc plasma pipe shearing;
Pipe diameter:	50-300mm;	Voltage:	380V 220V Optional;
Place of Origin:	Shandong China;	Cutting speed:	5.08 m/min;
Air press:	5.9-9.3 bar;	Type:	Pipe Cutting Machine;
Supply Ability:	300 Set/Sets per Month TTMC cnc plasma pipe shearing can supply by FCL;	Warranty:	1 Year;
After-sales Service Provided:	Free spare parts,Online support;	Condition:	New;
Item No:	386511 TTMC cnc plasma pipe shearing;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Cash of TTMC cnc plasma pipe shearing can accept;

PCP300 3000mm TTMC cnc plasma pipe shearing features:

1. Economical CNC plasma pipe cutting solution for pipe with OD50-300mm

2. Easy to use programming software-no special skills required

3. Adjustable gas-shock chuck supports make it easy to accurately set and lock the chuck height to ensure smooth and level rolling of different diameter material on the cradles

4. Adjustable ball transfer cradles can load the pipe smoothly and easily

5. Modular expansion-bed extensions available to accommodate longer lengths of pipe or tube to improve productivity by using fewer operations

Specification:

Item No.	386511
Model	PCP 300X3000
Cutting speed	5.08 m/min
Movement speed	10000 mm/min
Max. rotation speed	100 rpm
Cutting mode	Plasma
Pipe diameter	¢50-¢300 mm
Pipe length	3000 mm
Pipe thickness	1-12 mm
Max. pipe weight	150 kg/m
Air press	5.9-9.3 bar
Packing size	431x112x140 cm
N.W./G.W.	990/1300 kg
