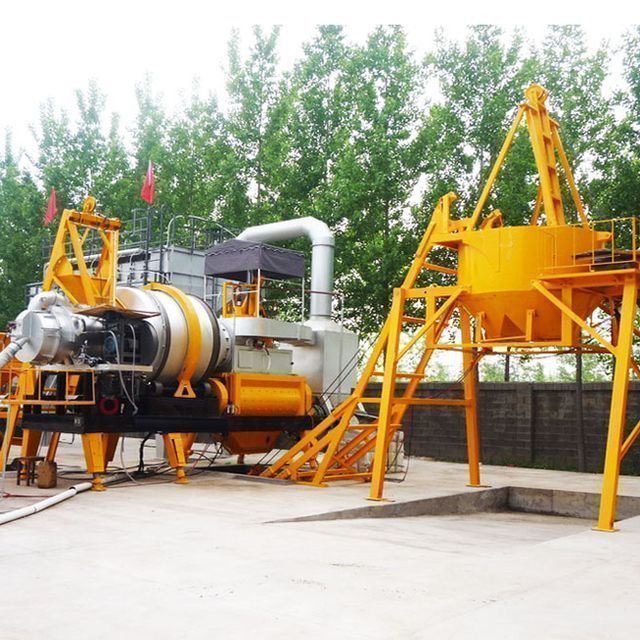

QLB Series Small Capacity Mobile Hot Mix Asphalt Plant 10-80TPH

Supplier: Zhengzhou SINOSUN Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Sinosun Li
Price: $50000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Marketing Type:	normal product	Core components:	Programmable controller, pump
brand:	Zhongyang	Control System:	PLC+color touch screen
Video external inspection:	if	Mixer capacity:	10-80 tons/hour
Hot Asphalt Temperature:	130-170°C	application:	maintain
product name:	Small capacity QLB series 10-80TPH mobile hot mix asphalt plant	Fuel consumption (standard condition):	5-7.5kg/t finished product
Dimensions (LWH):	20GP	Health status:	new
port:	Qingdao Port, Shanghai Port, China	Packaging Preview:
Packaging Details:	Our Small Capacity QLB Series 10-80TPH Mobile Hot Mix Asphalt Plants are packed in 4-6 containers.	place of origin; place of origin:	Henan, China
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,PAYPAL	Applicable industries:	factory, construction
Dusting:	Cyclone filter	type:	mobile
Core Components Warranty:	1 year	Burner:	Italy European Baosteel Oil Furnace
Supply capacity:	40 mobile hot mix asphalt plants per month	Voltage:	220V/380V-50Hz
Unique Selling Points:	easy to maintain	Warranty:	1 year
weight:	50000kg	Showroom location:	Egypt, Philippines, Brazil, Indonesia, Russia, Thailand, Colombia, South Africa, Malaysia, Morocco
Mechanical test report:	if	color:	special requirements
strength:	125KW

Small capacity QLB series 10-80TPH mobile hot mix asphalt plant

Product Description

QLB series mobile asphalt mixing plant is a double-shaft asphalt equipment with a special design of drying drum and double-shaft mixer, with a capacity range of 10-80 tons per hour.

specialtyQLB series mobile asphalt mixing plant

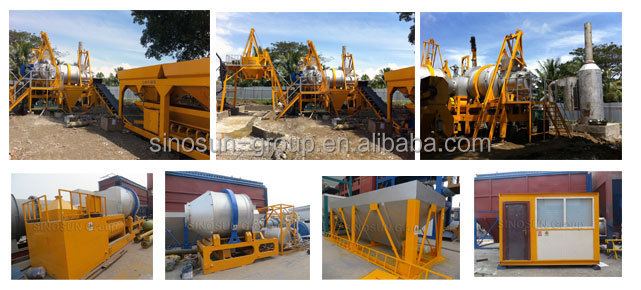

1. QLB series asphalt equipment adoptsModular design, easy to transport, disassemble and install.

2. Easy expansion of QLB series asphalt plantmobile, which is convenient to use in different working conditions.

3. The drum adopts gear transmission, frequency conversion, forward and reverse rotation, and intermittent heating.

4. Double shaft stirring, mass production. The blade and liner are made of high wear-resistant material for long service life.

5. The standard configuration of QLB mobile asphalt station isCyclone filter.Optional: water dust filter or bag filter.

6. The aggregate, asphalt and filler are all measured intermittently, with high precision and reliable performance.

7. Control andPLC operation, with manual/automatic operation mode.

Main technical parameters of QLB series asphalt mixing plant

Model		QLB-10	QLB-15	QLB-20	QLB-30	QLB-40	QLB-60	QLB-80
Capacity (tons/hour)		10	15	20	30	40	60	80
Installed power (kw)		41	55	63	105	125	158	200
Hot asphalt storage hopper capacity (m³)		3	5	5	9	9	9	20
Weighing accuracy	total	≤500kg ±3%	≤500kg ±3%	≤1000kg ±3%	≤2000kg ±3%	≤2000kg ±3%	≤2x1500kg ±3%	≤2x1500kg ±3%
	filler	≤80kg ±2%	≤80kg ±2%	≤80kg ±2%	≤180kg ±2%	≤180kg ±2%	≤300kg ±2%	≤300kg ±2%
	asphalt	≤80kg ±2%	≤80kg ±2%	≤80kg ±2%	≤180kg ±2%	≤180kg ±2%	≤300kg ±2%	≤300kg ±2%
hot bitumen temperature		130-170°C
Fuel consumption (standard condition)		5-7.5kg/t finished product
dust		Cyclone filter. Optional: water dust filter or bag filter.

project

Over the years, we have provided high-quality asphalt mixing plant accessories, mobile asphalt mixing plants, continuous asphalt mixing plants and other related products to the asphalt industry.

Our asphalt equipment products are cost-effective, user-friendly, easy to maintain and strong after-sales service.

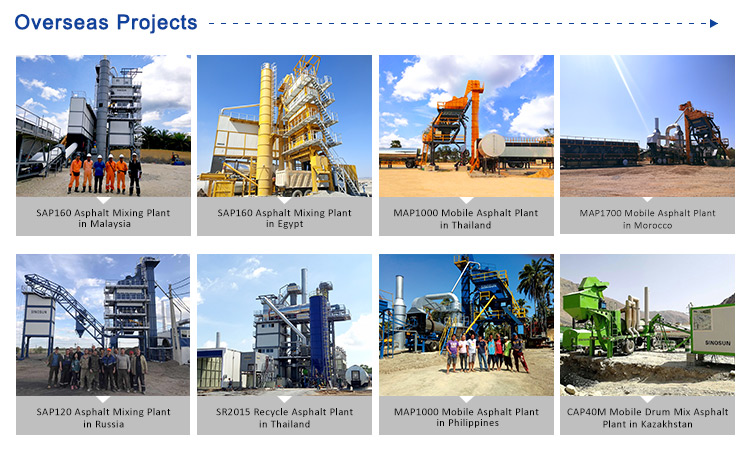

At present, these asphalt equipment products have been widely used in road construction projects in Russia, the United States, Thailand, Romania, Poland, Brazil, the Philippines, Indonesia, Peru, Canada, Bangladesh and other domestic and foreign road construction projects. In Africa, we have exported to Ethiopia, Angola, Algeria and Libya etc.
