SAP80 Asphalt Mixing Plant 80TPH Bitumen Machine
-
Supplier: Zhengzhou SINOSUN Machinery Co., Ltd. -
Region: Henan, China -
Contact: Ms Sinosun Li -
Price: $250000.00 /set -
Min. Order: 1 set
| Mixing Type: | Hot Mix Batch; | Supply Ability: | 20 Set/Sets per Month SAP80 Asphalt Mixing Machine 80TPH Bitumen Plant; |
| Core Components: | PLC,Gearbox,Motor,Gear,Pump; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
| Machinery Test Report: | Provided; | Place of Origin: | Henan China; |
| Control system: | PLC+Touching Screen+Manual; | UNIQUE SELLING POINT: | High operating efficiency; |
| Type: | Stationary type; | Applicable Industries: | Building Material Shops,Manufacturing Plant,Construction works ; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,INSTALLMENT; | Product name: | SAP80 Asphalt Mixing Plant 80TPH Bitumen Machine; |
| Warranty of core components: | 1 Year; | Local Service Location: | Egypt,Philippines,Peru,Mexico,Russia,Thailand,Malaysia,Morocco,Kyrgyzstan,Tajikistan; |
| Showroom Location: | Egypt,Philippines,Peru,Mexico,Russia,Thailand,Kyrgyzstan,Tajikistan,Malaysia,Morocco; | Condition: | New; |
| Dimension(L*W*H): | 40X38.4X15.5m; | Application: | High-grade Asphalt Road Paving; |
| Port: | Qingdao port,Shanghai port,China; | Operation: | Automatic/Manual; |
| Power: | 240-260Kw; | Marketing Type: | New Product 2020; |
| Fuel Consumption: | Diesel Consumption 6.5-7.5 Kg /ton; | Brand Name: | SINOSUN; |
| Weight: | 70-80ton; | Packaging Detail: | SAP80 Asphalt Mixing Plant 80TPH Bitumen Machine is packed by 40HQ container and 20GP container.; |
| Color: | Customizable; | Dust Collection: | Bag filter; |
| After-sales Service Provided: | Video technical support,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service; | Voltage: | 380V;50Hz; |
| Package Preview: | ; | Rated capacity: | 80 TPH; |
| Certification: | ISO,CE,EAC; | Warranty: | 1 Year; |
| Video outgoing-inspection: | Provided; |

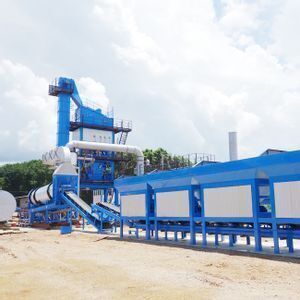

SAP80 Asphalt Mixing Plant 80TPH Bitumen Machine
SINOSUN asphalt plants are designed for international market and could be customized according to different requirements, covering a diverse range of products from 40 TPH to 320 TPH.
SAP series Hot Asphalt Mixed Batch Plant is the final solutions for customer requirements on quality , environment and economical investment.

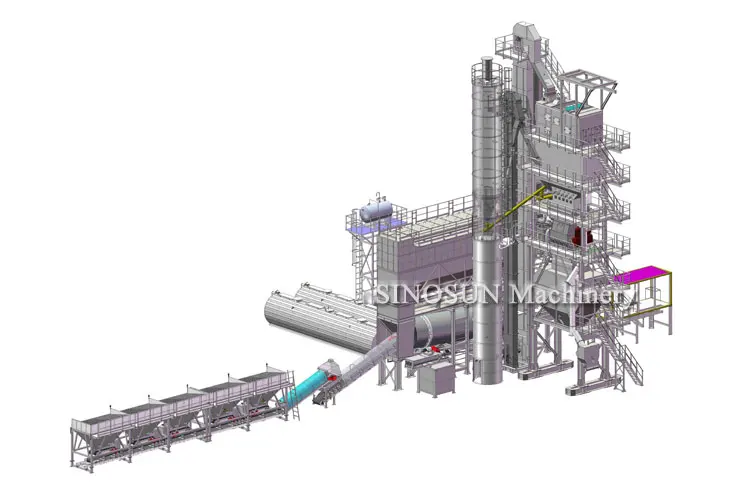

Components of SAP series Asphalt Mixing Plant
Cold aggregate feeding system
Drying System (Drying Drum & Burner)
Hot Aggregate Elevator
Mixing Tower (Vibrating Screen,Main Tower, Mixer,Weighing System)
Bitumen Supplying System
Dust Collecting System (Primary Dust Collecting,Secondary Dust Collecting)
Electrical Control System
Filler Supplying System
Features Of SAP series Asphalt Mixing Plant / Bitumen Machine
1.SAP Asphalt Plant adopts modular structure, reasonable layout, simple and compact structure, suitable for container transportation, installation demolition convenient.
2.The Asphalt Plant is designed according to standard high cabinet container, suitable for the construction requirement in both home and abroad.
3.All the components can put into the container, can greatly reduce transport cost.
4.No foundation and modular design, can induce the install and disassembly time to the shortest.
Technical parameter of SAP series Bitumen Plant
|
Capacity |
SAP80 |
SAP120 |
SAP160 |
SAP240 |
SAP320 |
SAP400 |
|
80t/h |
120t/h |
160t/h |
240t/h |
320t/h |
400t/h |
|
|
Max capacity of oblique belt machine |
Width 500mm |
Width 600mm |
Width 650mm |
Width 800mm |
||
|
80t/h |
120t/h |
160t/h |
240t/h |
320t/h |
400t/h |
|
|
Max capacity of dry roller( mm) |
1600×6800 |
1800×8000 |
2200×8500 |
2800×9000 |
2800×11000 |
2800×13000 |
|
80t/h |
120t/h |
160t/h |
240t/h |
320t/h |
400t/h |
|
|
Max burning amount of burner |
Coal burner |
|||||
|
1300kg/h |
1700kg/h |
2500kg/h |
3600kg/h |
4500kg/h |
6000kg/h |
|
|
Filtrating area of bag dust collector( m2) |
Pulse Jet |
|||||
|
400 |
480 |
624 |
896 |
1152 |
1440 |
|
|
Recycling screw conveyor |
12t/h |
13.5t/h |
18t/h |
30t/h |
46t/h |
60t/h |
|
Blower |
900m3/(m) |
900m3/(m) |
1200m3/(m) |
1600m3/(m) |
2200m3/(m) |
2700m3/(m) |
|
Flue pipe( mm) |
1200×9600 |
1200×10000 |
1300×9600 |
1300×12000 |
1400×12000 |
1500×12000 |
|
Max. capacity of hot aggregate elevator |
Chain elevating |
|||||
|
110t/h |
130t/h |
170t/h |
260t/h |
340t/h |
420t/h |
|
|
Max. capacity of vibrating screen |
80t/h |
120t/h |
160t/h |
240t/h |
340t/h |
420t/h |
|
Interval capacity of hot aggregate hopper |
4 interval type |
5 interval type |
6 interval type |
|||
|
Weighting device |
Remote display of electronic gauge) |
|||||
|
Aggregate:±0.3% |
||||||
|
Bitumen :±0.15% |
||||||
|
Fine aggregate:±0.3% |
||||||
|
Mixer |
Double-axis forcing stirring batch |
|||||
|
Single-unit drive 1000kg/lot |
Single-unit drive 1500kg/lot |
Single-unit drive 2000kg/lot |
Single-unit drive 3000kg/lot |
Single-unit drive 4000kg/lot |
Single-unit drive 5000kg/lot |
|
|
Discharging amount of bitumen injector |
Self-flow |
Screw pump injection type |
||||
|
300L/min |
500L/min |
700L/min |
900L/min |
900L/min |
1200L/min |
|
|
Max. capacity of filler elevator |
Hopper elevating |
|
|
|
||
|
15t/h |
15t/h |
20t/h |
|
|
|
|
|
Spiral conveyor |
15t/h |
20t/h |
24t/h |
36t/h |
44t/h |
60t/h |
|
Operating panel |
Computer display |
|||||
|
Drive panel |
Indoor type |
|||||
|
248kw |
311kw |
500kw |
750kw |
870kw |
960kw |
|
For over years, we supplied the asphalt industry with high quality asphalt batching plant parts, mobile asphalt mixing plant,continous asphalt mixing plant and other reletaed products.
Our asphalt plant products are cost effective, user friendly, easy to maintain and strong after - sales services.
Now these asphalt plant products have been widely used in home and abroad road construction project, such as Russia, USA,Thailand, Romania , Poland , Brazil , Philippines , Indonesia, Peru, Canada, Bangladesh etc. In Africa , we have exported to Ethiopia , Angola , Algeria and Libya etc.
 |
 |
 |
| 40-400TPH Stationary Asphalt Plant | 40-160TPH Mobile Asphalt Plant | 20-120TPH Drum Mix Asphalt Plant |
 |
 |
 |
| 6-10TPH Emulsion Bitumen Plant | 4-10 TPH Bitumen Melting Machine | Bitumen Tank for Asphalt Plant |
SINOSUN is one of China’s dominant and professional manufacturers and exporters of Precisioned Asphalt Mixing Plants and related asphalt plant equipment.
We mainly supply:
1.Stationary asphalt batching plant (SAP series)
2.Recycle asphalt mixing plant (RAP series)
3.Mobile asphalt mixing plant ( MAP series)
4.Continuous asphalt mixing plant (CAP series)
5.Twin-shaft asphalt mixing plant (QLB series)
6.Twin-drum asphalt mixing plant (SLB series)
Q:Which countries your equipment have been exported?
A:Thailand, Philippines, Indonesia, Myanmar, Russia, Bangladesh, Kazakhstan, Uzbekistan, Russia, Romania, Somalia, Kenya, Malawi, Nigeria, Togo, Mozambique, Oman, South Africa, America, Peru, Chile, Colombia, Venezuela, Australia, etc.
Q:How many workers are needed to operate one set of asphalt plant?
A:1 loader operator, 1 mechanical, 1 electrician, 1 supervisor ,1 the operator of the whole plant.
Q:How many days are used for installation of one set asphalt plant?
A:Around 20-30 days, according to local situation.
Q:Do you provide overseas erection and training service?
A:Yes, we can send experienced engineers to your country, guide erection and commissioning and train your workers how to operate the plant.
Q:How long is the delivery time?
A:30-40 days, according to different configuration. We promise to delivery on time.
Q:Can you sent me some spare parts freely?
A:Some spare parts will be sent to you together with asphalt plants freely.
Q:How to go to your asphalt plant factory easily?
A:Our city has airport. If by air, you can fly from Guangzhou/Beijing/Shanghai no more than 2 hours. Also you can fly to Zhengzhou, we send car to pick you up there.
Q:Can I visit your factory?
A:Of course. We warmly welcome you to visit our factory. And we provide you great services like airport pick up, hotel booking, etc.
Q:How long is the warranty of your asphalt plant?
A:12 months
Q:What payment terms you accept?
A:We accept T/T, L/C,D/A,D/P, Western Union, MoneyGram and other ways according to the practical situation.
Get the quotation of asphalt mixing plant, welcome contact us at any time.
Pls following us for more information of asphalt plant and related equipment.
-
