60TPH-160TPH Mobile Type MAP Asphalt Mixing Plant Equipment

Click here to contact
Product details
Capacity:60-160ton per hour;Product:60TPH-160TPH Mobile Type MAP Asphalt Mixing Plant Equipment;
Color:Client's Customized;Brand Name:SINOSUN;
Condition:New;After-sales Service Provided:Video technical support,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Video outgoing-inspection:Provided;UNIQUE SELLING POINT:Remote monitoring system;
Place of Origin:Henan China;Weight:95T;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,INSTALLMENT;Warranty:1 Year;
Burner:Italy EBICO Oil Burner/Coal Burner;Port:Qingdao,Shanghai,Tianjin port,China;
Local Service Location:Egypt,Philippines,Russia,Thailand,Malaysia,Morocco;Warranty of core components:1 Year;
Dimension(L*W*H):maximum height 40m, maximum width 35m;Supply Ability:30 Set/Sets per Month Asphalt Mixing Plant Equipment;
Batch Mixer:800KG-2000KG;Bitumen Heating:Hot Oil Heater;
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Core Components:PLC,Gearbox,Motor,Pump;
Applicable Industries:Manufacturing Plant,Construction works ;Marketing Type:New Product 2020;
Packaging Detail:Our 60TPH-160TPH Mobile Type MAP Asphalt Mixing Plant Equipment is packed by 40HQ containers.;Package Preview:;
Dust Collector:Bag Filter;Voltage:220V--380V;
Machinery Test Report:Provided;Showroom Location:Egypt,Philippines,Russia,Thailand,Malaysia,Morocco;
Operation:Computer / Manual control;Type:Auto Batch & Mobile Type asphalt plant;
Filler Silo:30Ton;Power:340KW;
Certification:EC, ISO, EAC;

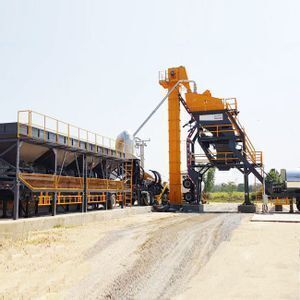

60TPH-160TPH Mobile Type MAP Asphalt Mixing Plant Equipment

Product Description

Our mobile asphalt batching plant adopts PLC programming controller and computer which can carry on the automatic and manual control of every part and every production process. Mobile asphalt batching plant features environmental friendly. The dust emission is less than 20 mg/Nm3 with no pollution to the environment.
Main features:

1. Adopt Korea DMI mobile asphalt batching plant structure design, high mobility performance, small land occupied, convenient transportation and  little downtime.
2. Adopt AVIC brand Aviation Plugs, easy connection, fast  disassembly and assembly wires.
3. Simple and convenient production technology process, accurate, highly reliable and stable control system.
4. Move fast, save cost.
5. System of drying, weighing, mixing, discharging are full-automatically controlled.
6. All the units are separated mutually while each unit can achieve seamless connection.

Introducing Germany Technology for the mixer, the mobile asphalt batching plant is widely applied to the construction of airport runway, port, road and bridge and they are the ideal equipment for emergency building of specialized road.

This equipment, with modular construction and compact design, is easy to install, transport and dismantle. It has the following mobile chassis:
1. Mobile Cold Aggregate Feeding System
2. Mobile Drum Dryer with Oil Burner
3. Mobile Mixing Tower
4. Mobile Bag House Dust Collector
5. Mobile Control Room with One Diesel Storage Tank
6. Mobile Bitumen Tank(Option)
7. Mobile Filler Storage and Supplying System(Option)

Mobile Cold Aggregate Feeding System

The aggregate feeding hoppers and aggregate collecting belt are mounted on one mobile chassis.
The belt feeder that adopts the frequency speed regulator has long speed range, so it runs smoothly and efficiently.
Each discharging gate of hopper has an alarm for the warning of no aggregate in the bins.
There is a vibrator on the wall of bin to avoid blockage.
On the top of each hopper there is a screen to prevent the entry of bigger aggregate, ensuring the reliability of system.


Mobile Drum Dryer with Oil Burner
The mobile drum dryer adopts 4 frictional wheels, which is drived by four synchronous motors. It runs smoothly with low noise.
The temperature of the dried aggregate directly influences the temperature of the final product; Drying efficiency directly influences the consumption of the fuel, thereby the reasonable structure is very important. We fully absorbed the abroad advanced technology of mixing and got satisfying effect and realized the anticipated object.

About the oil burner, we have international brand and domestic brand for you to choose.

Mobile Mixing Tower
The mixing tower includes the vibration screen, hot aggregate storage bin and weighing hopper, asphalt mixer, bitumen weighing, filler weighing(option). All these parts are mounted on one trailer chassis. Easy for installation and transferring to other worksite after you finished project in one place.
The reducer for the mixer can be domestic brand or imported Germany NORD Brand.
The weighing sensors can be Mettler Toledo, USA brand or Chinese Taiwan brand: Airtac.



Mobile Bag House Dust Collector
This dust collecting system is equipped with primary gravity dust collector and secondary bag house dust collector. All the collected aggregate grain is conveyed to the hot aggregate elevator for recycling use.
The secondary dust collecting system bag house dust collector. The bags adopt high temperature resistance material. It can work under rated high temperature,it has long life-span and good ventilation. The efficiency of dust collector can reach up to more than 99%,which fully meet environment protection standard.
The collected filler can be recycling used. Of course, if you do not need, it can be discharged by screw conveyor.

Technical Parameters

Main parameters of SINOSUN mobile asphalt batching plant:

Model MAP1000 MAP1300 MAP1500 MAP2000 Remarks
Total power 215kw 235kw 340kw 430kw Standard configuration
Capacity 80T/H 104T/H 120T/H 160T/H 5% moisture
Mixer Capacity 1000kg 1300kg 1500kg 2000kg Rated
Mixing period 45s
Cold aggregate hopper quantities 4 4/5
Fuel consumption ≤6.5kg/T finished product Light/heavy oil/Gas
Finished product temperature(°C) 140-180
 weighting precision ±2.5% Dynamic
Air emission concentration ≤20mg/Nm3 NOMEX Bag filter
Trailing speed 40-100Km/h Air brake System
Trailer quantities   5 units (Excluding Bitumen tank,Filler silo)
Packaging & Shipping

Project

For over years, we supplied the asphalt industry with high quality asphalt batching plant parts, mobile asphalt mixing plant,continous asphalt mixing plant and other reletaed products.

Our asphalt  plant products are cost effective, user friendly, easy to maintain and strong after - sales services.

Now these asphalt plant products  have been widely used in home and abroad road construction project, such as Russia, USA,Thailand, Romania , Poland , Brazil , Philippines , Indonesia, Peru, Canada, Bangladesh etc. In Africa , we have exported to Ethiopia , Angola , Algeria and Libya etc.



Related Products
40-400TPH Stationary Asphalt Plant 40-160TPH Mobile Asphalt Plant 20-120TPH Drum Mix Asphalt Plant
6-10TPH Emulsion Bitumen Plant 4-10 TPH Bitumen Melting Machine Bitumen Tank for Asphalt Plant



Company Information

SINOSUN is one of China’s dominant and professional manufacturers and exporters of Precisioned Asphalt Mixing Plants and related asphalt plant equipment.

We mainly supply:

1.Stationary asphalt mixing plant (SAP series)

2.Recycle asphalt mixing plant (SR series)

3.Mobile asphalt mixing plant ( MAP series)

4.Continuous asphalt mixing plant (CAP series)

5.Twin-shaft asphalt mixing plant (QLB series)

6.Twin-drum asphalt mixing plant (SLB series)

7.Emulsion Bitumen Plant (RH series)

8.Bitumen Melting Machine (DT series)



Our Services

FAQ

Q:Which countries your equipment have been exported?



A:Thailand, Philippines, Indonesia, Myanmar, Russia, Bangladesh, Kazakhstan, Uzbekistan, Russia, Romania, Somalia, Kenya, Malawi, Nigeria, Togo, Mozambique, Oman, South Africa, America, Peru, Chile, Colombia, Venezuela, Australia, etc.



Q:How many workers are needed to operate one set of asphalt plant?



A:1 loader operator, 1 mechanical, 1 electrician, 1 supervisor ,1 the operator of the whole plant.



Q:How many days are used for installation of one set asphalt plant?



A:Around 20-30 days, according to local situation.



Q:Do you provide overseas erection and training service?



A:Yes, we can send experienced engineers to your country, guide erection and commissioning and train your workers how to operate the plant.



Q:How long is the delivery time?



A:30-40 days, according to different configuration. We promise to delivery on time.



Q:Can you sent me some spare parts freely?



A:Some spare parts will be sent to you together with asphalt plants freely.



Q:How to go to your asphalt plant factory easily?



A:Our city has airport. If by air, you can fly from Guangzhou/Beijing/Shanghai no more than 2 hours. Also you can fly to Zhengzhou, we send car to pick you up there.



Q:Can I visit your factory?



A:Of course. We warmly welcome you to visit our factory. And we provide you great services like airport pick up, hotel booking, etc.



Q:How long is the warranty of your asphalt plant?



A:12 months



Q:What payment terms you accept?



A:We accept T/T, L/C,D/A,D/P, Western Union, MoneyGram and other ways  according to the practical situation.
