QLB10 Mini Mobile Asphalt Mixing Plant For Sale
-
Supplier: Zhengzhou SINOSUN Machinery Co., Ltd. -
Region: Henan, China -
Contact: Ms Sinosun Li -
Price: $35000.00 /set -
Min. Order: 1 set
| UNIQUE SELLING POINT: | Low Maintenance Cost; | Port: | Qingdao port,Shanghai Port,China; |
| Certification: | ISO9001, CE,EAC; | Dimension(L*W*H): | 20GP; |
| After Warranty Service: | Video technical support,Online support,Spare parts; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,PAYPAL; |
| Warranty of core components: | 1 Year; | Application: | Maintenance; |
| Condition: | New; | Place of Origin: | Henan, China; |
| Dust Collection: | Cyclone filter; | Power: | 41KW; |
| Product name: | QLB10 Mini Mobile Asphalt Mixing Plant For Sale; | Local Service Location: | Egypt,Philippines,Indonesia,Russia,Thailand,Malaysia,Morocco; |
| Machinery Test Report: | Provided; | Type: | Mobile; |
| Showroom Location: | Egypt,Philippines,Russia,Thailand,Kazakhstan,Tajikistan,Malaysia,Morocco; | Packaging Detail: | Our SINOSUN QLB10 Mini Mobile Asphalt Mixing Plant is packed by containers.; |
| Hot Asphalt temperature: | 130-170°C; | Core Components: | PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump; |
| Control system: | PLC+colorized Touching Screen; | Brand Name: | SINOSUN; |
| Weight: | 50000 kg; | Fuel consumption (standard conditions): | 5-7.5kg/t finished product; |
| After-sales Service Provided: | Video technical support,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service; | Voltage: | 220V/380V-50Hz; |
| Package Preview: | ; | Burner: | Italy EBICO Oil Burner; |
| Mixer capacity: | 10t/h; | Supply Ability: | 40 Sets per Month Mini Mobile Asphalt Mixing Plant; |
| Applicable Industries: | Manufacturing Plant,Construction works ; | Marketing Type: | Ordinary Product; |
| Video outgoing-inspection: | Provided; | Warranty: | 1 Year; |
| Color: | Special Request; |

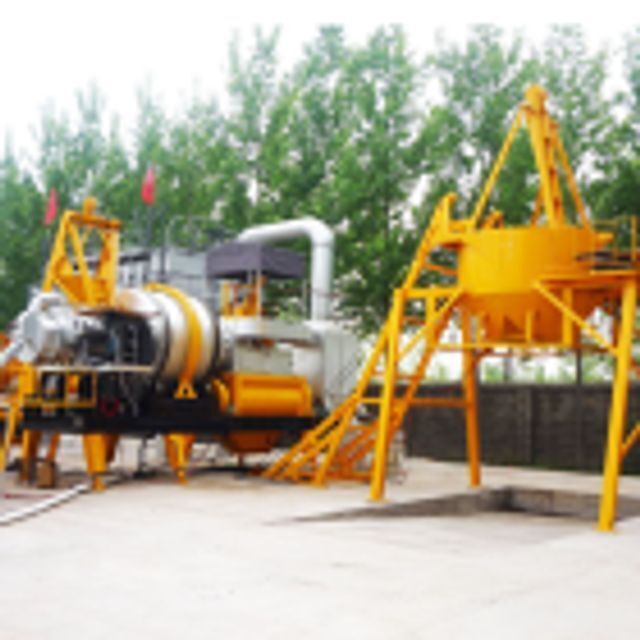

QLB10 Mini Mobile Asphalt Mixing Plant For Sale

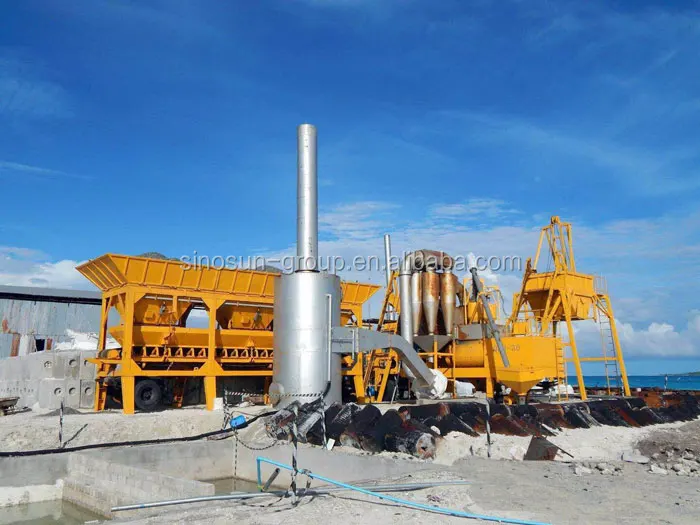

QLB series mobile asphalt plant is twin-shaft type asphalt equipment, with specific design of dryer drum and double shaft mixer, capacity range 10-80 ton per hour.
Characteristic of QLB series asphalt plant
QLB series asphalt plant adopting modular design, easy for transportation, disassembly and installation.
QLB series asphalt plant easily expanded into mobile type, convenient for using in different working conditions.
The drum adopts gear drive, frequency conversion, positive and negative going motion, intermittent heating.
It’s double shaft mixing, batch production. Blade and lining board adopts high wear-resisting material, with long service life.
The standard configuration of QLB Mobile asphalt plant is cyclone filter. Optional: water dust filter or bag house collector.
The aggregate, bitumen and filler all adopt the batch-type metering, with high precision and reliable performance.
Control with PLC operation, with manual/automatic operation modes.
Main technical parameter of QLB series asphalt plant
|
Model |
QLB-10 |
QLB-15 |
QLB-20 |
QLB-30 |
QLB-40 |
QLB-60 |
QLB-80 |
|
|
Capacity |
10 |
15 |
20 |
30 |
40 |
60 |
80 |
|
|
Installation Power (kw) |
41 |
55 |
63 |
105 |
125 |
158 |
200 |
|
|
hot asphalt storage hopper capacity (m³) |
3 |
5 |
5 |
9 |
9 |
9 |
20 |
|
|
Weighing Accuracy |
Aggregate |
≤500kg ±3% |
≤500kg ±3% |
≤1000kg ±3% |
≤2000kg ±3% |
≤2000kg ±3% |
≤2x1500kg ±3% |
≤2x1500kg ±3% |
|
Filler |
≤80kg ±2% |
≤80kg ±2% |
≤80kg ±2% |
≤180kg ±2% |
≤180kg ±2% |
≤300kg |
≤300kg |
|
|
Bitumen |
≤80kg |
≤80kg |
≤80kg |
≤180kg |
≤180kg |
≤300kg |
≤300kg |
|
|
Hot Asphalt temperature |
130-170°C |
|||||||
|
Fuel consumption (standard conditions) |
5-7.5kg/t finished product |
|||||||
|
Dust Collection |
Cyclone filter(Optional: water dust filter or bag house collect |
|||||||
 |
 |
 |
| 40-400TPH Stationary Asphalt Plant | 40-160TPH Mobile Asphalt Plant | 20-120TPH Drum Mix Asphalt Plant |
 |
 |
 |
| 6-10TPH Emulsion Bitumen Plant | 4-10 TPH Bitumen Melting Machine | Bitumen Tank for Asphalt Plant |
SINOSUN is one of China’s dominant and professional manufacturers and exporters of Precisioned Asphalt Mixing Plants and related asphalt plant equipment.
We mainly supply:
1.Stationary asphalt mixing plant (SAP series)
2.Recycle asphalt mixing plant (SR series)
3.Mobile asphalt mixing plant ( MAP series)
4.Continuous asphalt mixing plant (CAP series)
5.Twin-shaft asphalt mixing plant (QLB series)
6.Twin-drum asphalt mixing plant (SLB series)
7.Emulsion Bitumen Plant (RH series)
8.Bitumen Melting Machine (DT series)
Warmly welcome all of customers come to visit our asphalt mixing plant and seek for cooperation !
Q:Which countries your equipment have been exported?
A:Thailand, Philippines, Indonesia, Myanmar, Russia, Bangladesh, Kazakhstan, Uzbekistan, Russia, Romania, Somalia, Kenya, Malawi, Nigeria, Togo, Mozambique, Oman, South Africa, America, Peru, Chile, Colombia, Venezuela, Australia, etc.
Q:How many workers are needed to operate one set of asphalt plant?
A:1 loader operator, 1 mechanical, 1 electrician, 1 supervisor ,1 the operator of the whole plant.
Q:How many days are used for installation of one set asphalt plant?
A:Around 20-30 days, according to local situation.
Q:Do you provide overseas erection and training service?
A:Yes, we can send experienced engineers to your country, guide erection and commissioning and train your workers how to operate the plant.
Q:How long is the delivery time?
A:30-40 days, according to different configuration. We promise to delivery on time.
Q:Can you sent me some spare parts freely?
A:Some spare parts will be sent to you together with asphalt plants freely.
Q:How to go to your asphalt plant factory easily?
A:Our city has airport. If by air, you can fly from Guangzhou/Beijing/Shanghai no more than 2 hours. Also you can fly to Zhengzhou, we send car to pick you up there.
Q:Can I visit your factory?
A:Of course. We warmly welcome you to visit our factory. And we provide you great services like airport pick up, hotel booking, etc.
Q:How long is the warranty of your asphalt plant?
A:12 months
Q:What payment terms you accept?
A:We accept T/T, L/C,D/A,D/P, Western Union, MoneyGram and other ways according to the practical situation.
Get the quotation of asphalt mixing plant, welcome contact us at any time.
Pls following us for more information of asphalt plant and related equipment.
-
