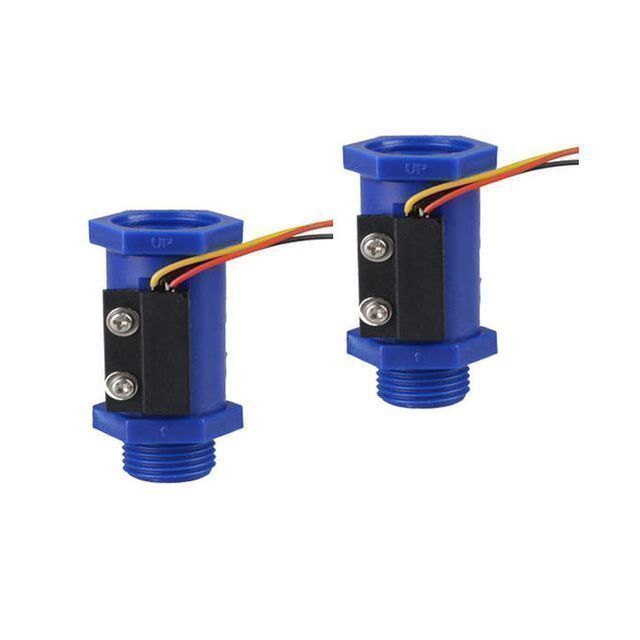

100% full inspection high precision Hall effect water flow sensor meter
- 5.00 1 - 49 pieces
- 4.00 50 - 99 pieces
- 2.50 >=100 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Operating Voltage: | 3V~18V DC | Material: | Nylon and Fiber |
| Flow characteristics: | F=8N (F=HZ, N=L/Min.) | maximum. current: | 25MA(DC12V)/15MA(DC5V) |
| Gross weight per piece: | 0.050 kg | output signal: | Pulse wave(Hz) |
| brand: | Shenzhen Fast | Start the process: | ≥1L/min. |
| Product Category: | Latch Hall element | Key words: | water flow sensor |
| place of origin; place of origin: | Guangdong, China | pressure: | ≤1.75Mpa |
| Custom Support: | OEM, ODM | Single package size: | 28X20X15 cm |
| Packaging Preview: | Packaging Details: | factory packing | |
| model: | FHS-2P-1T30-4N | Warranty: | 1 year |
| Sales unit: | single product | Product color: | blue |
| type: | Flow Sensors |
Product Description
product name | water flow sensor |
application | Circulating water systems such as chillers and water heaters. |
Material | Nylon, Stainless Steel, Brass |
Flow range | 2-30L/min 0.3-5L/min |
Electrical data | 4-24 VDC |
greatest pressure | 1 MPa～2 MPa |
cable type | UL1007-AWG24 |
output | The red line is connected to "+", the black line is connected to "-", and the yellow line is the pulse signal output. |
Connection size | 1/4", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2". |
sensor | Hall sensor |
