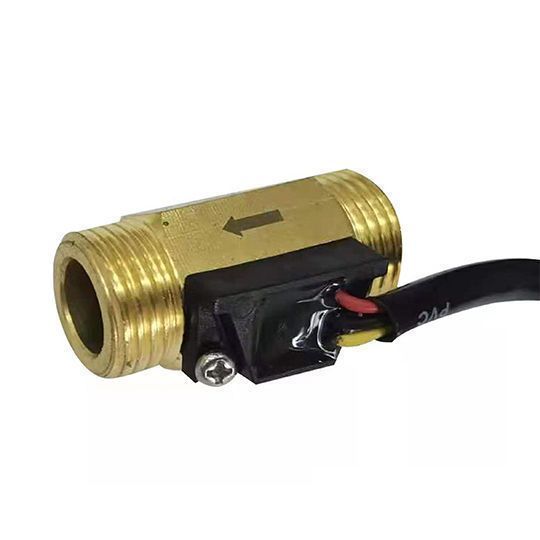

Water Level Flow Reed Switch Sensor Switch for Water Flow Control
- 2.35 1 - 50 pieces
- 2.31 51 - 100 pieces
- 2.28 101 - 500 pieces
- 2.25 >=501 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| brand: | bat | place of origin; place of origin: | Guangdong, China |
| Packaging Details: | brown packaging | Water pressure resistance: | ≤1.75MPa |
| Output pulse high frequency: | >DC4.6V/(DC5V) | Pulse Features: | 8.1-3*Q ± 10% |
| Operating Voltage: | 5-24VDC | Single package size: | 4.4X2.6X2 cm |
| application: | Water heater, kitchen accessories | Output pulse low frequency: | |
| Daily output: | 5000 | Custom Support: | OEM, ODM |
| Sales unit: | single product | type: | Flow Sensors |
| model: | S01 | Working flow range: | 1-30L/MIN |
| Warranty: | 3 years | Installation method: | vertical installation |
| Gross weight per piece: | 0.055 kg |
Product Description
Specification
product name | Hall switch |
type | Water heater, kitchen accessories |
Card | bat |
Operating Voltage | 5-24VDC |
Pulse characteristics | 8.1-3*Q ± 10% |
Output pulse high frequency | >DC4.6V/(DC5V) |
Output pulse low frequency | >DC0.5V/(DC5V) |
Insulation resistance | >100MΩ |
Working flow range | 1-30L/MIN |
Water pressure resistance | ≤1.75MPa |
Installation method | vertical installation |
product material | brass |
daily production | 1000 |
Model | S01 |
