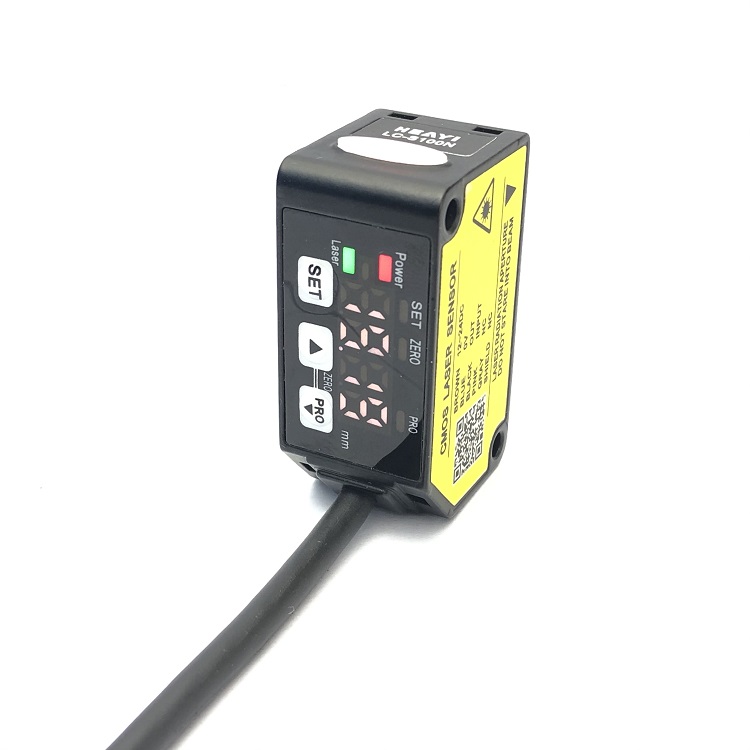

LC-S030MP high-precision laser displacement sensor 25-35mm sensing range, 10um accuracy, suitable for HG-C1030 HG-C1100 HG-C1400 Products from Guangzhou Heyi Intelligent Technology Co., Ltd.

Product Details

theory:	laser sensor	output:	1mW, peak emission
type:	Linear displacement sensor	payment terms:	Western Union, Wire Transfer, Alipay, Paypal
model:	LC-S030MP	port:	Guangzhou/Hong Kong
technology:	Optical	place of origin; place of origin:	Guangdong, China
Warranty:	12 month repair or replacement	output:	Analog and switching outputs
product name:	Laser Displacement Sensor	brand:	hey i
Response time:	Switchable between 1.5ms/5ms/10ms	Packaging Details:	carton nylon bag
Certificate:	CE, Rohs, Reach	describe:	Laser Displacement Sensor
Cable/Connector:	cable	Packaging Preview:
Induction range:	25-35mm	output type:	PNP & 0-5VDC/4-20mA
light source:	Red diode laser Class 2	usage:	Laser Displacement Sensor
Supply capacity:	10000 pieces per month

LC-S030MP High Precision Laser Displacement Sensor 25-35mm Sensing Range, 10um Accuracy

Product Description

Model	LC-S030MN
Card	hey i
usage	High-precision object detection sensor
theory	Optical sensor
output	0-5VDC/4-20mA analog output and switch output
Induction range	25-35mm
sensing objects	opaque object
application	Food/Medical/Chemical/Robot/Electronics/Industrial/Packaging/Plastic Machinery Industry/Textile Machinery Industry/Lithium Battery/Semiconductor Industry
output method	Switch output
Repeatability	01 micron
Linearity	±0.1%FS
temperature characteristics	0.03%FS/°C

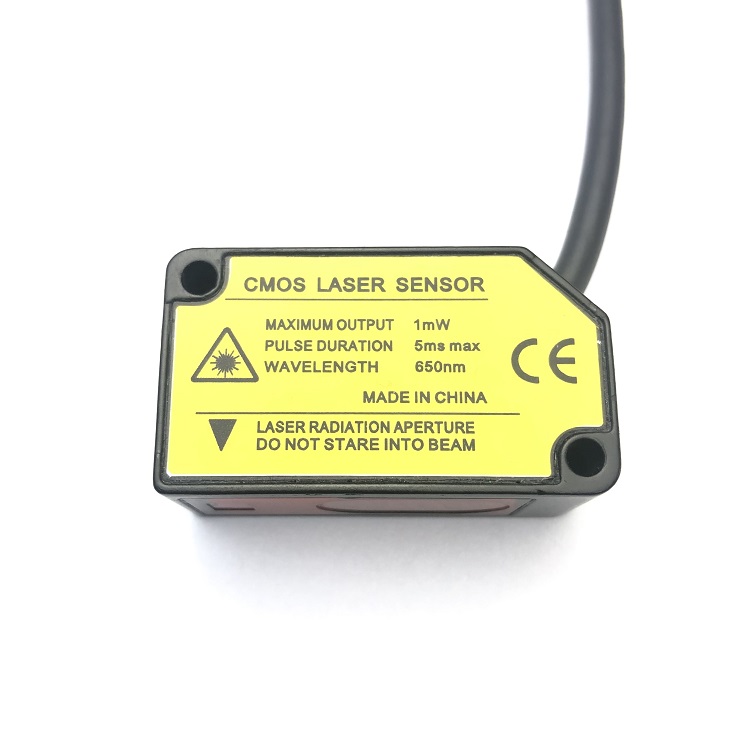

light source	Red laser, class 2, max. Output: 1mW, light beam wavelength: 655nm
Beam diameter	About φ500μm
voltage	12V to 24V DC±10% Ripple P - P10%
current consumption	40mA or less (power supply voltage 24V DC), 60mA or less (power supply voltage 12V DC)
control output	maximum. Load current: 50mA Light ON/, Dark ON, Switchable
Short circuit protection	Provided (auto-recovery type)
Analog output	Output range: 0V-5V (alarm 5.2V) Output impedance: 100Ω
Reaction time	1.5ms/5ms/10ms switchable
external input	NPN non-contact input, valid: 0V to +1.2V DC input impedance: 10KΩ
Shell grade	IP67(IEC)

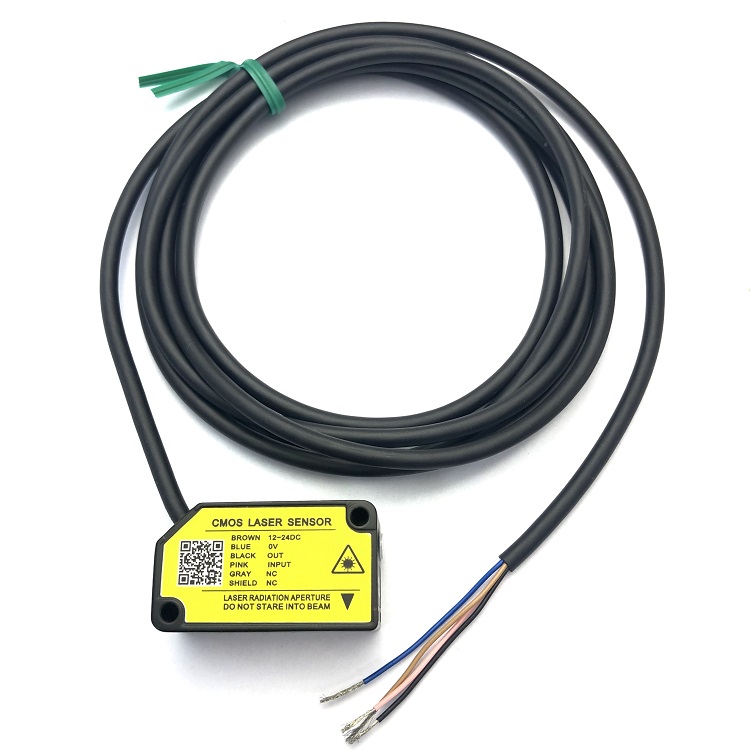

cable	2M composite wire 0.15mm*5 core
housing	Main body case: Aluminum casting, Front cover: Acrylic
