RGB LED sensor color code photoelectric sensor customs data

Click here to contact

Product details

size:	322150	Dimensions / Dimensions:	322150
Function:	Color mark detection	Current - Output (max):	50 mA
Humidity range:	35-85%RH	Current - Supply (Max):	50mA
Rated voltage:	12-24VDC	describe:	Color mark sensor
weight:	about 104 grams	Humble Environment:	35%-85%RH
Sensing objects:	object color	technology:	Optical
Packaging Preview:		Voltage - Power:	12-24V DC
Operating Voltage:	12-24V DC	scope of test:	18-28mm
port:	Guangzhou/Hong Kong	theory:	Optical sensor
model:	EB-S11	place of origin; place of origin:	Guangdong, China
Certificate:	CE, Rohs, Reach	Measuring range:	18-28mm
Induction range:	18-28mm	Packaging Details:	carton nylon bag
Current - Output:	50 mA	Output configuration:	NPN/PNP
brand:	hey i	Operating temperature:	-10 to +55℃
Material:	PC,PBT,Silicone	product name:	Color mark sensor
Warranty:	12 month repair or replacement	Sensing distance:	18-28mm
Acceleration range:	18-28mm	Sensing light:	RGB
Power - Rated:	12-24VDC	output type:	NPN/PNP
Operating temperature:	-10 to +55℃	Installation type:	built-in
powered by:	50 mA	feature:	RGB light source
Resolution (bits):	Not applicable	Rated Current - DC:	50 mA
payment terms:	T/T, Western Union, Alipay, Paypal	Supply capacity:	10000 pieces per month
usage:	color detection sensor	output type:	Switch output
interface:	3 wire cable	output:	Switch output
current:	50 mA	Packaging/Case:	plastic shell
application:	automated industry	frequency:	12-24V DC
Bale:	nylon bag

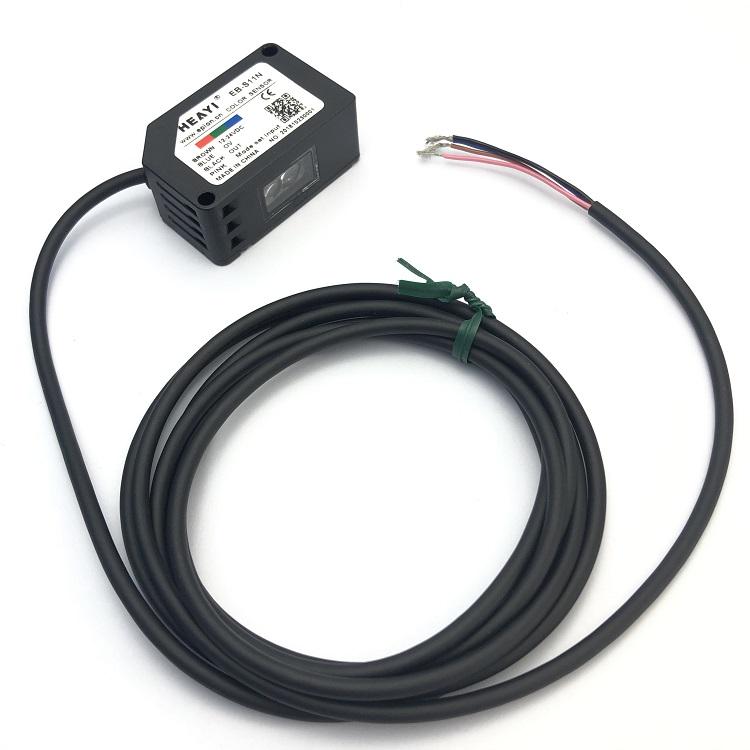

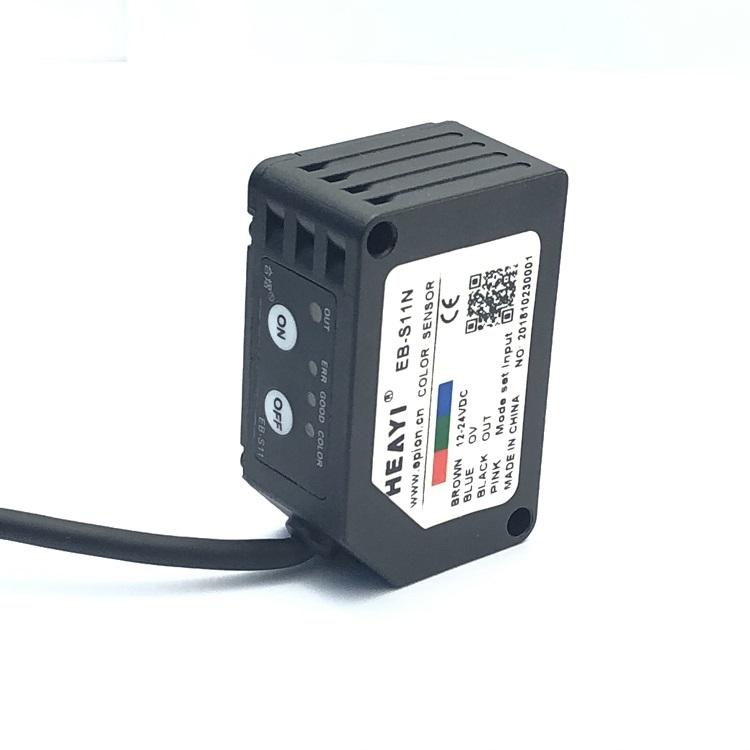

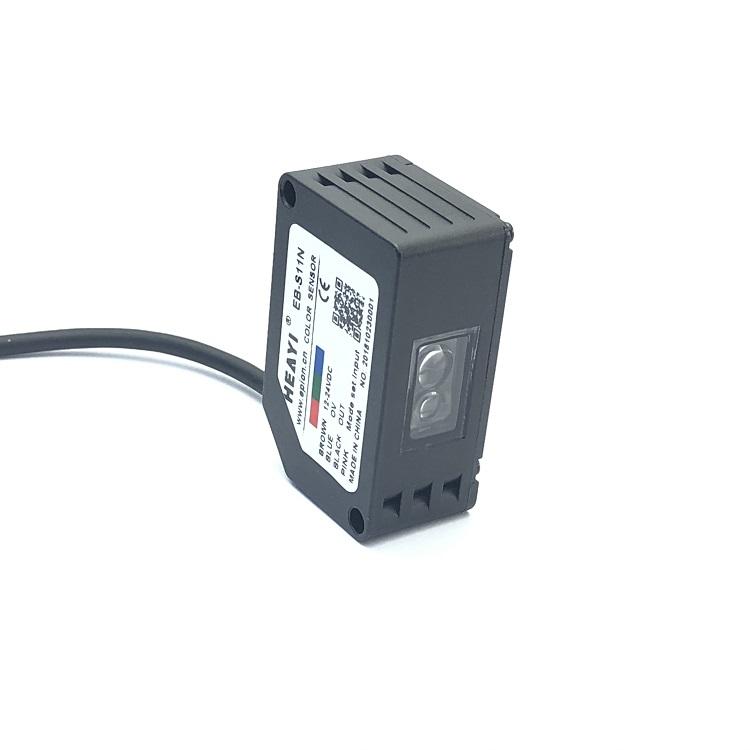

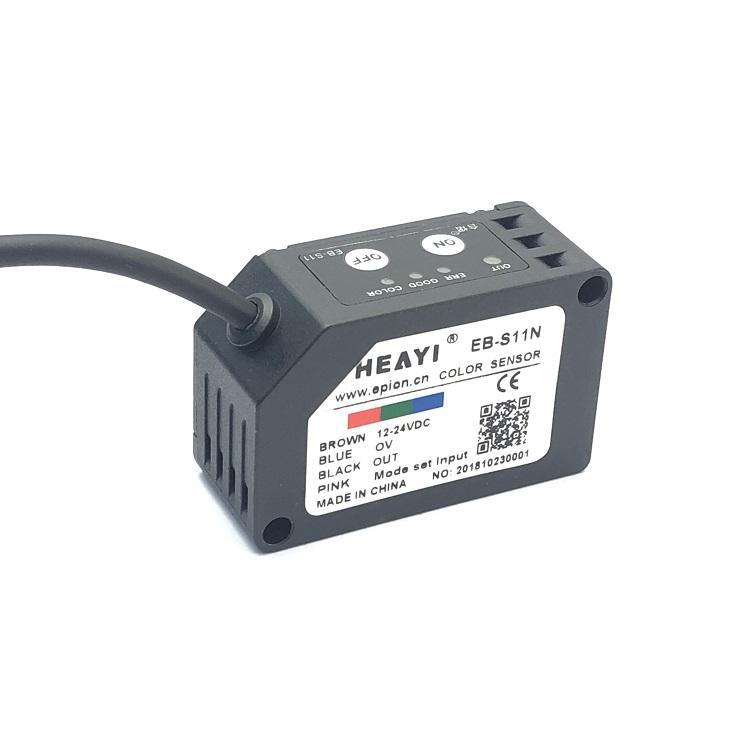

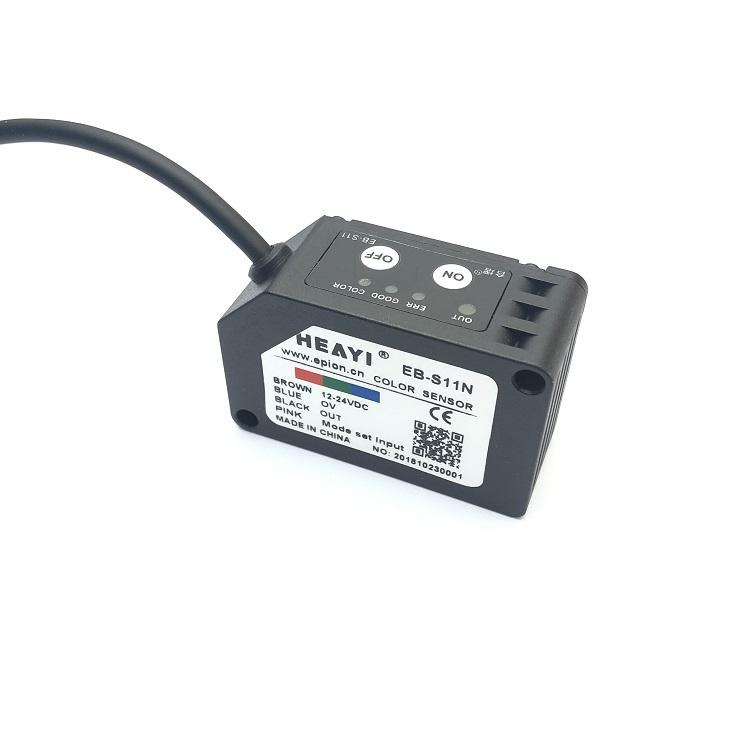

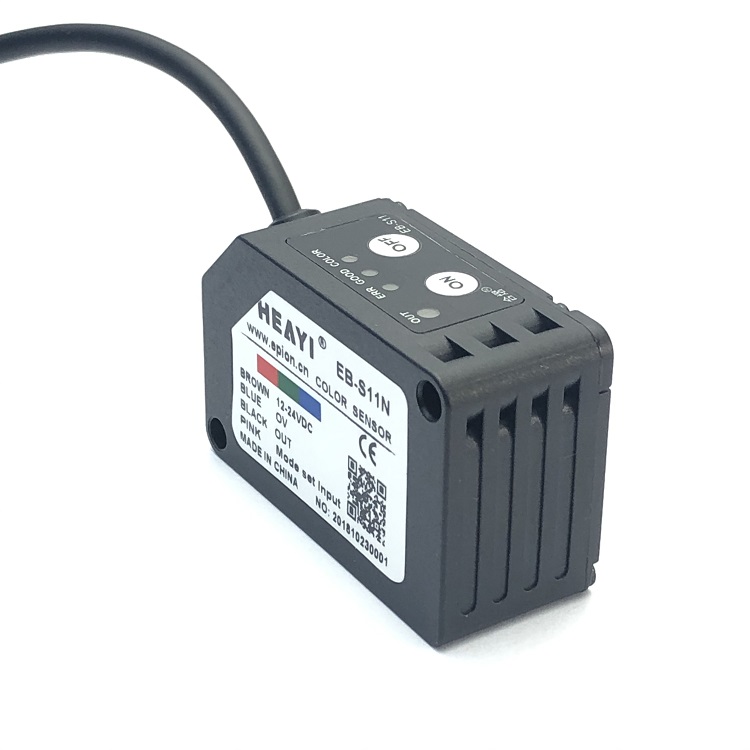

Factor Direct Diffuse RGB LED Light Source Color Mark Sensor

Product Description

Model	EB-S11
Operating mode	Color Mode and Mark Mode
type	Diffuse/Through Beam
Card	hey i
Detection distance	18 to 28 mm
voltage	24V DC + 10% pulsation less than P-P10%
current consumption	Power is less than 850mW (power supply voltage 24V, current consumption below 35mA).
Short circuit protection	Equipment (auto-recovery)
Reaction time	200μs or less
ambient temperature	-10 to +55℃ (no exposure, no freezing)
environment humidity	35 to 85%RH, non-condensing
Optical element	Red/Green/Blue Composite LED (Crest/Wavelength: 640nm/525nm/470nm)
Material	Holder: PBT Operation Panel: PC Operation Button: Silicone Lens: PC
cable	0.2mm² 4 core rubber cable standard 2m difference (color matching) Brown: +V Black: Output Pink: Mode Switch Input Blue: 0V
weight	about 104 grams
light source	RGB LED light source
usage	color detection sensor
theory	Optical sensor
output	Switch output
Induction range	18-28mm
sensing objects	object color
application	printing, packaging
