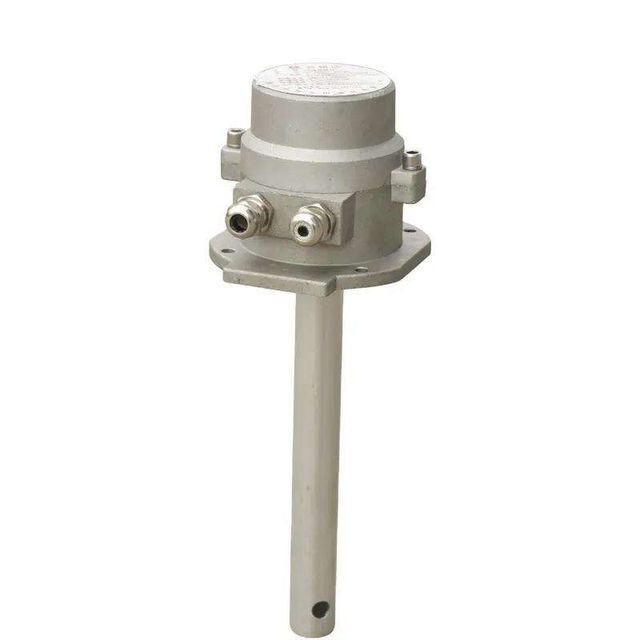

Manufacturer Aluminum Alloy Anti-Spill 5-Wire Optical Sensor

Supplier: Hubei Huate Special Equipment Co., Ltd.
Region: Hubei, China
Contact: Mr Bruce White
Price: $52.90 / 1 - 99 pieces
$48.80 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

usage:	Protect water tank from overflowing	brand:	Xanoke
Operating temperature:	-40~70℃	describe:	/, anti-spill optical sensor
product name:	Manufacturer Aluminum Alloy Anti-Spill 5-Wire Optical Sensor	type:	light sensor
Rated current:	200mA	Installation type:	/
Output:	/	Working medium:	Gasoline, diesel, kerosene
Product Standards:	Q/HT7003-2016	Packaging details:	1 piece in foam, then 1 piece in individual carton.
CNEX mark:	Ex ia IIB T4 Ga	Explosion-proof model:	CNEx16.3848x
Place of origin:	Hubei, China	Single piece packaging size:	11X11X30 cm
Manufacturing date code:	/	PI:	0.75W
Rated voltage:	12VDC	theory:	/
Sales unit:	Single product	series:	/
Package preview:		model:	HTT675e75
Gross weight of single piece:	6.000kg	feature:	/
Response time:	1 second

product specifications

Tank truck overflow detection system anti-overflow optical sensor and socket

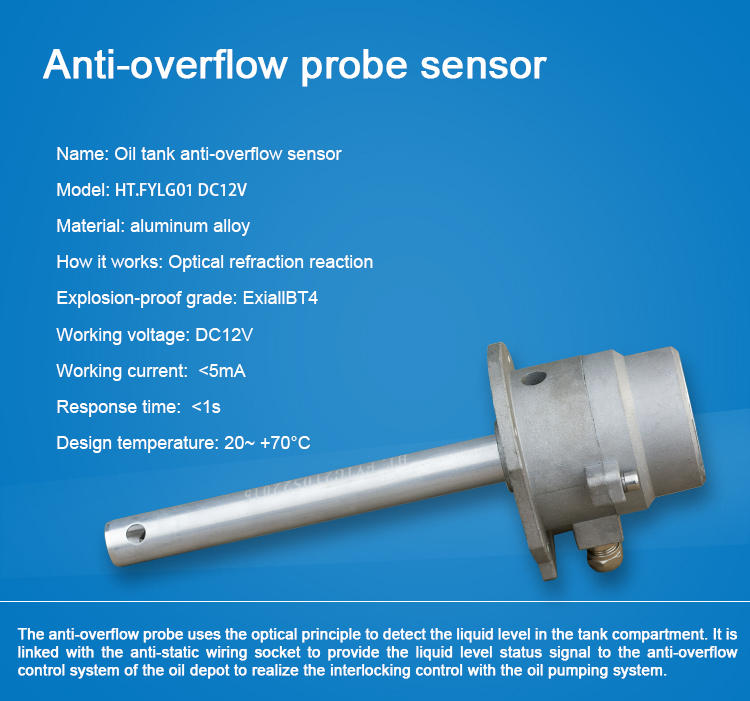

The anti-overflow probe is mainly used when adding materials to tank trucks and tanks. It will send out an internal signal when overcharging occurs.
transmission terminal and prompts the installation platform to stop charging to ensure installation safety.

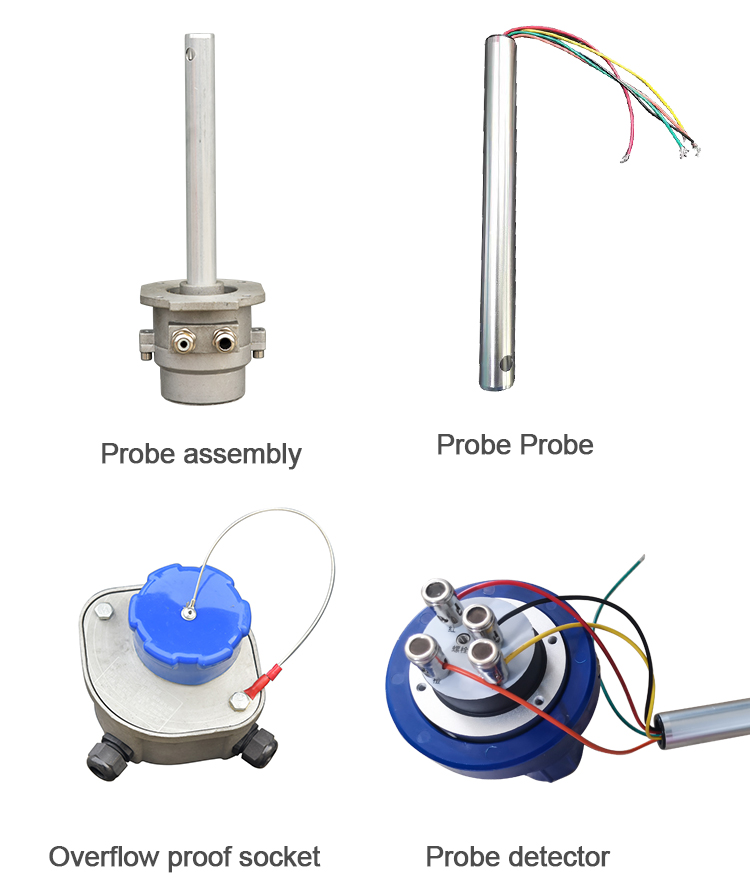

The anti-overflow probe, together with the overflow socket and grounding stud, form an anti-static system.

Tank Truck Overflow Detection System Maintenance Anti-overflow Optical Sensor and Socket
1. Remove all bolts and bolt components for maintenance;
2. No special tools are required for disassembly and assembly.
