Factory supply high quality fpc ffc flat cable connector 1.0mm pitch 4-32 pin bottom contact zif smt lcd fpc connector
- 0.06 >=100 pairs
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Supply capacity: | 3,400,000 pieces per month | Operating Voltage: | 50V AC/DC |
| place of origin; place of origin: | Guangdong, China | Packaging Details: | Tube/coil is also available according to your requirements. |
| port: | Shenzhen/Hong Kong | Applicable cables: | FFC FPC cable |
| Insulation resistance: | ≥100mΩ | describe: | FPC Connector 1.0mm Pitch 4-32 Pin Bottom Contacts |
| type: | FFC & FPC Connectors | Pressure resistance: | 250V AC/min |
| payment terms: | letter of credit, wire transfer | Current rating: | 0.5A AC/DC |
| DC: | FPC1025XB-nP | Contact resistance: | ≤20mΩ |
| model: | FPC1025XB-nP | Termination type: | bottom contact |
| Card: | Shawley | Packaging Preview: | |
| Operating temperature: | -25℃~+85℃ | asphalt: | 1.0mm |
| Bale: | Tape and Reel (TR), Tube/Reel |
Product Details
Product parameters
asphalt | 1.0mm | sacred model | FPC1025XB-nP | ||
plastic height | 2.5mm | Rated voltage | 50V AC/DC | ||
Rated current | 0.5A AC/DC | Pressure resistance | 250V AC/min | ||
Contact resistance | ≤20mΩ | Insulation resistance | ≥100MΩ | ||
shape | flat | Required thickness of cable | 0.3mm | ||
material quality | LCP+phosphor bronze | contact details | FPC/FFC cables with gold fingers facing up can make contact with terminal contacts | ||
Scope of application | Smart home/new energy vehicle/medical equipment/instrument/digital communication/beauty instrument/display/scanner/speaker/infrared forehead thermometer/robot/recorder/drone/fingerprint lock | ||||

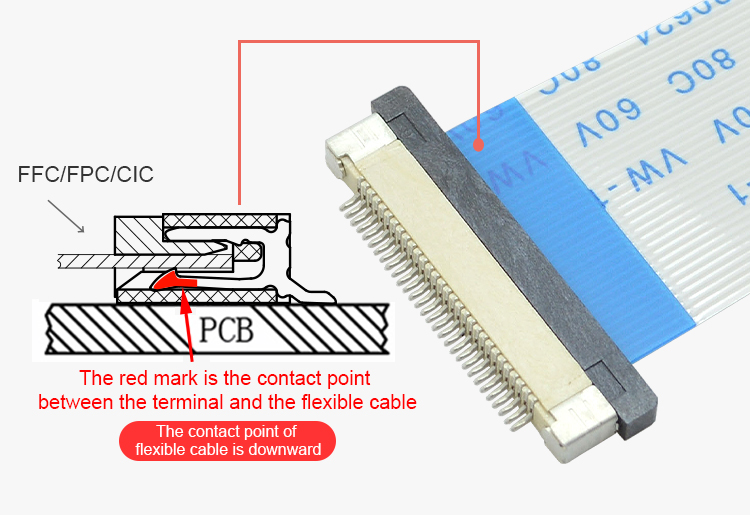

Contact direction of FPC connector and FPC/FFC cable

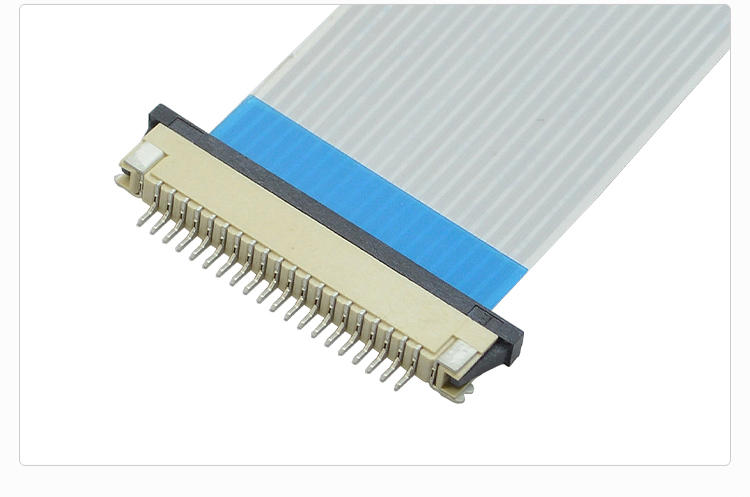

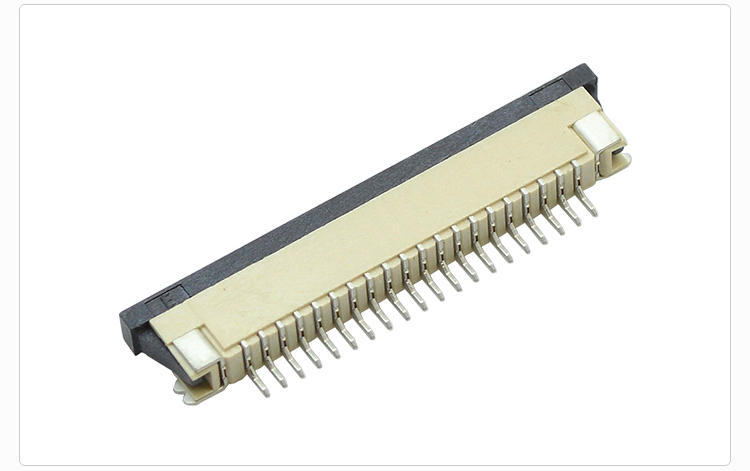

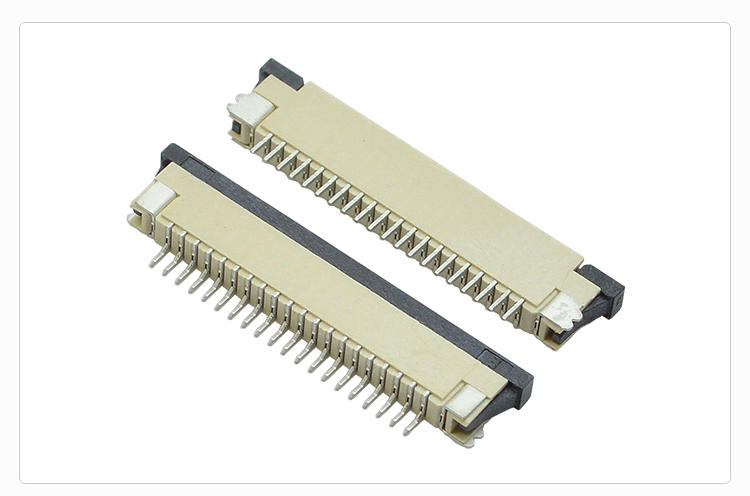

product picture

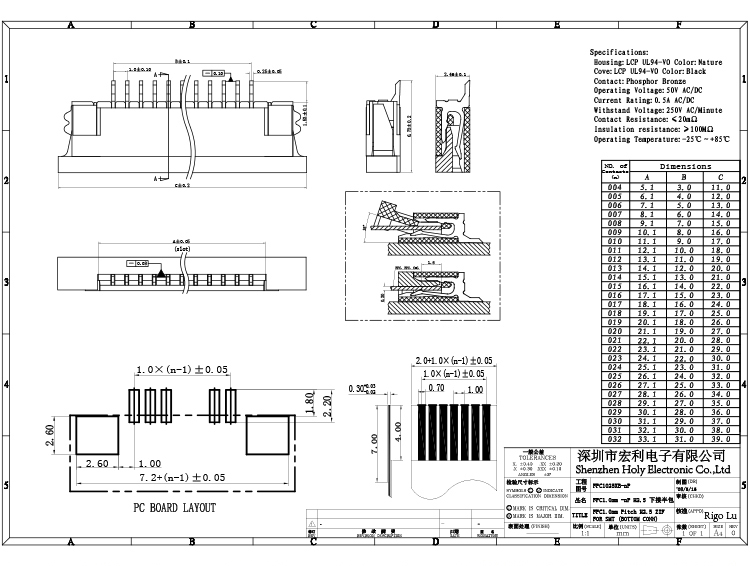

If you need detailed and clear drawings,
Please contact Holy Customer Service
Please contact Holy Customer Service
Soldering reference of connector and PCB board
Temperature: 360°c max
Re-soldering times: 25 times
Time: 25 MAX
Re-soldering times: 25 times

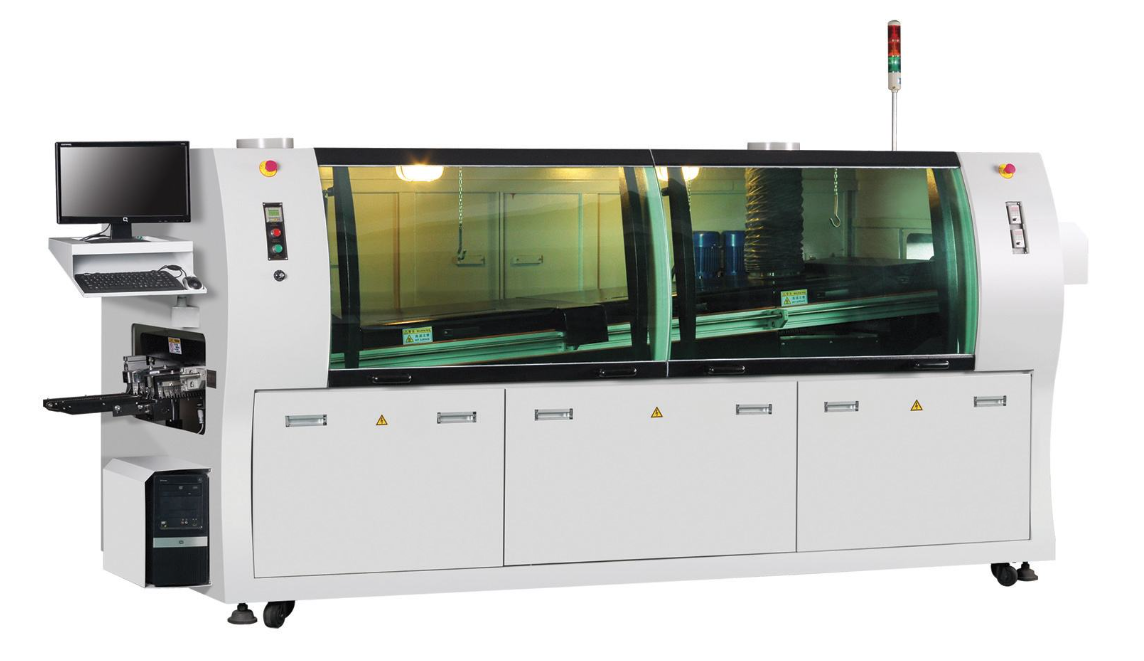

Preheating temperature: 130°c Preheating time: 1.3min Welding temperature: 250°c max Welding time: 2-3s Chain speed (transmission speed): 1300mm/min

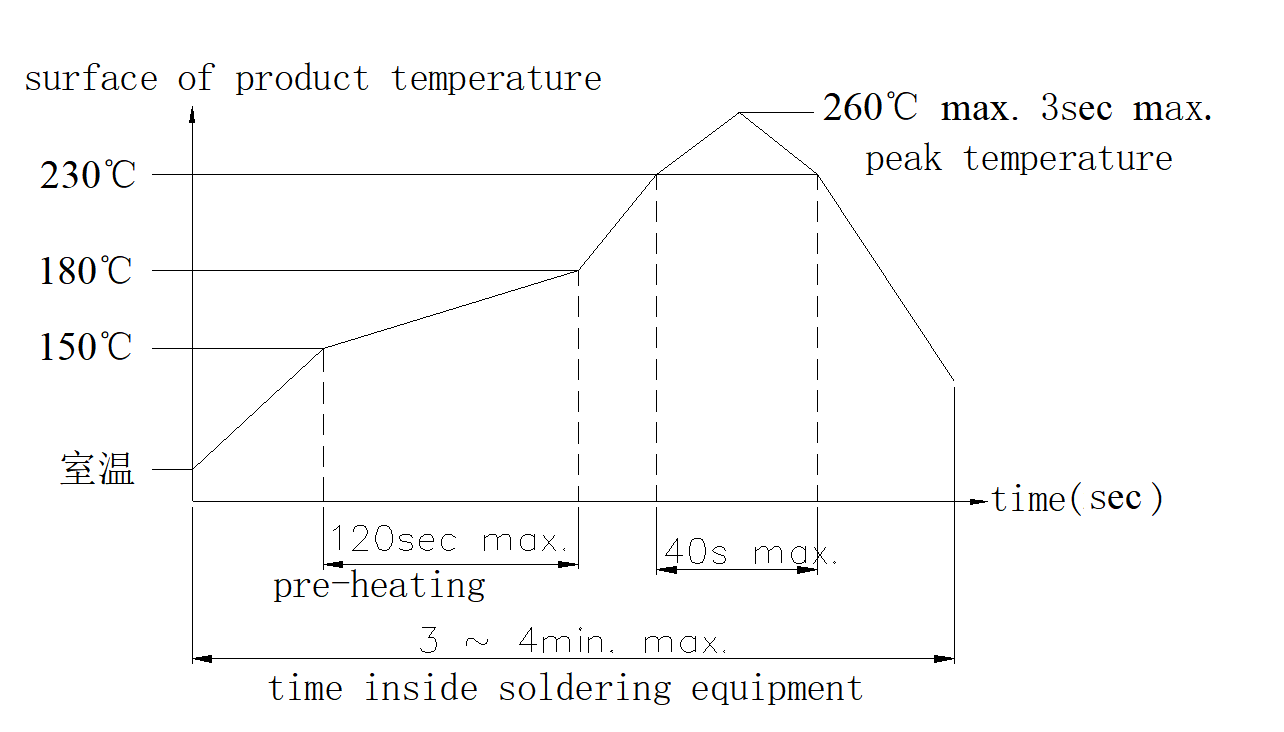

Automatic reflow soldering (for SMT products, please refer to the left figure for conditional soldering)
free sample
If you need samples, please contact us, we will have someone to serve you immediately,Contact Saint today!Contact Saint today!
