FH34SRJ-20S-0.5SH(50) original FFC FPC connector CONN FPC/FFC 20POS 0.5MM pitch SMD R/A electronic components spot
- 0.14 500 - 999 pieces
- 0.13 1000 - 4999 pieces
- 0.12 5000 - 9999 pieces
- 0.11 >=10000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| describe: | FFC & FPC Connector FH34 Series | termination: | welding |
| type: | FFC & FPC Connectors | port: | Shenzhen |
| manufacturer: | Hirose Electric | FFC, FCB thickness: | 0.30 mm |
| Installation type: | Surface Mount, Right Angle | asphalt: | 0.020 in (0.50 mm) |
| Origin: | Japan | Connector type: | contacts, top and bottom |
| pack: | Tape and Reel (TR) | model: | FH34SRJ-20S-0.5SH(50) |
| Package: | Standard package: 5,000 | Packaging Details: | Tape and Reel (TR) Standard Pack Quantity: 5,000 |
| series: | FH34 | Flat flexible type: | Flexible cable, soft board |
| brand: | HRS | Number of positions: | 20 |
| payment terms: | L/C, Western Union, T/T, Paypal |
Specification
manufacturer. product number | FH34SRJ-20S-0.5SH(50) |
Product Categories | Connectors, Interconnectors FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies |
delivery time | 1-3 working days |
payment terms | Paypal, Western Union, T/T, L/C |
mode of transport | By UPS, FedEx, DHL express or by sea |
Product Description

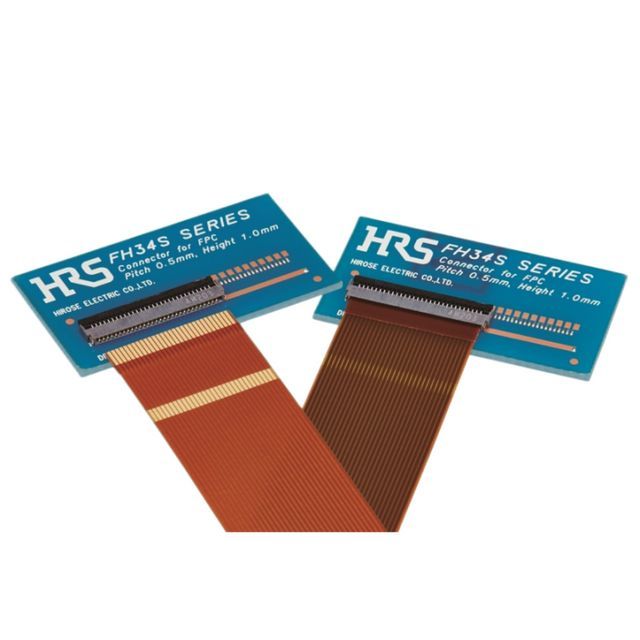

FH34 series features
0.5mm pitch, 1.0mm above board top and top/bottom contact, back flip
Actuator Flexible Printed Circuit and Flexible Flat Cable ZIF Connectors
0.5mm pitch, 1.0mm above board top and top/bottom contact, back flip
Actuator Flexible Printed Circuit and Flexible Flat Cable ZIF Connectors
1. Low profile
2. FH34SRJ: Increase FPC/FFC holding force
3. FH34D : mechanical lock type
4. Unique Back-Flip Rotary Actuator
5. FPC is easy to insert, and the electrical connection is reliable
6. Actuator is delivered open
7. Accept standard FPC thickness
8. Conductive traces on the PCB can be routed under the connector
9. Halogen free*
10. Automatic equipment lamination
