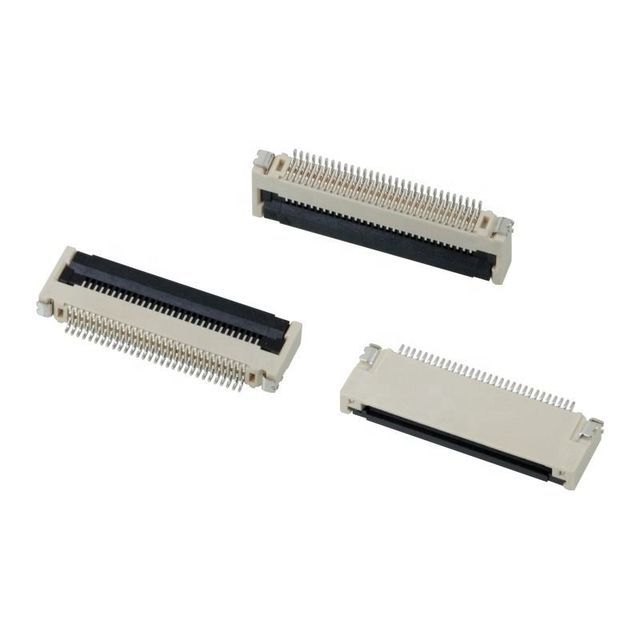

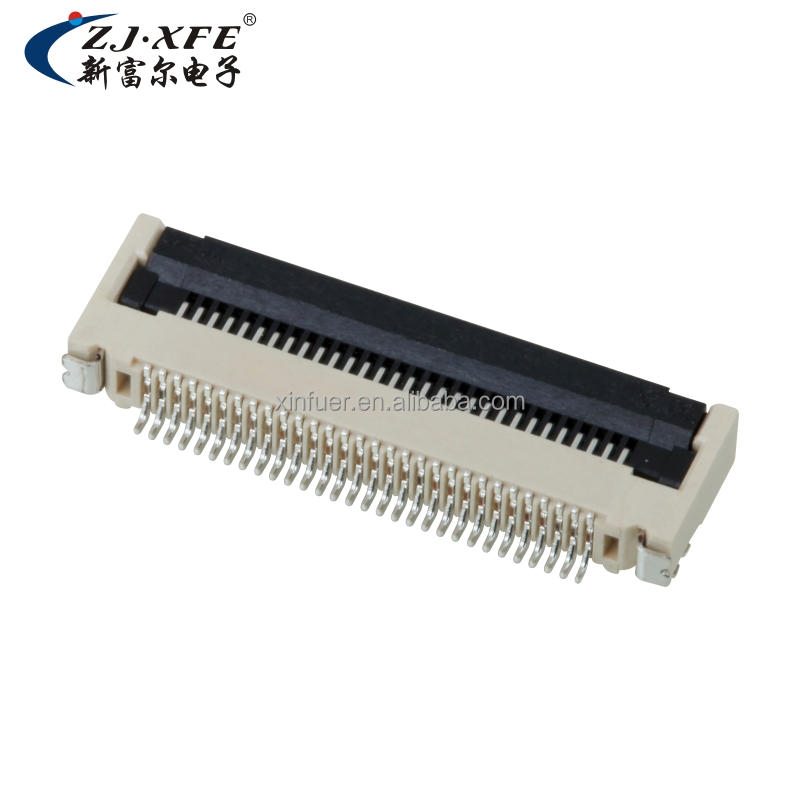

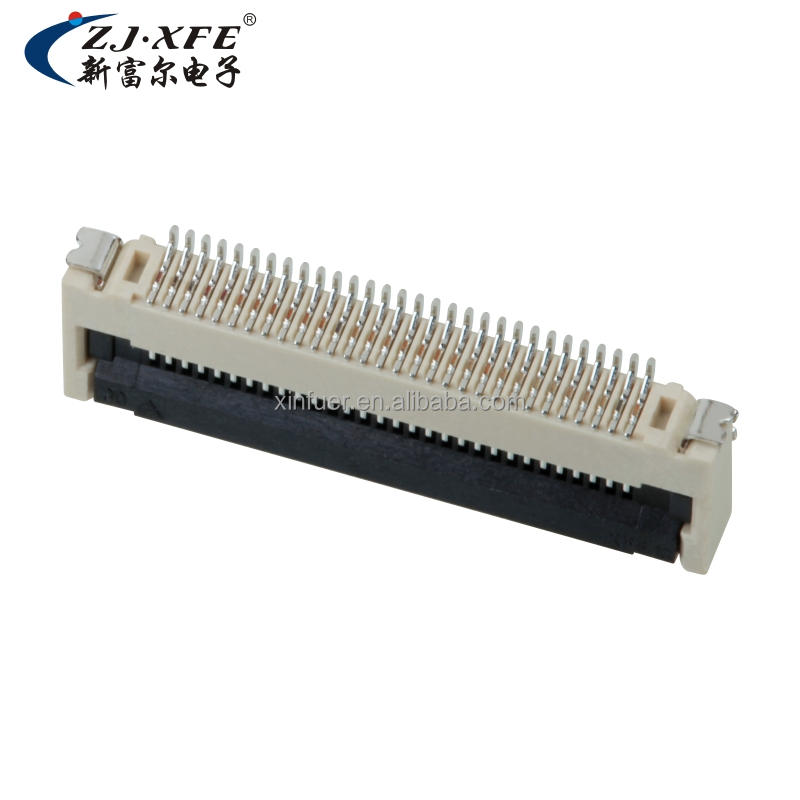

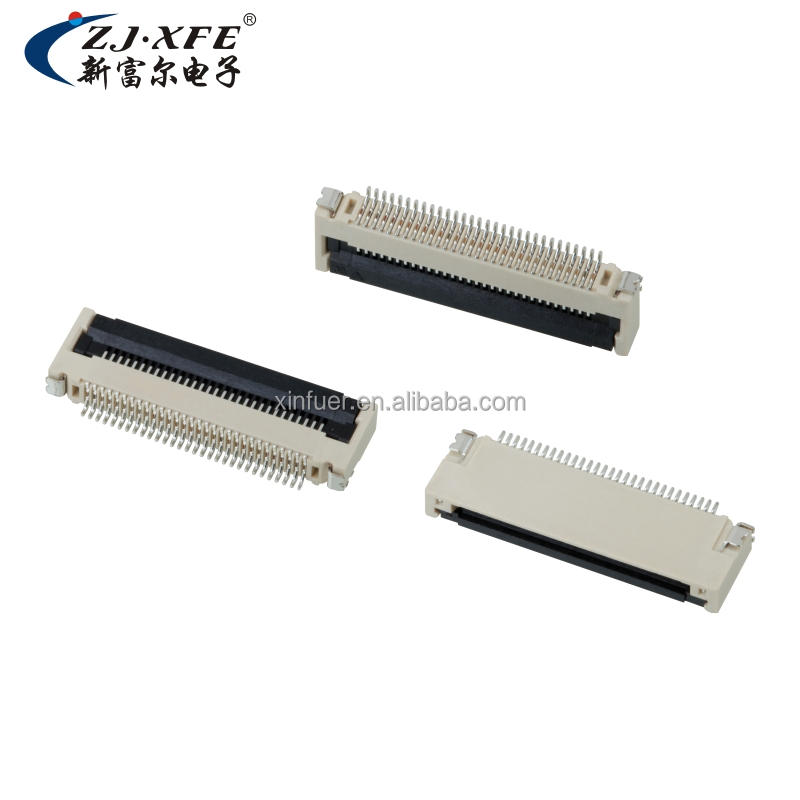

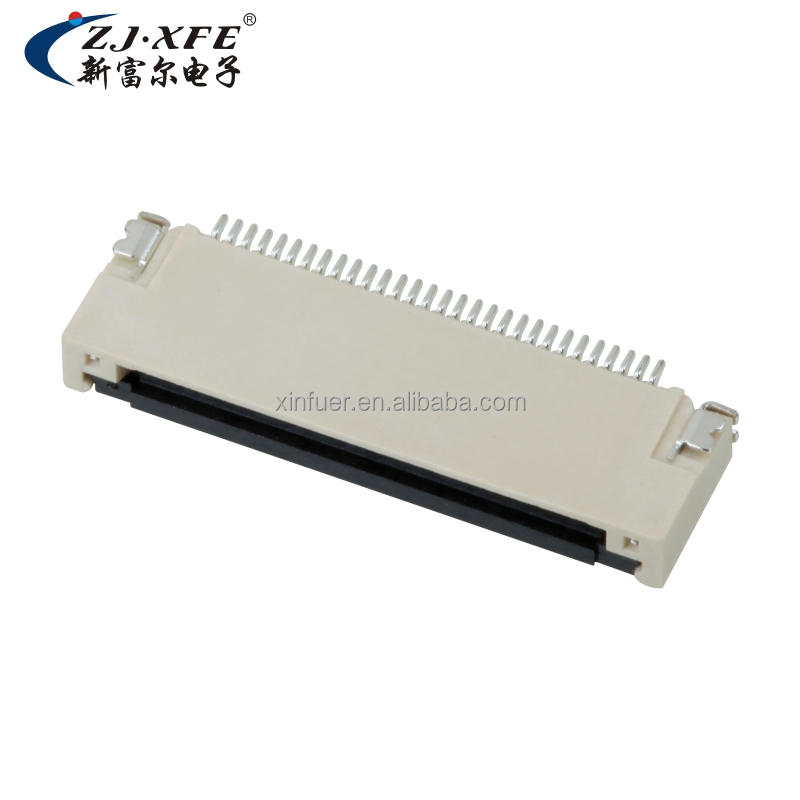

Front type lcd fpc connector key lvds fpc connector for sony
- 0.05 5000 - 99999 pieces
- 0.04 100000 - 999999 pieces
- 0.03 >=1000000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| high: | 2.40mm | plating: | gold plated or tin plated |
| Terminal material: | copper alloy | model: | 0.5-18-nPBX |
| Packaging Details: | Bulk/Tape and Reel | type: | FFC & FPC Connectors |
| Package: | Bulk/Tape and Reel | Plastic material: | Thermoplastic 94V-0 |
| payment terms: | L/C, Western Union, T/T | Supply capacity: | 100,000 pieces per day |
| delivery time: | 14-21 days | style: | zero interference factor |
| Pin: | 4-80 stitches | asphalt: | 0.5 mm |
| install the system: | surface mount | port: | Shenzhen/Guangzhou/Hong Kong |
| product name: | Soft cable 0.5MM | Origin: | Guangdong, China |
| describe: | FFC & FPC Connectors |
Product Description
Specification
Product Series | FPC & FFC Connectors |
series | 0.5-18-nPBX |
product status | positive |
asphalt | 0.50 mm |
actuator type | Actuator |
number of contacts | 4 to 80 |
PCB Mount T Type | surface mount technology |
entry type | side entry |
contour | 2.40mm |
direction | 90° right angle |
current rating | 0.5 amps |
Insulation resistance | ≥500MΩ |
Contact resistance | ≤0.03Ω |
withstand voltage | 500V, AC, DC |
Operating temperature | -25℃~85℃ |
contact material | Contacts: copper alloy |
plating | gold or tin on nickel |
insulator | High temperature thermoplastics (UL94V-0) |
