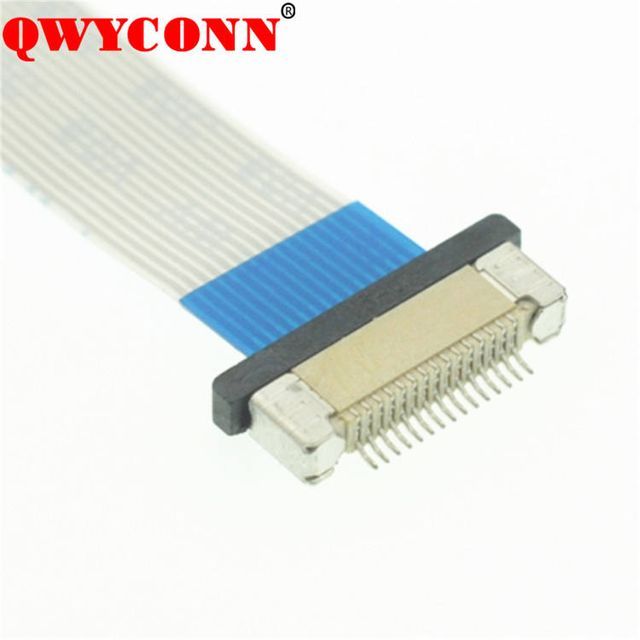

Ffc/Fpc Connector 4-60 Pin 0.3/ 0.5/ 0.8/ 1.0/ 1.25mm Pitch SMT ZIF DIP Top Type Bottom Fpc
- 0.06 100 - 4999 pieces
- 0.05 5000 - 9999 pieces
- 0.04 10000 - 49999 pieces
- 0.03 >=50000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| model: | 1.0-sj-nbw | sample: | free |
| Contact resistance: | ≤20 milliohms | port: | Shenzhen/Hong Kong |
| Rated current: | 0.5A | sit uip (material): | Phosphor bronze, tin nickel |
| Operating temperature: | -20℃～+85℃ | Supply capacity: | 10000000000 pieces per month |
| Package preview: | Rated voltage: | 50V | |
| payment terms: | L/C, Western Union, T/T, MoneyGram, PayPal | Body (Material): | LCP, 94V-0 |
| Packaging Details: | Tube/tape and reel, of course, we can negotiate with each other | Insulation resistance: | 800 milliohms |
| Contact information (material): | Phosphor bronze, tin nickel | type: | FFC & FPC Connectors |
| Pressure resistance: | 500V | brand: | QWYCONN |
| Origin: | Guangdong, China |
FPC connector | Specification | ||||||
asphalt | 0.3mm, 0.5mm, 0.8mm, 1.0mm, 1.25mm, 2.54mm | ||||||
type | Flip-lock, top/bottom contact, vertical/horizontal, etc. | ||||||
pin | 4-60 needles (according to customer needs) | ||||||
current rating | 0.5A | ||||||
Rated voltage | 50V | ||||||
Contact resistance | 40 milliohms max | ||||||
Insulation resistance | 50 megohms minimum | ||||||
Durability (minimum) | 25 cycles | ||||||
housing | LCP UL94V-0, beige | ||||||
cover | PA6T UL94V-0, black | ||||||
touch | Phosphor Bronze, Gold/Nickel | ||||||
Operating temperature | -40℃～+125℃ | ||||||
payment terms | MIL-STD-202 Method 204 | ||||||
Corrosion resistance | T/T, PayPal, Western Union, L/C | ||||||
delivery time | 7-10 days | ||||||
Certificate | ISO9001, ISO14001:2004 Environmental Management System, REACH, SGS, CQC. | ||||||
sample | free sample | ||||||
