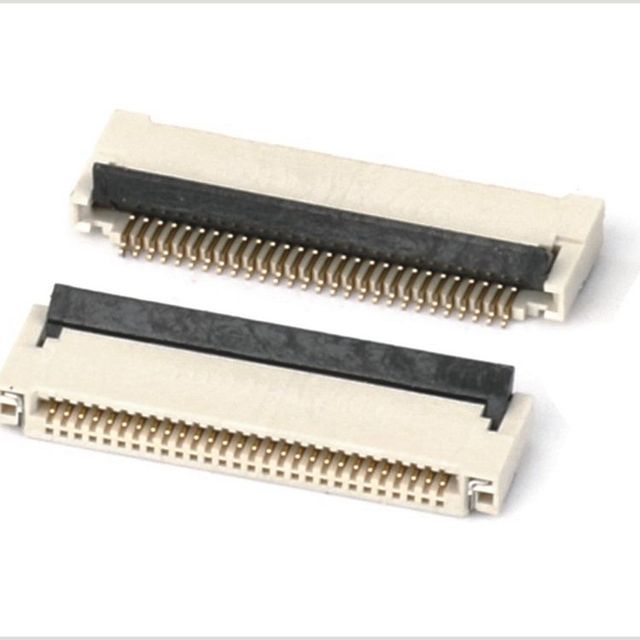

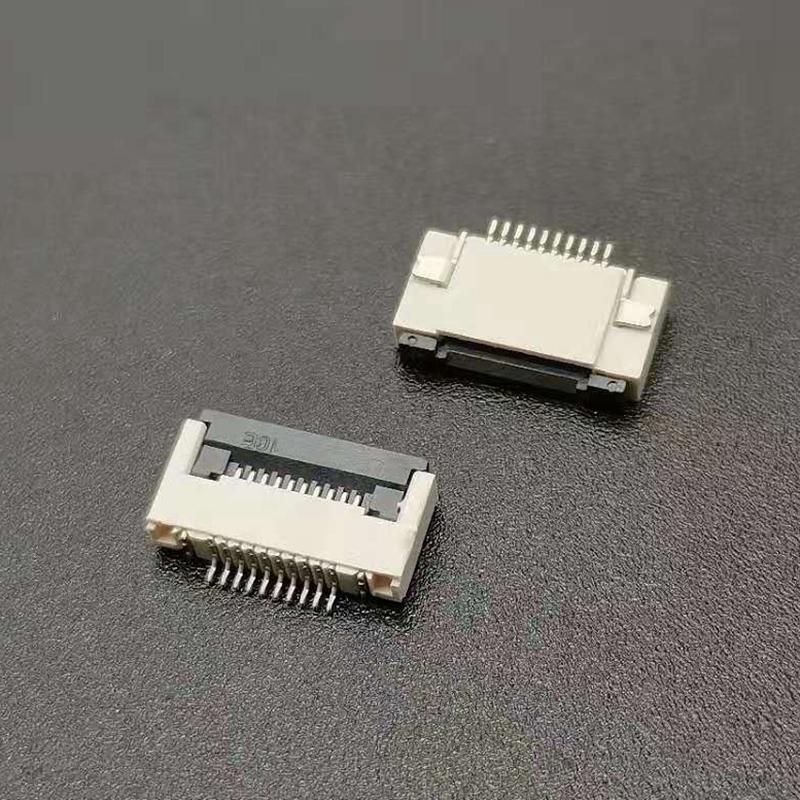

Electronic components FPC/FFC connector 0.3/0.5/0.8/1.0/1.25mm spacing fpc connector 4pin 40pin male connector
- 0.07 1 - 9999 sets
- 0.05 10000 - 99999 sets
- 0.03 >=100000 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| payment terms: | L/C, Western Union, T/T, USD | Current Rating: | 0.4A |
| describe: | FPC/FFC connector | high: | 1.0/1.2/1.5/2.0/2.5 |
| Supply capacity: | 5,000,000 pieces per week | brand: | LXWCONN |
| type: | FFC & FPC Connectors | Plastic material: | Thermoplastic 94V-0 |
| Package: | reel, tube | Insulation resistance: | 500M ohms minimum |
| Contact resistance: | 20M ohms max | terminal: | Phosphor Bronze Tin Plating |
| model: | LF05-XXP20H | Pin: | 4pin~60pin |
| asphalt: | 0.3/0.5/0.8/1.0/2.54 | Origin: | Guangdong, China |
| port: | Shenzhen | Pressure resistance: | 500V min. |
| Rated voltage: | 50V AC |
Specification
thing | value |
model | LF05-XXP20H |
type | FFC & FPC Connectors |
birthplace | Guangdong, China |
brand | LXWCONN |
Package | reel, tube |
describe | FPC/FFC connector |
asphalt | 0.3/0.5/0.8/1.0/2.54 |
pin | 4pin~60pin |
high | 1.0/1.2/1.5/2.0/2.5 |
current rating | 0.4A |
withstand voltage | 500V min. |
Rated voltage | 50V AC |
Contact resistance | 20M ohms max |
Insulation resistance | 500M ohms minimum |
terminal | Phosphor Bronze Tin Plating |
Plastic material | Thermoplastic 94V-0 |
Product Description
Our company mainly produces a series of high-precision connectors such as board-to-board, WTB, and FPC. We have a dedicated R&D team and can design independently. Welcome to consult! ! !
