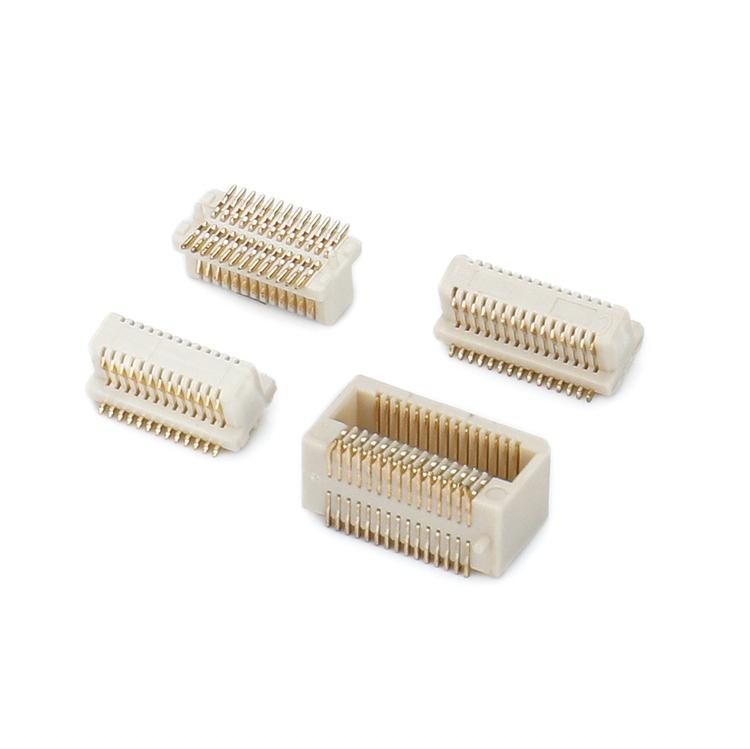

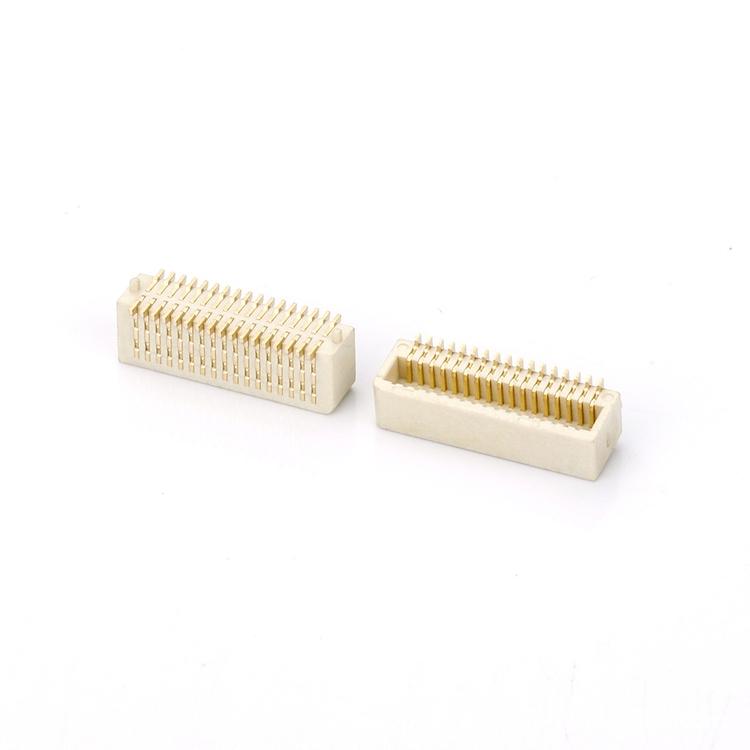

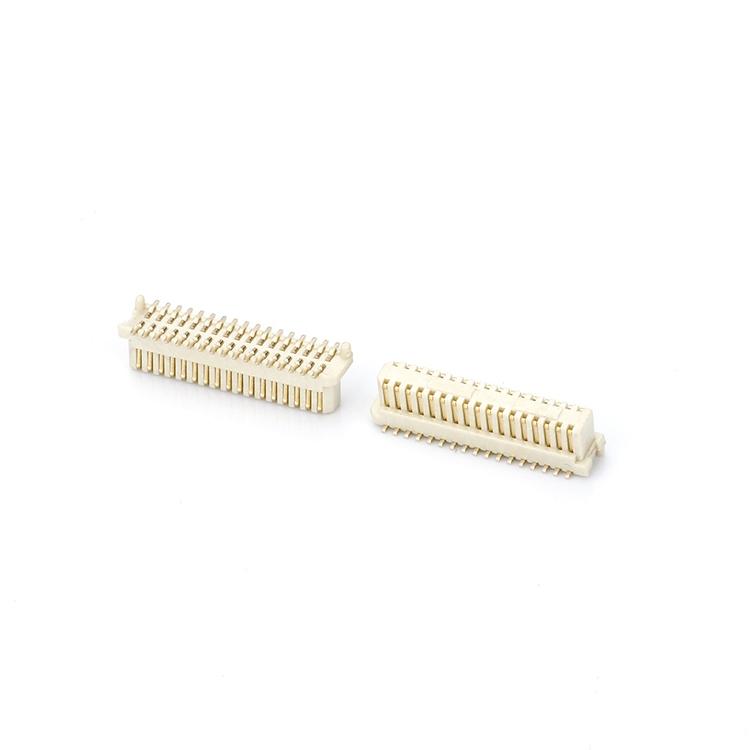

Hot New 0.5mm 0.8mm Pitch 52p Board-to-Board Connector
- 0.035 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Certification: | ISO14001/ISO9001/CE/ROHS/REACH | asphalt: | 0.5mm,0.8mm |
| Pin: | 10-52Pin | Card: | LCD panel |
| delivery time: | 5-15 days, to be negotiated | describe: | not any |
| type: | BTB connector, BTB connector | Supply capacity: | 1,000,000 pieces per day |
| custom made: | Custom new mold design | port: | Shenzhen |
| application: | PCB board | Bale: | other |
| DC: | not any | plating: | gold or tin |
| place of origin; place of origin: | Guangdong, China | payment terms: | wire transfer |
| model: | 0.5mm pitch, 0.8mm pitch 10P-52P | Material: | PA6T LCP PPS PA9T |
Specification
Position | (8-100p) pins available |
plastic height | optional |
plastic width | optional |
asphalt | 2.0mm 1.0mm 0.3mm 0.5mm 0.8mm available |
current rating | 3A |
Insulation resistance | 1000MΩ minimum |
Dielectric withstand voltage | 1000V AC |
Contact resistance | 20mΩ max |
Operating temperature | -30 to +80°C |
Insulation Materials | Polyester UL94V-0 |
Contact material | copper alloy |
plating | gold or tin |
Maximum processing temperature | 260°C |
Insertion force | 80-200 grams |
Withdrawal force | 70-200 grams |
Product Description
