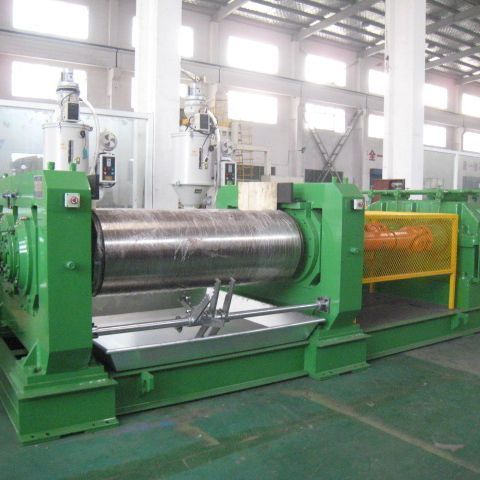

XK-710 Two-roll rubber mixer with electric feeder

Supplier: Zhangjiagang Lanhang Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Lanhang Machinery
Price: $120000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Mixer Rotor Hardness:	70-75 hours	Mixer rubber rotor material:	Chilled cast iron
Packaging Details:	Wooden pallets and film packaging (mixed with milled rubber)	place of origin; place of origin:	Jiangsu, China
brand:	Lan Hang	Rubber mixer color:	green/blue/etc (can be customized)
Warranty:	1 year	type:	Open mill
port:	Shanghai	Dimensions (LWH):	280021002500 mm
Internal mixer reducer material:	hardened gear	Supply capacity:	200 sets per year
Blender Motor:	frequency control	Rubber machine name:	rubber mixer
strength:	132KW	After-sales service provided:	On-site installation, commissioning and training
Blender Material:	cast iron/steel	Certification:	CE, SGS, LAF, CNAS
weight:	65 tons	payment terms:	D/A,D/P,T/T,MoneyGram
Health status:	new	Voltage:	380V

Why choose Lanhang Internal Mixer Rubber Products

1. We were established in 1992 and have more than 20 years of professional experience

2. Fortune Global 500 Supplier

3. There are overseas service centers (Europe, Japan, Dubai, etc.)

4. International CE, SGS, IAF, CNAS certification

5. National high-tech enterprise/product

6. Has a number of national invention patents for rubber and plastic machinery

7. ISO9001:2008 management

Main parameters of our internal mixer rubber

Model	XK400×1000	XK450×1200	XK560×1830	XK610×2030	XK660×2300	XK760×2800
Drum diameter (mm)	400	450	560	610	660	760
Roller length (mm)	1000	1200	1830	2030	2300	2800
Front roller max. Speed (m/min)	18.7	twenty three	28.5	30	30	30
Speed ratio of front roller to rear roller	1:1.17	1:1.17	1:1.17	1:1.09	1:1.09	1:1.09
Batch (kg)	45	70	110	150	210	360
maximum. Roller Spacing(mm)	10	10	15	15	15	15
Roller space adjustment method	Manual or electric (can be customized)
power supply	AC 380V 50HZ 3P (can be customized)
Motor power (Kw)	55	75	132	185	220	260
reducer type	hardened gear
driving style	Cardan shaft
Dimensions (mm)	4200x1680x1700	5000x1880x1780	6050x2150x1800	7070x2190x1785	7290x3610x1790	7540x4170x2050
Weight (tons)	11	13	twenty two	25	44	65

Application of Lanhang brand internal mixer rubber

For mixing rubber, silicone, abrasive and PVC compounds. Especially in rubber processing mills are built for different mixing processes.

Lanhang Machinery Internal Mixer Rubber Features

1. Drum: Made of chilled casting alloy, with uniform thickness and good cooling effect.

2. Frame and cover plate: welded by cast steel or steel plate, with high safety strength and high mechanical precision.

3. Roll gap adjustment device: Optional: manual or electric adjustment and gap display.

4. Reducer: fully enclosed, hardened gear, forced lubrication, high safety factor and low noise.

The main components of Lanhang's internal mixer rubber

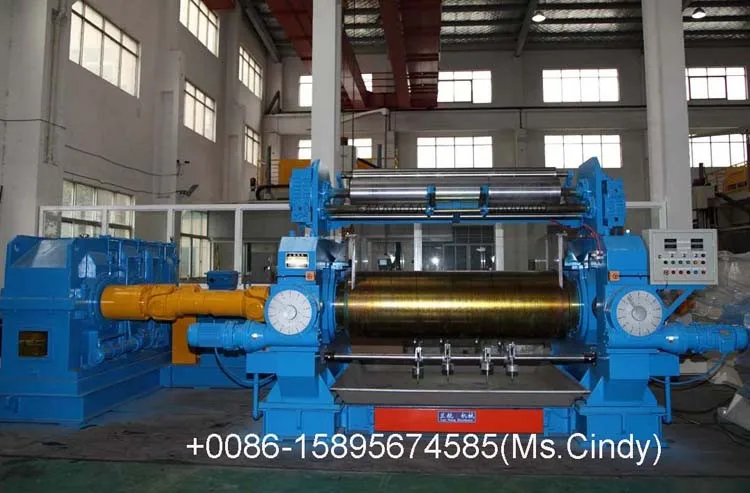

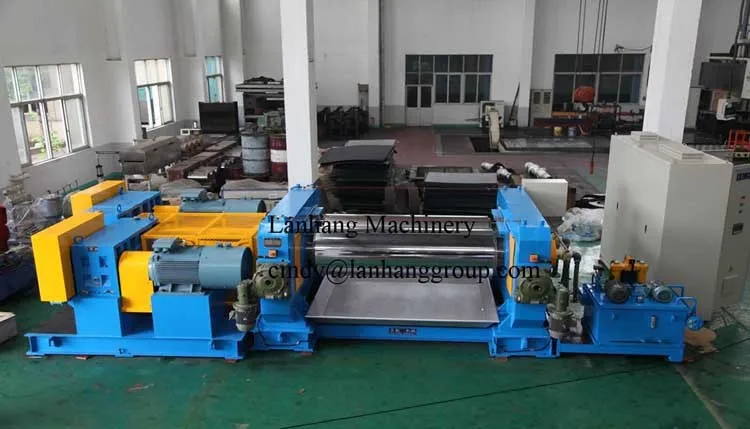

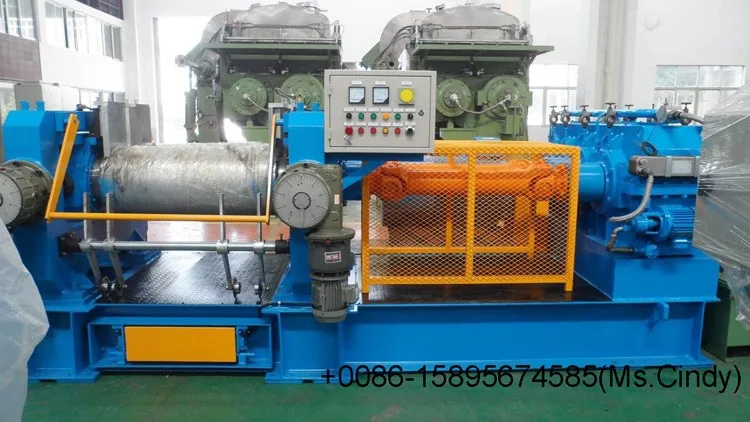

Construction of two-roll mill
The mill is usually assembled on a steel base plate, which is again set on rubber pads or adjustable sound-insulating metal to isolate the noise level of the building while avoiding tension on the mill structure. Accurately leveling the mill is very important for smoothness. Running is important.

roller bearing
Two rigid struts with removable tops carry the rollers, which are placed in friction/bushing bearings or high quality anti-friction roller bearings. Roller bearings are now almost standard as they save 20 – 30 % of electricity. Lubrication systems are no longer required.

Roll settings
Adjustment of the front roller used to be manual (manually via a ratchet) or later electrically powered by a worm gear.

Today, hydraulic pistons can adjust the rolls and also protect the rolls from high pressures that can build up between the rolls (roll safety). In case of emergency (required by European safety standard CE), they also open the roll gap as soon as the safety lever is pushed forward or backward.

roller
The mixer has 2 horizontal rolls arranged back to back. They are made of ground chilled cast iron and have a surface hardness range of 475 – 520 HV (Vickers) to 520 – 580 HV (or 68 – 72 HRC).

Packaging and Shipping

Wooden pallets and film packaging (mixer rubber)

our service

rubber mixer

1. One year warranty

2. Overseas mechanical service engineer (installation, commissioning, commissioning, maintenance)

3. There are overseas service centers (Europe, Japan, Dubai, etc.)

4. Lifetime technical support
