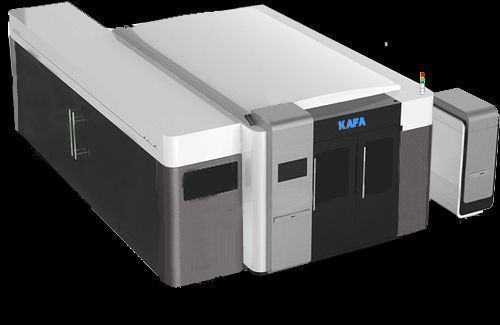

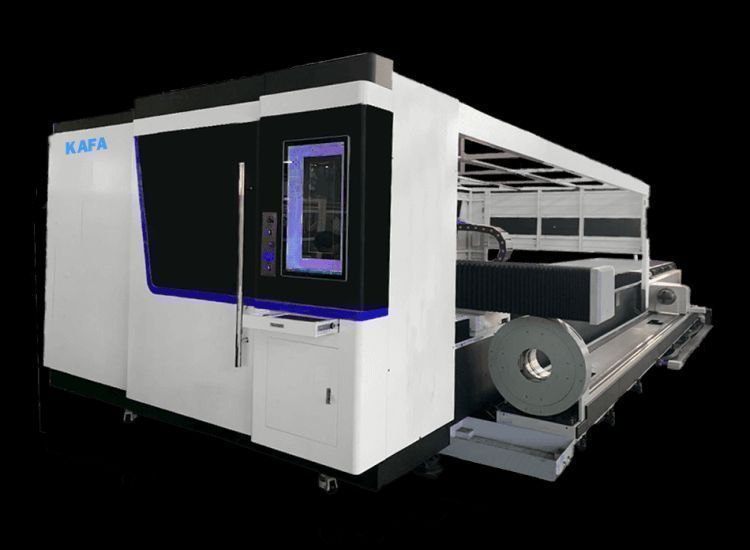

Metal sheet & tube laser cutting machines GEC-T Series

Supplier: Shanghai KAFA Technology Co., Ltd.
Region: Shanghai, China
Contact: Mr mr. meng
Price: $35000.00 / >=5 sets
Min. Order: 5 sets

Click here to contact

Product details

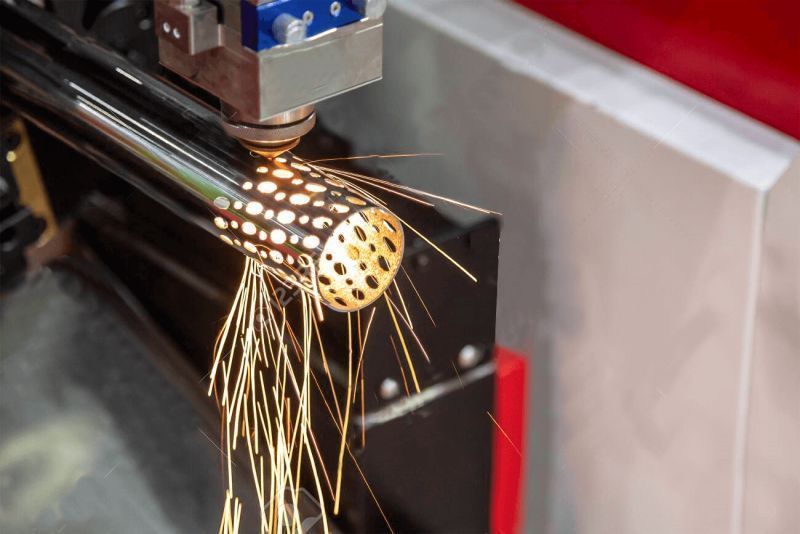

Kafa GEC-T Serise is a fiber laser cutting machine for Aluminum, Carbon Steel Sheet, Stainless Steel Sheet laser cutter with cheapest price on dynamic functionality. Specialized fast speed cutting of a variety of metal plates, pipes(add pipe cutting device), mainly used in carbon steel, stainless steel, galvanized sheet, steel, rare metal various alloy plate and other materials.

Laser Cutter Equipment Main Configuration:

Name	Origin and Manufacturer name
Special laser cutting head (auto focus)	RAYTOOLS
Cutting machine bed (steel plate welding)	Self-produced
Beam	Integrated Cast Aluminum
Guide	Taiwan HIWIN
Reducer	Japanese Ximpo
Gear, rack	Taiwan K.H/Germany Herion
Servo motor and driver	Japan Panasonic/YASKWA
Control Cabinet	Self-Produced
Low-voltage electrical appliances	Chint/France Schneider
Origin, limit switch	Swiss Carole
Cable	Flexible Shielded cable
Transformer	Shenzhen Xinbei Ocean
IPC	Taiwan Advantech
CNC system (including control software, height controller)	Cyp Cut
Oil Road	Electric oil pump
Gas circuit (proportional valve)	NNT
Chiller	Han Li

Main Technical Parameters of Fiber Laser Cutting Machine:

Device Model	KAFA GEC-T Series
Laser Cutter Type	Fiber-optic laser
CNC laser Cutter Wavelength	1064nm
Rated output power	3000W
Beam quality	<0.373mrad
X axis travel	3020mm
Y axis travel	1520mm
Z axis travel	100mm
Effective Cutting Range	3000*1500m
Workbench axial positioning accuracy	<+0.05mm/m
Worktable repeat positioning accuracy	<+0.02mm/m
Maximum empty speed	60m/min
Workbench Maximum load	200KG
Phase	3
Power supply rated voltage	380
Frequency	50Hz
Total power protection level	IP54

Dual Fast Exchange Tables

Fast exchange of two tables makes it more efficient. Chain-drive mechanical system delivers improved rigidity and higher accuracy, saving feeding time.

Tenon-And-Mortise Type Plate Welding Structure Bed

Chinese traditional Tenon-and-mortise structure is used to achieve stronger bearing capacity. Long-standing operation stability is ensured by solder joint fixing and structural bearing.
Special welded structure improves shock absorption effect, minimizing deviation due to shock and ensuring cutting accuracy.

Automatic Obstacle Detection And Avoidance

Intelligent Anti-Collision

360 Degree radar system detects obstacle in advance. To avoid collision, high-speed motion of Z-axis is activated

Efficient, Economical

Minimizes the damage rate of laser head, reducing maintenance cost and depreciation of the machine. Avoid production halt due to collisions, ensuring uninterrupted production.

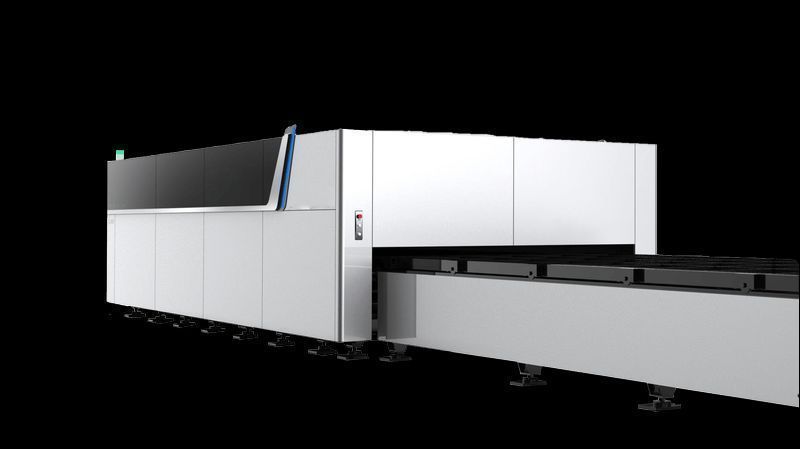

Surround Protection

Complete and surround protection

Isolation of Laser radiation pollution

Automatic soot collection

Ensure the operation area is clean

Intelligent-Automatic focusing technology of laser head

Automatic focusing technology sets up perforated focal length and cutting focal length respectively. The cutting and finishing is more accurate.Multiple focal lengths can be detected. Focal position is intelligently adjusted depending on thickness of different sheets.

Stretched Aluminum Beam

To enhance rigidity, aviation-level material is used. Reduces beam deformation during high-speed operation. Improves high-speed directional sensitivity and processing efficiency.

Kafa Customer Support

Customer-care platform for Laser CNC machines

Apply for after-sale service on Kafa Web

Digital management of equipment

Stand-by Online support

Problem solving and troubleshooting

21.5-Inch Touch Screen

21.5-inch touch screen display with user-friendly user interface

Automatic Lubrication Function

Automatic Lubrication Function
Automatic lubrication guarantee the normal and high-speed operation, greatly improving the cutting accuracy. The Abnormal Fluid Level Alarm effectively enhances the service life of the transmission system

Kafa Pro Operating System

Kafa’s independent R&D OS understand graphics layout. Optimal logic programming and software interaction is used to improve utilization of sheet metal and minimize wastage material

Low Gas Pressure Alarm Function

Real-time gas pressure sensing system. Abnormal pressure does not hamper cutting quality and precision. Notifies operator to replace gas on time

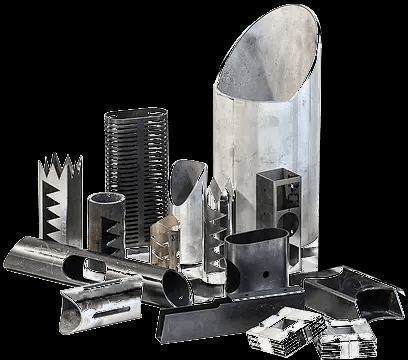

Working Sample
