Wood Working Lathe KAFA SH-Series,Dh-Series,TH-Series,AF-Series

Supplier: Shanghai KAFA Technology Co., Ltd.
Region: Shanghai, China
Contact: Mr mr. meng
Price:
Min. Order: 1 set

Click here to contact

Product details

Technical Parameters:

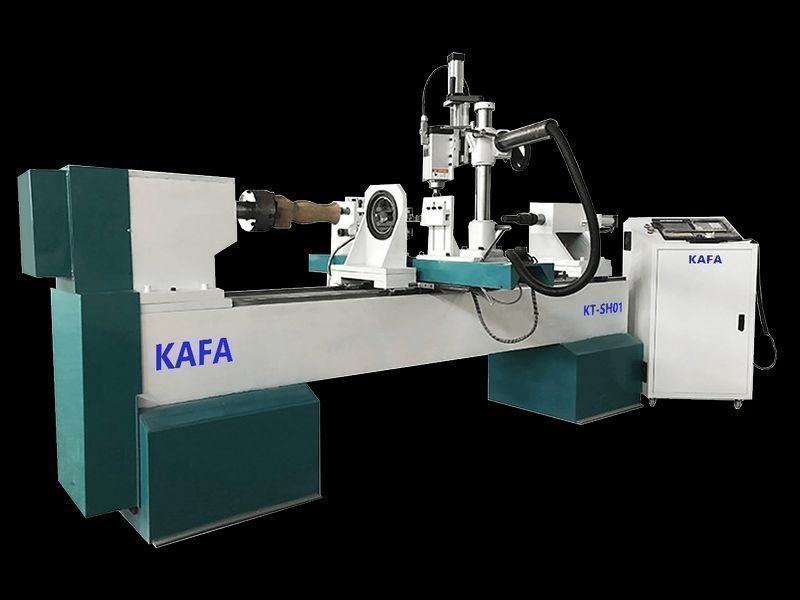

Model: KAFA SH-Series

Max Turning Length	100mm-2500mm
Max Turning Diameter	20mm-300mm
Spindle	3.5K air cooling spindle with motor
Number of axis	Single axis, single blade
Maximum feed rate	2000cm/min
Spindle Speed	0-3000r/min
Minimum setting unit	0.1mm
Driving System	Stepper motor
power supply	AC380v/50Hz or AC220v/60Hz
Whole Power Consumption	5.5kw
Overall Dimension	3300mm1500mm1300mm
Weight	1800 kg

Technical Parameters:

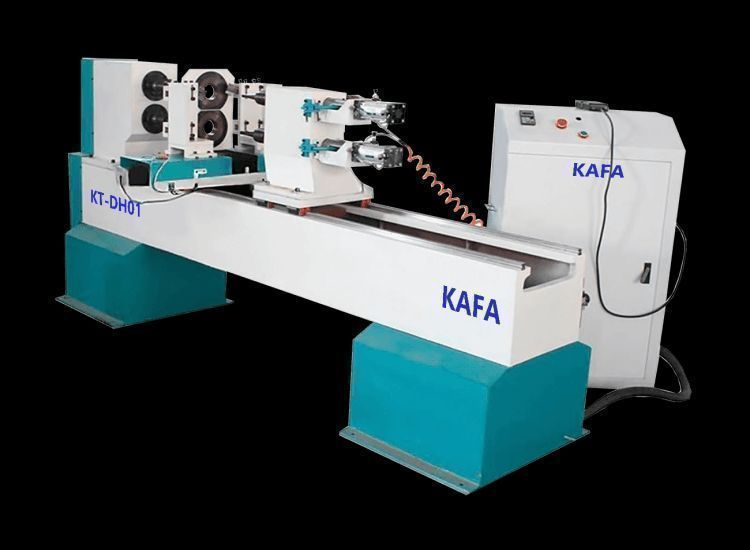

Model: KAFA DH-Series

Max Turning Length	100mm-1500mm
Max Turning Diameter	20mm-160mm
Number of axis	Double axis
Maximum feed rate	2000mm/min
Minimum setting unit	0.1mm
Driving System	Stepper motor
power supply	AC380v/50Hz or AC220v/60Hz
Overall Dimension	3300mm1500mm1300mm
Weight	1600 kg

Technical Parameters:

Model: KAFA TH-Series

Max Turning Length	100mm-1500mm
Max Turning Diameter	120mm
Spindle	3.5K air cooling spindle with motor
Number of axis	Triple axis
Maximum feed rate	2000mm/min
Spindle Speed	0-3000r/min
Minimum setting unit	0.1mm
Driving System	Stepper motor
power supply	AC380v/50Hz
Whole Power Consumption	5.5kW
Working Area	1500mm*300mm
Overall Dimension	3300mm1500mm1300mm
Weight	1800 kg

Technical Parameters:

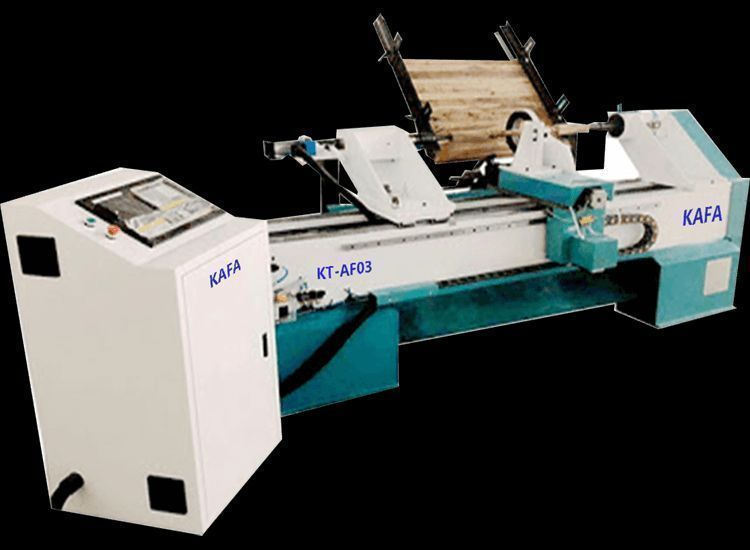

Model: KAFA AF-Series

Max Turning Length	100mm-2500mm
Max Turning Diameter	20mm-300mm
Spindle	3.5K air cooling spindle with motor
Number of axis	Single axis, single blade
Maximum feed rate	2000cm/min
Spindle Speed	0-3000r/min
Minimum setting unit	0.1mm
Driving System	Stepper motor
power supply	AC380v/50Hz or AC220v/60Hz
Whole Power Consumption	5.5kw
Overall Dimension	3300mm1500mm1300mm
Weight	1800 kg

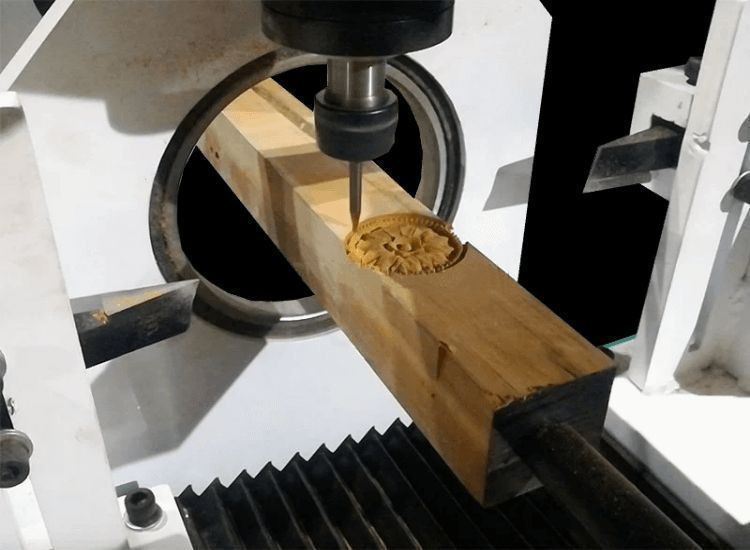

4th axis spindle for carving

Sophisticated Control Panel

Control Panel

Press-Button controls for different operations

LCD monitor displays tool path according to the operation

Hand-Wheel/DSP Controller

Special Hand-Wheel to control the axis

DSP controller is also available

CAD software

AutoCAD is best supported by the operating system .dxf file For 2D tool path (Basic lathe operation) and .NC file: For 3D tool path (4th axis Engraving)

Heavy-duty Cast Iron Bed

1. - →Cast iron bed for rigidity and stability
2. 2. 1. →Vibration and noise cancellation
    2. 1. →High quality Servo/Motor driver for each axis
      2. →Frequency can be directly changed through VFD
      3. →Turning speed can be controlled or adjusted while operation is ongoing
