How to buy the right CNC woodworking lathe?

Product details
Video external inspection:ifCore Components Warranty:1 year
payment terms:L/C,Western Union,T/T,MoneyGramLocal service location:United Arab Emirates
Maximum turning diameter:160-300mmweight:1600kg
Main selling point:high rigidityShowroom location:United Arab Emirates
Supply capacity:300 sets per monthWarranty:1 year
After-sales service provided:Online supportWeight (kg):1500
maximum. Workpiece length (mm):1500 mmVoltage:AC380V/50Hz
Power (kW):3.5 - 5.5Core components:PLC, engine, motor
application:wooden round moldFunction:Wood Turning + Grooving + Cylindrical Engraving
maximum. Swing Diameter (mm):300 mmMaximum turning length:1500mm
Dimensions (L*W*H):300*100*150cmControl System:DSP or Adtech
Packaging Preview:Certification:Chief Executive
Key words:CNC Lathes for Wood Manufacturingmotor:servo motor
Applicable industries:Building materials stores, mechanical repair shops, manufacturing plants, household, retail, construction works, advertising agenciesPower (W):4kW
Mechanical test report:ifMarketing Type:New Products 2020
Health status:newbrand:Tianjiao
After Warranty Service:Video technical support, online supportplace of origin; place of origin:Shandong China
Packaging Details:Fumigation wooden boxmaximum. Turning length (mm):1500 mm
color:white and greenport:Qingdao

CNC woodworking lathe is suitable for all kinds of cylindrical workpieces, bowl tips, tubular tips and wood crafts, all kinds of stair columns, stair railings, stair columns, dining table legs, coffee table legs, sofa table legs, bar legs, Roman columns, general columns , washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children's bed column, chair arm column, chair stretcher, sofa and feet, bed rails, lamp posts, baseball bats, etc.

1. If your workpiece diameter is between 160-300mm, just turn it into a cylinder. Then you can select this model:

TJ-1530 Single axis double edge CNC woodworking lathe.

The maximum processing diameter of this machine is 300mm, and the maximum processing length is 1500mm. Mainly used for turning, it can process one material at a time.

sample:

2. If your workpiece diameter is less than 160mm and you want to improve production efficiency, then you can choose this model:

TJ-1516-2 Double-axis four-blade CNC lathe.

The maximum processing diameter is 160mm, and the maximum processing length is 1500mm. It is also mainly used for cornering. But two pieces of material can be processed at one time.

3. The above two models can only be turned, if you want to groove, twist or engrave, then we also have the following two models for you to choose:



TJ-1530-S CNC woodworking lathe with spindle.

This is our TJ-1530-S CNC woodworking lathe, it can install 3-axis spindle and 4-axis spindle. A three-axis spindle can only engrave cylindrical materials, while a four-axis spindle can engrave square columns, just like a CNC router spindle.

Sample CNC wood lathe with 3-axis spindle:

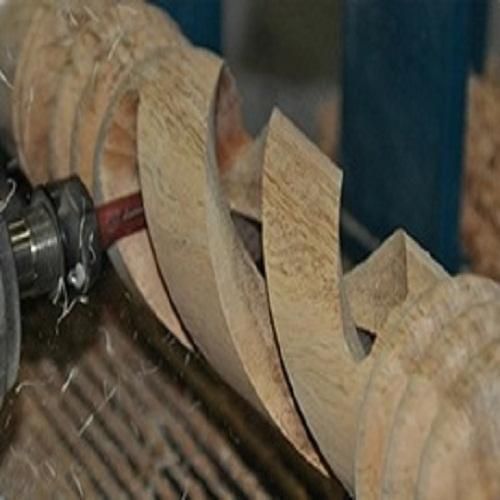

Sample CNC wood lathe with 4-axis spindle:


company information



                                                                     NC Wood profiling lathe

Product Description

1.ApplicationsNC Wood profiling lathe

Wooden lathes are used for wood cutting. It can realize the turning of any rotor with the vertical axis and the horizontal axis, and can realize milling and engraving, ensuring the rotation stability of the processed product and high cutting efficiency. It is suitable for stair columns, curved circles, vases, table and chair legs, European furniture Roman columns, wooden hangers, washbasins, etc.; complex shapes such as cylinders, cones, curved, spherical and other complex shapes of rotating wood products or wooden semi-finished products.

2. CNC W machine pictureood profiling lathe

3. Features of CNC Wood profiling lathe

1. The maximum turning diameter is 300mm, and the length is 1500mm, 2000mm or 2500mm.

2. Integral cast iron bed, after high temperature annealing and vibration stress relief, stable and never deformed.

3. Adopt Taiwan TBI ball screw and Taiwan Shangyin square guide rail, with high precision and long service life.

4. High torque stepper motor and Yako driver ensure the wood turns quickly.

5. There are 2 tools on both sides of the machine tool (rough turning tool and fine turning tool work synchronously with layered processing), which improves work efficiency and workpiece surface quality. Simple operation, support CAD software, transfer .dxf files directly to the machine via USB.

4. CNC W parametersood profiling lathe

Model

TJ1530

Maximum turning length

1500mm

Maximum turning diameter

300mm

Number of axes and blades

Single shaft, 2 blades

maximum feed rate

200 cm/min

Minimum setting unit

0.01cm

Spindle motor power

4kW

power supply

AC380v/50hZ

Dimensions

300*100*150cm

weight

1600kg

5. Main parts of the machineNC Wood profiling lathe
6. SampleNC Wood profiling lathe

Packaging and Shipping





The whole machine will be completely wrapped with plastic wrap to avoid rusting during transportation, and then fixed on a sturdy iron steel pipe pallet with a wooden box for sea shipping.



inner packaging

· Cover the entire lathe with professional stretch film.

· Stretch film wrapping with foam protection at every corner.

Outer packaging

· Sandard exports wooden crates and crates.

· Save container loading space as much as possible.

transportation

· We support sea, air, ground and express.



Packaging Details

Outer packing: Standard sea export plywood box Inner packing: Stretch film and plastic film for humidity

PS: We can also pack according to your requirements.

our service

ensure:
The whole machine is 12 months. Under normal use and maintenance, within 12 months, if there is a problem

With the machine, you will get spare parts for free. Within 12 months, you will get spare parts at cost.

You also get lifetime technical support and service.

technical support:
1. 24/7 phone, email or Skype technical support.
2, friendly English version of the manual and operation DVD.
3. Engineers can repair machinery overseas.

After-sale service:
Normal machines are properly adjusted before shipping. You will be able to use the machine as soon as you receive it.

In addition, you will be able to get free training advice on our machines at our factory. You will also get free advice and consultation, technical support and services by email/fax/telephone etc.
