UV exposure device LED Products from Suzhou Tianjiu Printing Machine Co., Ltd.

Product Details

Main selling point:	energy saving	gross weight:	35KG
Video external inspection:	if	Package dimensions:	840620240mm
brand:	TJ	Supply capacity:	500 units per month
payment terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram	Core Components Warranty:	1 year
product name:	UV exposure unit	Health status:	new
Marketing Type:	New Products 2020	Local service location:	U.S.
Maximum exposure area:	500mm*600mm(20"X24")	Packaging Preview:
Auto grade:	semi-automatic	Mechanical test report:	if
time control:	0-999s	Warranty:	1 year
port:	Shanghai, Qingdao, Guangzhou, etc.	Voltage:	110V~220V, 110V or 220V
Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies	After Warranty Service:	Video technical support, online support, spare parts, on-site maintenance and repair services
Dimensions (LWH):	840620240mm	After-sales service provided:	Engineers can repair machinery overseas
Certification:	Chief Executive	place of origin; place of origin:	Jiangsu, China
Lamp power:	80W	Packaging Details:	UV irradiation unit packaging: one carton
type:	Plate exposure	Core components:	PLC, motor
Showroom location:	U.S.	weight:	35KG

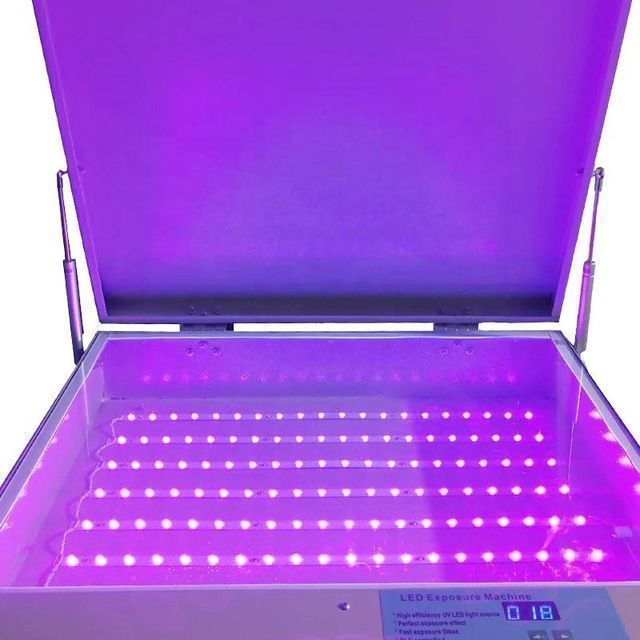

UV exposure device LED

Features

LED exposure unit for backing plate, screen plate,
Hot embossing plate, resin plate. When you put the film on the plate, enter the UV LED exposure machine, start it, an invisible image of the emulsion on the plate will appear. This is an important process for all platemaking techniques.

High-efficiency UV LED light source is adopted, which saves 50% of electricity compared with ordinary models.
PLC control panel, the operation is very convenient.
Automatic memory function, work as it is next time
LED light for perfect exposure.
Fast exposure time, about 40-70 seconds.
Energy saving and environmental protection.
The exposure quality is stable and the lifespan is longer.
The steel jacket is durable and beautiful.
External power plug, safe and convenient.
Easy to transport, LED lights are not fragile when delivered.

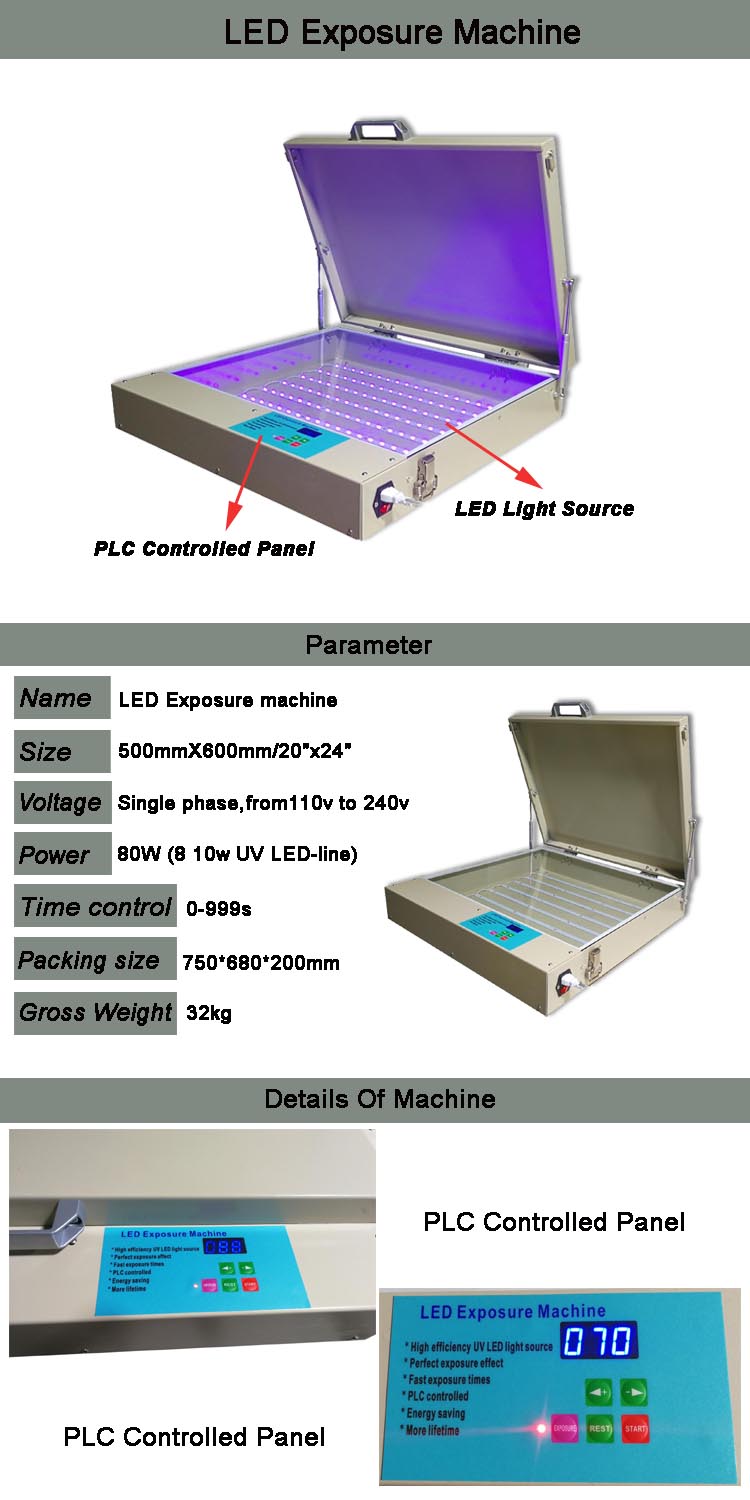

Product parameters

Maximum exposure area (mm): 520mmx610mm
Voltage (single phase): 220V or 110V
Time control: 0-999s
Lamp power: 80W (8 10w UV LED-line)
Packing size: one box (750*680*200mm)
Gross weight: 35KG

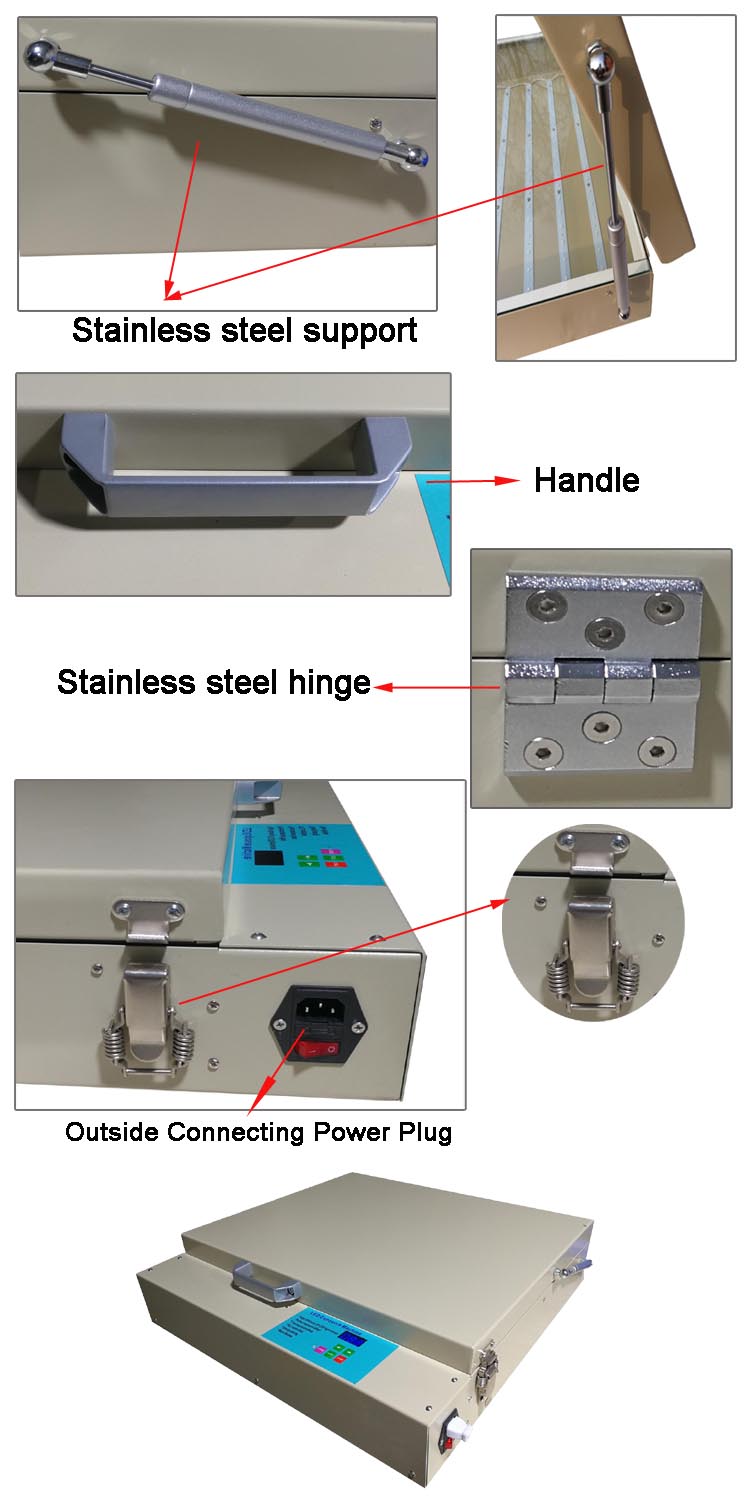

Picture details

our service

For all our machines, we offer a one-year warranty.
Lifetime online technical support, free accessories for problems within one year, excluding shipping.
Any warranty shipping costs to us are the responsibility of the buyer.
Any shipping to buyers is our responsibility.
