New Kodak ctp machine price in 2022

General Specifications

technology

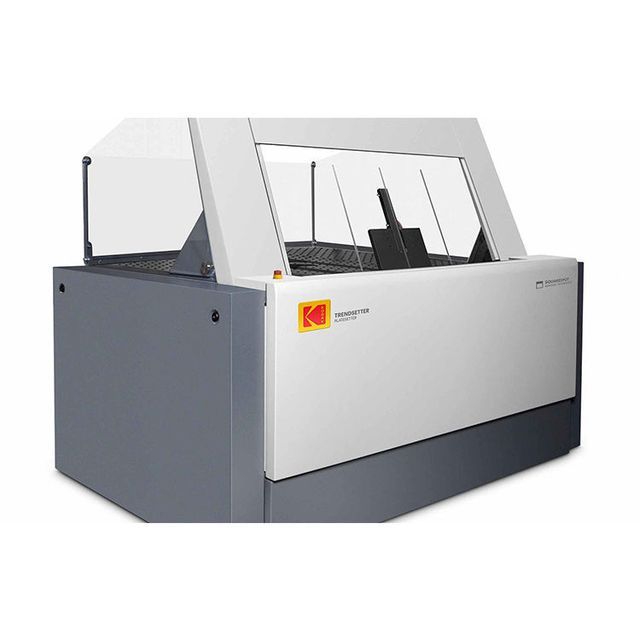

830 nm Thermal Imaging Platesetter with KODAK SQUARESPOT Imaging Technology, External Drum

loading/unloading system

Standard: semi-automatic loading and unloading
Automatic plate unloading (optional): semi-automatic plate loading, automatic plate unloading to platesetter or stacker; automatic plate rotation

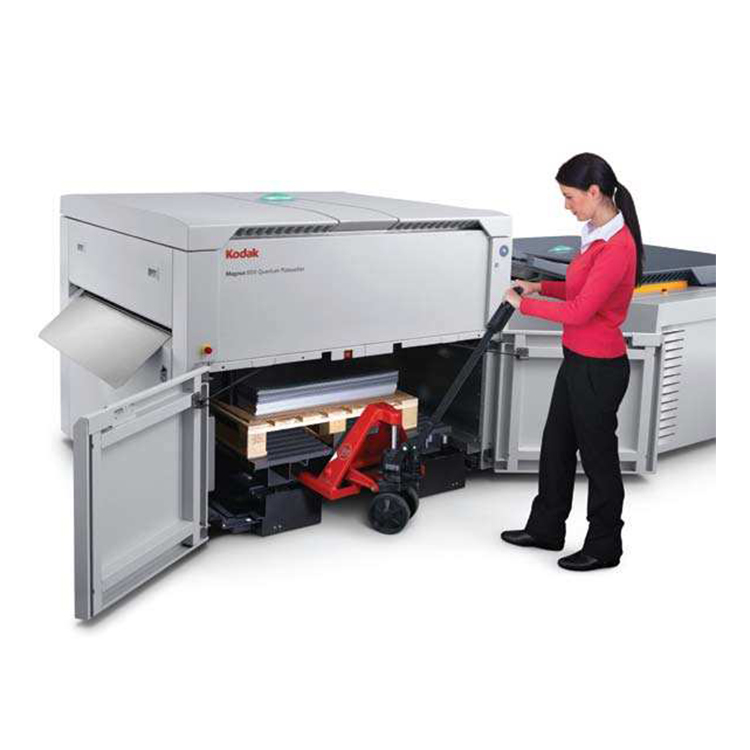

Autoloader (optional): automatic loading and unloading of up to 166 plates without slip pallets (0.3mm); automatic plate rotation
Single Cassette Unit (SCU) (optional): Automatic loading and unloading of up to 240 plates (0.3mm) with automatic liner removal; automatic plate rotation
Multi Cassette Unit (MCU) (optional): Automatically loads and unloads up to 960 plates (0.3 mm) in 4 cassettes, each containing up to 240 plates of the same size and thickness, with liner.
Automatic liner removal, optional automatic panning and dual large-sheet plate rotation.
Standard: 2 cassettes.
Optional: 4 total cartridges

Performance Specifications

For large paper sizes
320 x 700 mm

For panorama size
890×700 mm

Throughput at 1200 dpi^{1, 2}

Standard and automatic uninstallation:
S speed = 80 pph

Autoloader/SCU/MCU:
F speed = 110 pph
V speed = 150 pph

Standard and automatic uninstallation:
S speed = 39 pph

Autoloader/SCU/MCU:
F speed = 63 pph
V speed = 71 pph

repeatability

± 10 microns between two consecutive exposures on the same plate left on the drum

accuracy

± 40 microns error between 2 plates imaged by different TRENDSETTER platesetters

workflow connection

Standard KODAK print console with TIFF download software; connects to KODAK PRINERGY Workflow and most third-party workflow systems. JDF/JMF connectivity option enables features in Print Console software to provide job and device status The optional Kodak Mobile CTP Control application lets you monitor CTP devices from your mobile device.

Imaging specifications

solve

1200dpi standard

Optional: 1270 dpi

Optional: 2400 or 2540 dpi commercial option (not available with V-speed)

filter

· 200 lpi standard, or 450 lpi commercial option

Optional: 36 micron KODAK STACCATO screening, or commercial option 25 micron or 20 micron STACCATO screening

Maximum sheet size:
around the drum x³

· Single-width (jumbo): 700 x 450 mm

· Double width (panorama): 700 x 985 mm

2L option: 838 x 1,118mm

Minimum sheet size:
around the drum x along the drum³

standard:

· Single width: 267 x 215mm

· Double width: 267 x 451 mm

Autounload, Autoloader, SCU, MCU:

· Single width: 330 x 270 mm⁴

· Double width: 330 x 451 mm⁴

· Manual loading and unloading: 305 x 215 mm

Maximum Image Area:
around the drum x

700 x 985mm (827.9 x 1,118mm with 2L option)

physical properties

Dimensions (HxWxD) / Weight

· Standard: 160 x 200 x 120 cm / 650 kg

· Automatic unloading: 170 x 200 x 127 cm / 762 kg

· Autoloader: 184 x 200 x 127 cm / 796 kg

· SCU: 186 x 233 x 231 cm / 1,158 kg

· MCU: 191 x 233 x 254 cm / 1,837 kg

For long unloading table with plate swivel option: the height becomes 210 cm and the depth increases by 53 cm. Weight gain of 10 kg.

¹Imaging speed and throughput depend on media sensitivity. All values ​​are for a media sensitivity of 75 mJ/cm²

²Job queuing delays, raster file formats, raster file operations, plate processor transport speeds, plate exposure requirements, and plate placement in the load zone can reduce productivity.

³The support plate gauge is 0.20 to 0.30 mm. For more information, please consult your Kodak representative.

⁴Minimum plate size is 383 mm around the cylinder when using the plate rotation option and 305 x 215 mm for manual bypass.

This platesetter is a Class 1 laser product and is fully compliant with EN60825-1 and 21 CFR 1040.10 - CDRH.
