Photopolymer flexo resin plate washing machine for offset printing Flexographic rubber plate making machine

Supplier: Zhengzhou Jinhe Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Esther Zhou
Price: $1450.00 / 1 - 2 sets
$1400.00 / 3 - 4 sets
$1350.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Mechanical test report:	if	Place of origin:	Henan, China
brand:	Gold River	Health status:	new
Main selling points:	Flexible manufacturing	application:	plate making
Function:	Plate processing machine	weight:	65kg
Plate thickness:	2.8, 3.94mm	Applicable plates:	Rubber board resin board
Voltage:	220V	Core component warranty:	6 months
Showroom location:	not any	Packaging details:	The machine will be packed in standard export plywood
type:	Edition exposure	Automatic level:	Semi-automatic
product name:	Flexo plate making machine	Core components:	engine
Marketing type:	Popular products	Key words:	Polymer plate making machine flexographic plate
Key words:	Offset plate making machine	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Video outbound inspection:	if	Applicable industries:	Printing shop, advertising agency, others
Supply capacity:	50 sets per month	Related machines:	Woven bag printing machine
Name:	Rubber flexo plate making machine	Dimensions (lengthwidthheight):	7205501010mm
Warranty:	1 year	After-sales service provided:	Online support

Product Description

feature:
1. Multi-function machine for exposure, plate washing, drying and glue removal 2. Microprocessing central control panel, easy to operate 3. Philips UV lamp, professional electronic ballast 4. Powerful vacuum device, high-strength exhaust plate 5 . Constant temperature drying of circulating hot air, safe and in compliance with plate making requirements 6. High-precision plate graphics reproduction, stable work

Model	JH RZ4532	Jinhua RZ4560	Jinhua RZ9060	Jinhua RZ1280
Exposure size(mm)	450*320	450*600	900*600	1200*800
Voltage	220v, single phase, 50/60hz
strength	1.4kW	2kW	4kW	4.8kW
aspect	620450950mm	7506501050mm	10808701100mm	138010001100mm
Machine weight	65kg	115kg	185kg	235kg
Package Size	7205501010mm	8507751200mm	11809901250mm	148011301250mm

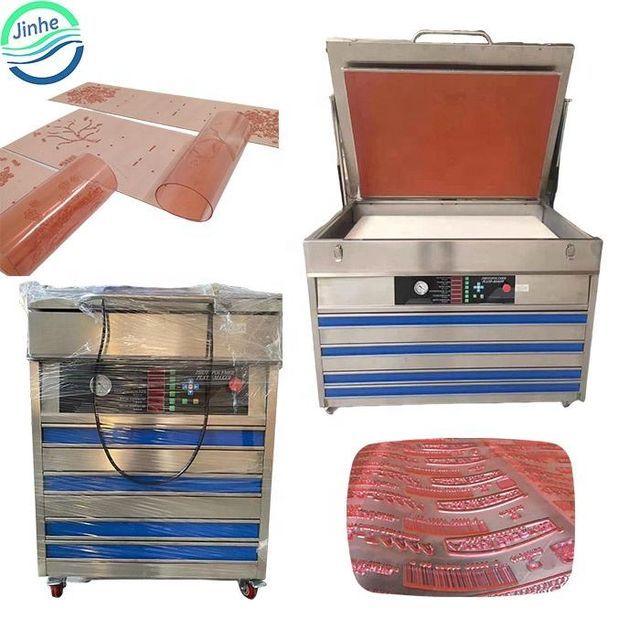

detailed picture

Flexible printed resin board:

The thickness of two common flexible printing resin boards is 2.28mm and 3.94mm, which can be used to print paper bags, kraft paper bags, pizza boxes, corrugated paper, woven bags, etc.
